In this article, we will discuss the different finishing systems (siding/cladding) that can be used in Sto’s EIFS systems.
Exterior Insulation Finishing Systems (EIFSs) provide an insulated, finished surface that creates exterior walls with superior moisture and temperature control performance over other cladding products like brick, stucco, and cement fiberboard siding.
Simple-to-install, EIFS siding applies in multiple layers over an exterior sheathing to produce an energy-efficient, low-maintenance, fire-resistance, beautiful, and versatile exterior cladding. The typical layers (components) of EIFS include:
- An air and water-resistive barrier over the substrate that stops air leaks and moisture from infiltrating the system.
- Expanded polystyrene (EPS), extruded polystyrene (XPS), or mineral wool layers that add insulation and enhance energy efficiency.
- A layer of fiberglass mesh that adds crack-resistance and provides reinforcement. It also protects against crumbling and cracks due to thermal expansion, shifting foundations, and freeze/thaw cycles.
- A water-resistant base coat, embedded into the glass-fiber reinforcing mesh, applies insulation’s top, to provide a weather barrier.
- A finishing coat or cladding surface that creates the color, texture, and protective nature of the structures’ exterior surfaces.
Unlike some EIFS systems, StoTherm® ci Wall Systems Drainable EIFS provides a more modern approach to EIFS technology with drainage that helps to prevent moisture from entering the wall cavity.
All long-lasting EIFS types should provide straightforward application and offer impact and condensation resistance, excellent energy efficiency, and design flexibility.
Designing EIFSs with a high-impact mesh substantially improves their impact resistance.
EIFS insulation thickness should stop the interior air from reaching the dew point (the temperature that water vapor turns to water), in order to minimize condensation within the wall system.
Preventing water intrusion to the wall system must include proper installation of quality sealants.
All EIFS provide continuous insulation (CI) which lessens energy use, saves money, and meets today’s energy codes.

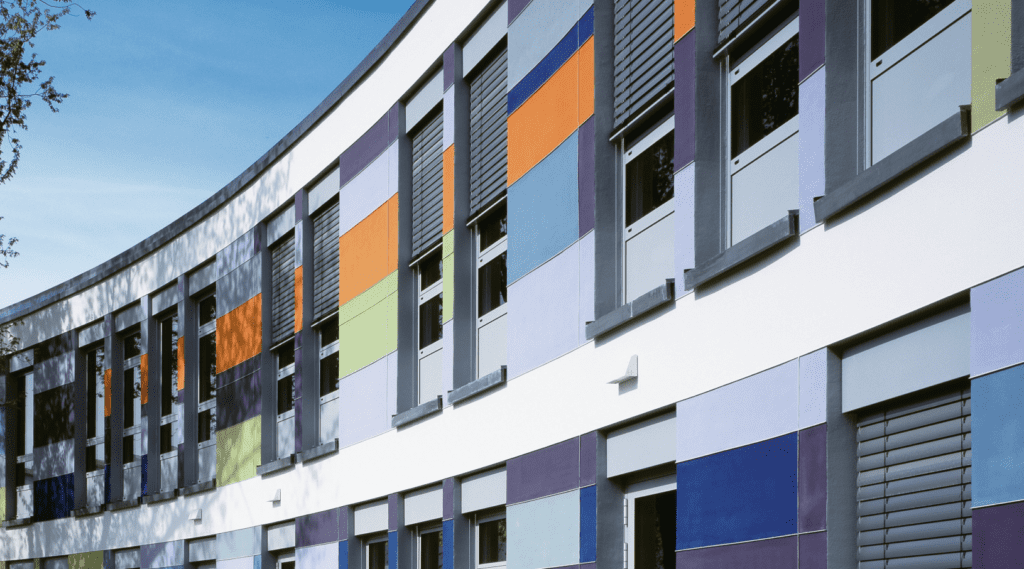

EIFS allows you to customize the aesthetic of the cladding system to fit the needs of your project.
A Modern Approach to the EIFS Technology Drainable StoTherm® ci Wall Systems EIFS
The International Building Code and ASTM International define traditional EIFS as a non-load bearing, exterior wall cladding system with an insulation board attached either adhesively or mechanically to the substrate, a reinforced base coat, and a textured protective finish coat.
StoTherm® ci Wall Systems Drainable EIFS improves on traditional EIFS technology by adding drainage to their wall systems. Our systems also include continuous insulation (ci), air and water-resistive barrier, and many performative aesthetics to create a sustainable, high-quality wall cladding. The durable and unique system sustains its curb appeal and saves money through lower energy bills.
Sto offers several StoTherm ci Systems, including four StoTherm ci Hurricane Impact Systems.
StoTherm® ci XPS
Long-lasting and high-performing StoTherm® ci XPS incorporates high R-value extruded polystyrene insulation into the wall system and StoGuard® air and water-resistive barrier, ensuring durability and thermal efficiency.
StoTherm ci MVES
Builders can use StoTherm ci MVES (masonry veneer engineered system) system with masonry veneer, ceramic tile, natural stone, or manufactured stone as a facade finish to acheive masonry aesthetics while meeting applicable building code requirements.
Lightweight StoTherm® ci combines the StoTherm® and the StoGuard® air and water-resistive barrier systems to improve energy efficiency and protect against moisture intrusion.
StoTherm® ci Mineral
The StoTherm® ci Mineral System incorporates non-combustible, mineral wool exterior insulation and continuous air and water-resistive barrier with Sto’s high-performance finishes to produce an advanced high-performance cladding system.
StoTherm® ci HI-CM 180
High-performing, hurricane-resistant, and energy-efficient, StoTherm® ci HI-LM CMU 180 provides a CI wall cladding by combining several components to enhance its performance over concrete masonry substrates: StoGuard® air and waterproof barrier, StoTherm® insulated cladding, and drainage capabilities. Additionally, StoTherm® ci HI-CM 180’s engineering satisfies the testing requirements for small and large missile impacts.
StoTherm® ci 1177 -SM
High-performing StoTherm® ci 1177-SM exterior wall cladding systems combine a seamless air and water-resistive barrier with advanced drainage capabilities compared to glass mat gypsum sheathing. In addition, the engineering of StoTherm® ci 1177-SM complies with the testing requirements for small missile impacts.
StoTherm® ci 1177 -LM
High-performing StoTherm® ci 1177-LM exterior wall cladding system combines seamless air and water-resistive barrier with CI, advanced drainage capabilities, and Sto Armor Mat XX Mesh for added impact resistance and reinforcement compared to glass mat gypsum sheathing. The engineering of StoTherm® ci 1177-LM achieves the testing requirements for large and small missile impact performance on 16-gauge steel studs with gypsum sheathing.

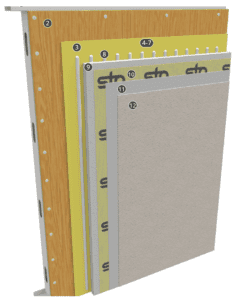

StoTherm® ci HI-PLY
High-performing StoTherm® ci HI-PLY exterior wall cladding systems integrate seamless air and water-resistive barrier with CI and advanced drainage capabilities for use with CDX exterior plywood sheathing. The engineering of StoTherm® ci HI-Ply also meets the testing requirements for large and small missile impacts.

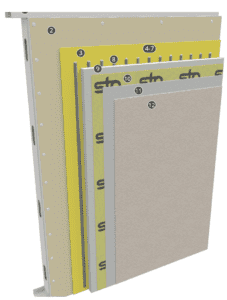

Why Choose StoTherm ci EIFS Systems?
StoTherm ci Systems advanced integrated wall assemblies combine aesthetic and protective components into high-performing wall cladding, that features:
StoTherm® ci Cladding Systems
StoTherm® ci combines drainage, CI, air and water-resistive barrier, and endless choices of textured finishes and surfaces to produce a sustainable, high-quality wall cladding. The durable system maintains its attractive curb appeal and saves money through reduced energy bills. Sto offers eight StoTherm ci Systems, including four StoTherm ci Hurricane Impact Systems.

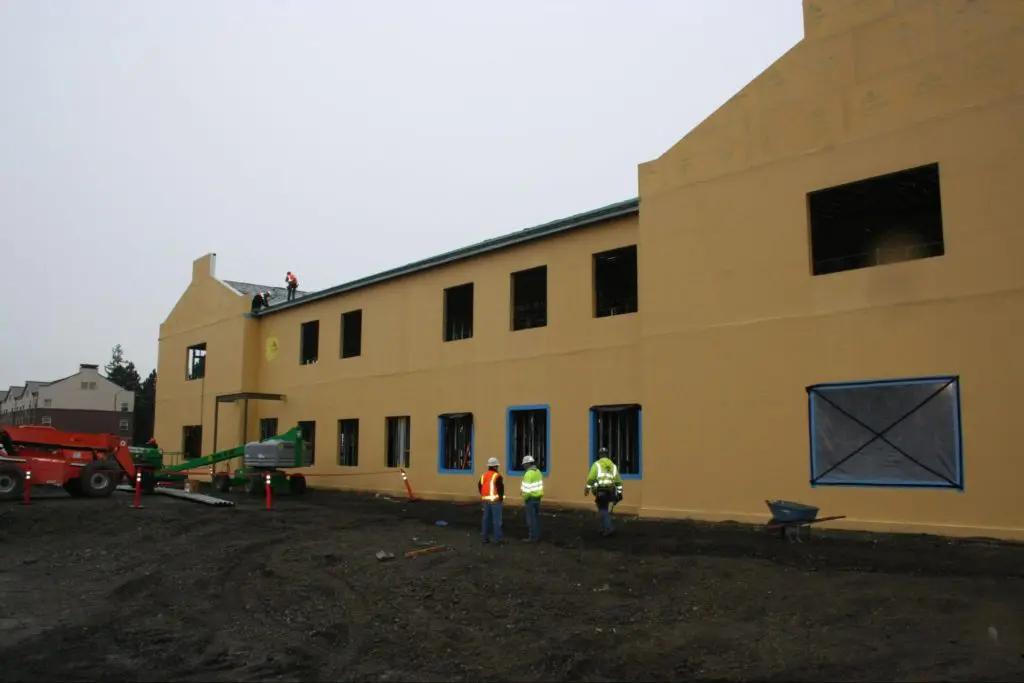

StoGuard® Fluid-applied air and water-resistive barrier
StoGuard®’s fully-adhered seamless monolithic exterior wall air and water-resistive barrier system protects against unwanted air movement and moisture infiltration – ideal for all types of construction. You can apply StoGuard® with airless spray or a roller, which speeds up the application and simplifies integration with other wall system components.

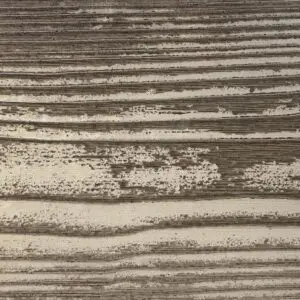

Sto Textured Finishes
Sto Performative Aesthetics provide architects with complete design freedom with an expansive selection of finishes in endless textures and color options. We manufacture durable Sto finishes to the highest quality standards to resist dirt and water in order to protect your home or building while providing long-lasting curb appeal.
Sto Offers the Best EIFS Siding Options
StoTherm ci Systems checks all the boxes for a high-quality EIFS siding option – excellent moisture management, durability, low maintenance, the energy efficiency of the StoGuard® air and water-resistive barrier system, and comprehensive design options.
Learn more about EIFS siding options within our selection of inspirational case studies and don’t hesitate to contact one of our knowledgeable representatives today.
