StoTherm^® ci MVES

StoTherm ci MVES is an engineered insulating wall system with Adhered Masonry Veneer (AMV) – thin brick, natural stone, ceramic tile, or cultured stone. It combines superior air and weather tightness with excellent thermal performance and durability. It incorporates continuous exterior insulation and a continuous air/moisture barrier with Sto high strength masonry veneer adhesive.

Downloads

System Bulletin

StoTherm ci MVES (5700)pdf

Specifications

Code & Test Reports

NFPA 285 Wall System Compliance Directorypdf

System information:

Download allZIP

Components
Details
Brochures / Case Studies

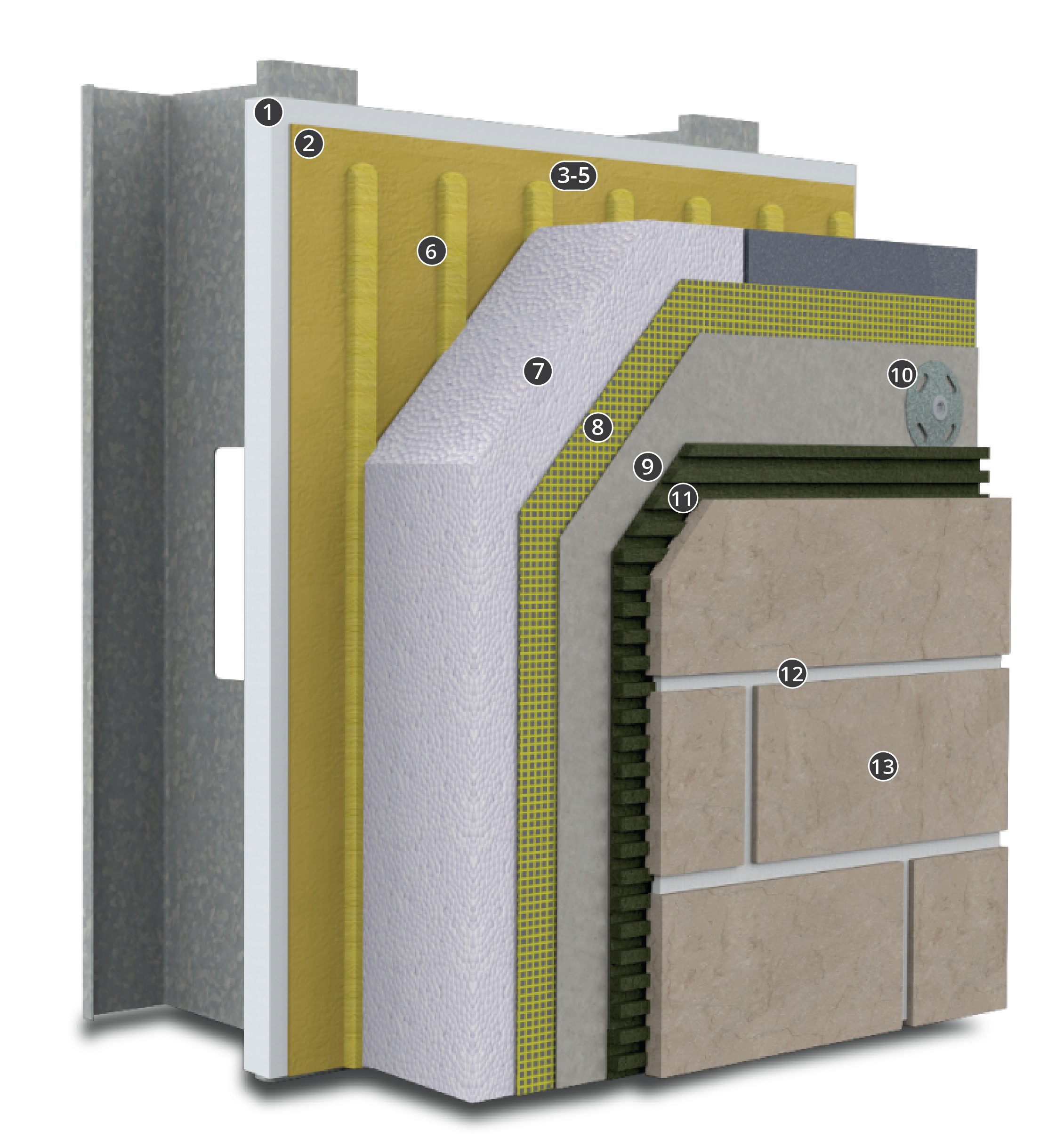

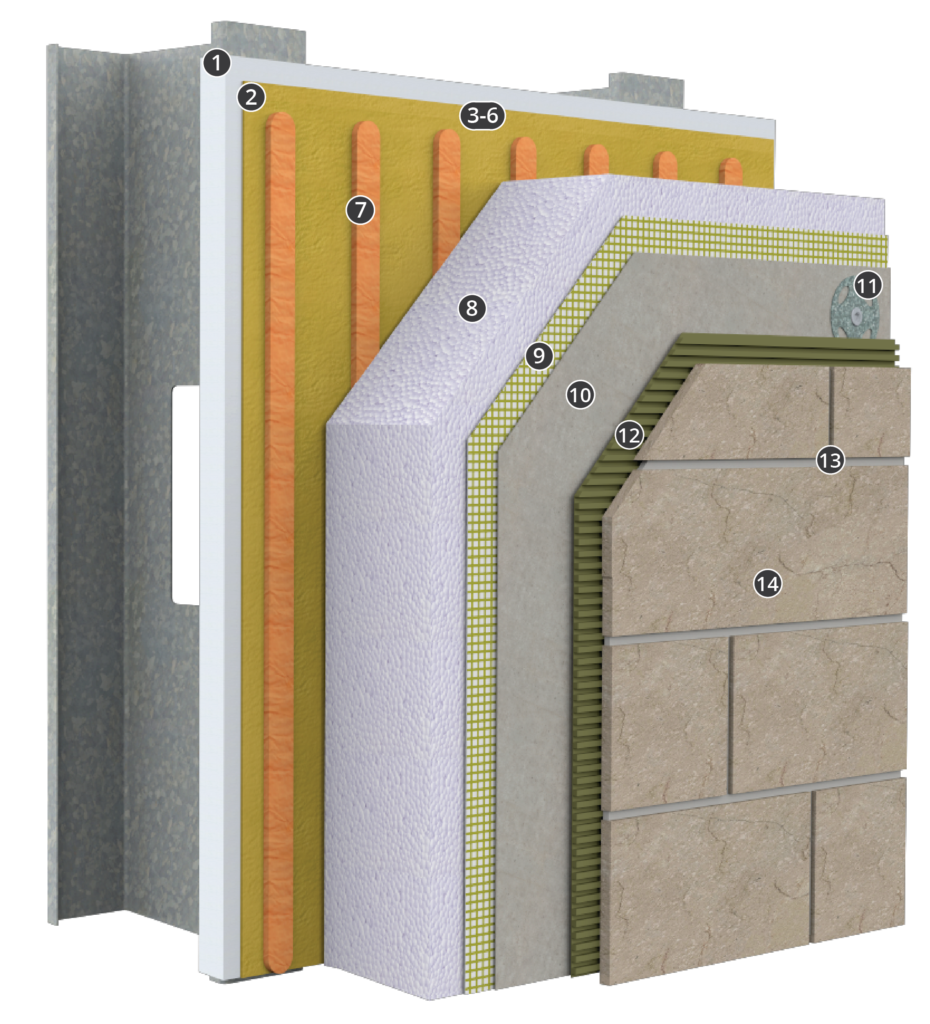

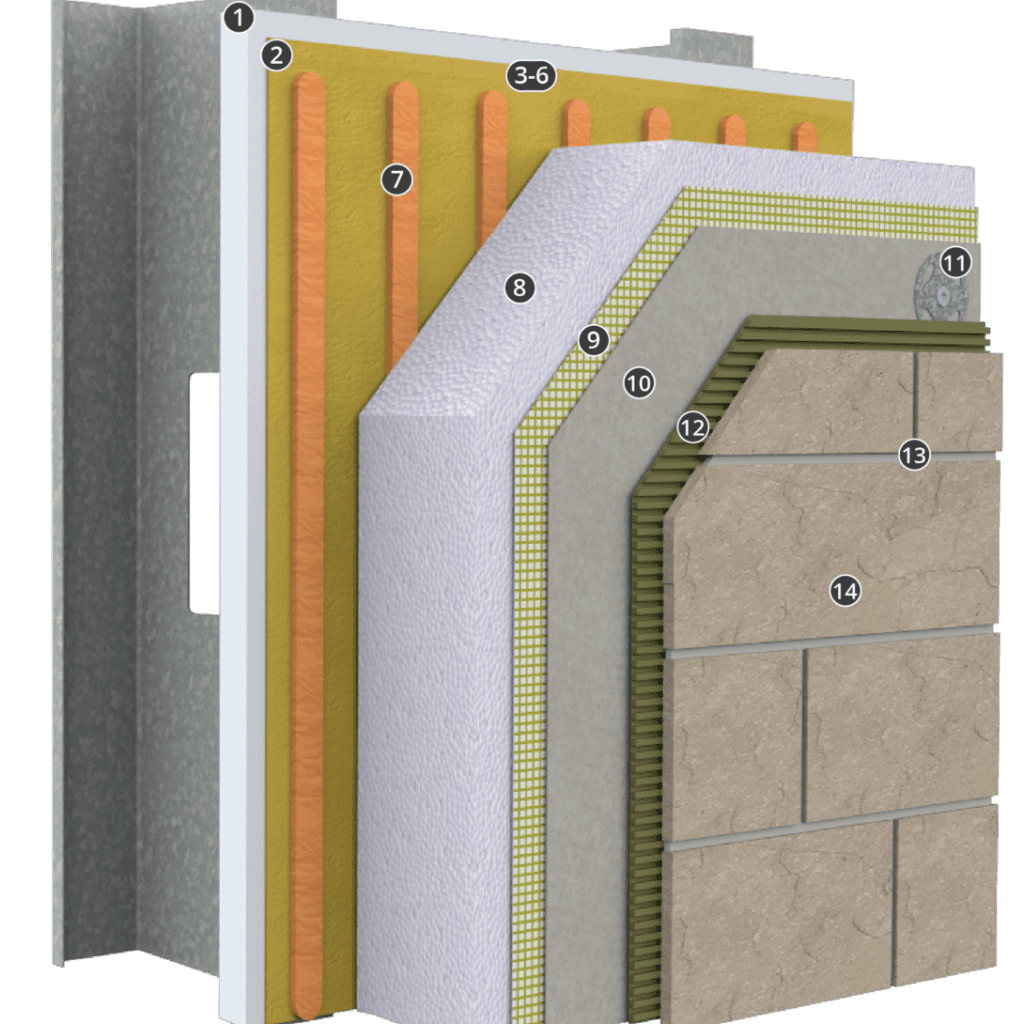

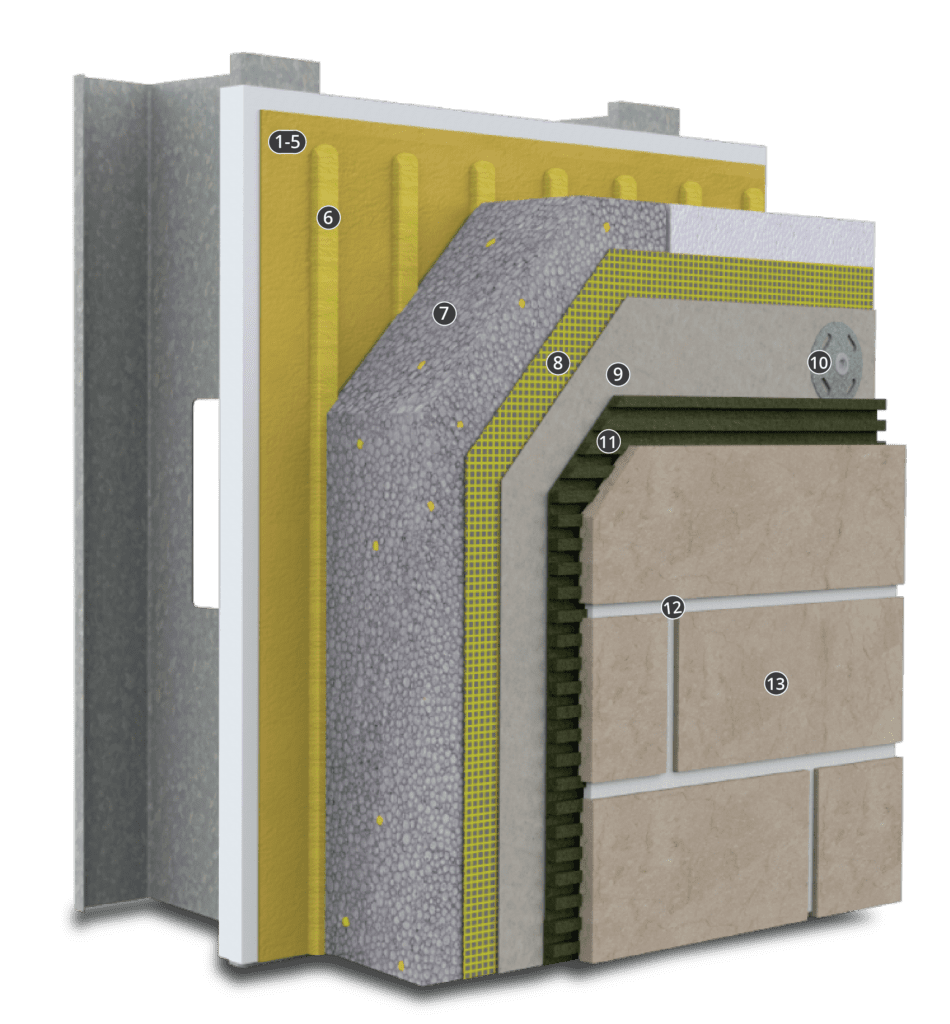

1 Structural Wall Assembly

2 Air & Moisture Barrier - Wall Membrane: Sto Gold Coat

Bulletin SDS PDF

3 Air & Moisture Barrier - Sheathing Joints & Corners: Sto RapidGuard™

Bulletin SDS PDF

Alternatives

4 Air & Moisture Barrier - Rough Opening Protection: Sto RapidGuard™

Bulletin SDS PDF

Alternatives

5 Air & Moisture Barrier - Flashing and Penetration: Sto RapidGuard™

Bulletin SDS PDF

Alternatives

6 Air & Moisture Barrier - Dynamic Joints and Seams: StoGuard Transition Membrane

Bulletin PDF

7 Adhesive: Sto TurboStick

Bulletin SDS PDF

Alternatives

8 Insulation: Sto EPS Insulation Board

Bulletin SDS PDF

9 Mesh: Sto 6 oz. Mesh

Bulletin SDS PDF

10 Basecoat: Sto Primer/Adhesive

Bulletin SDS PDF

11 Attachment: Fastener by others

12 Masonry Veneer Adhesive:: StoColl KM

Bulletin SDS PDF

13 Masonry Veneer Grout

14 Masonry Veneer

57s.xx Series

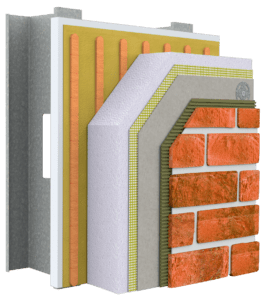

StoTherm ci MVES is a lightweight engineered insulating wall system with Adhered Masonry Veneer (AMV) – thin brick, natural stone, ceramic tile, or cultured stone. It combines superior air and weather tightness with excellent thermal performance and durability. It incorporates continuous exterior insulation and a continuous air/moisture barrier with Sto high strength masonry veneer adhesive.

Series Booklet Download All (.zip)

See detail series
