EIFS with Drainage
StoTherm® ci Wall Systems
StoTherm® ci Systems integrate the following key elements – continuous insulation (ci), air and water-resistive barrier, drainage and a variety of textured finish options to create a superior, sustainable wall cladding. This high-performing, eye-catching system saves energy and stays attractive for years. StoTherm® ci improves indoor comfort and air quality while maintaining maximum curb appeal and lowering overall life-cycle costs.

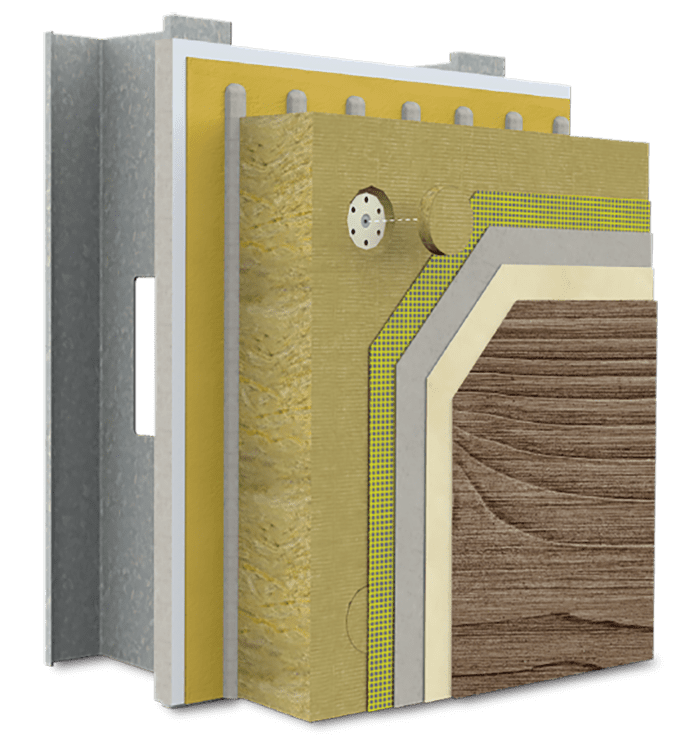

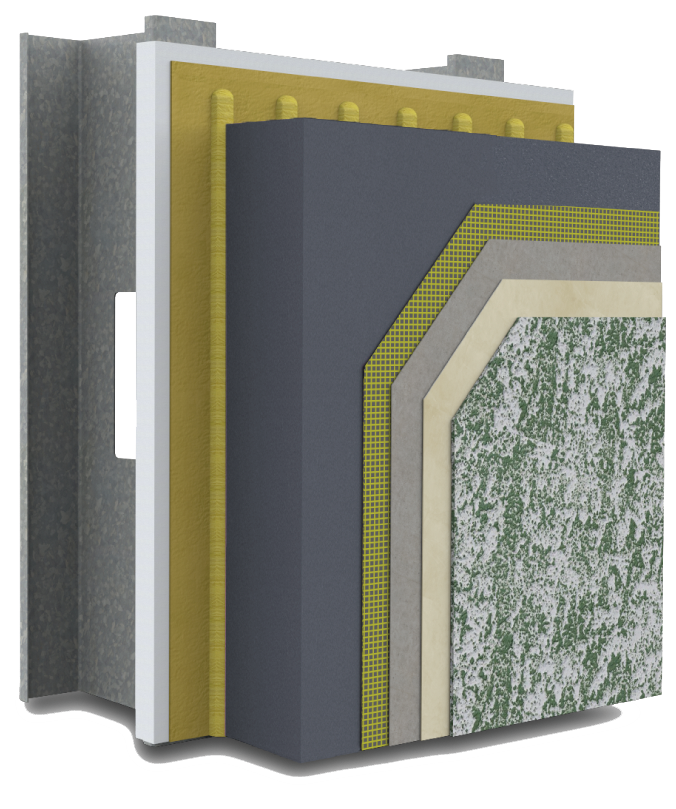

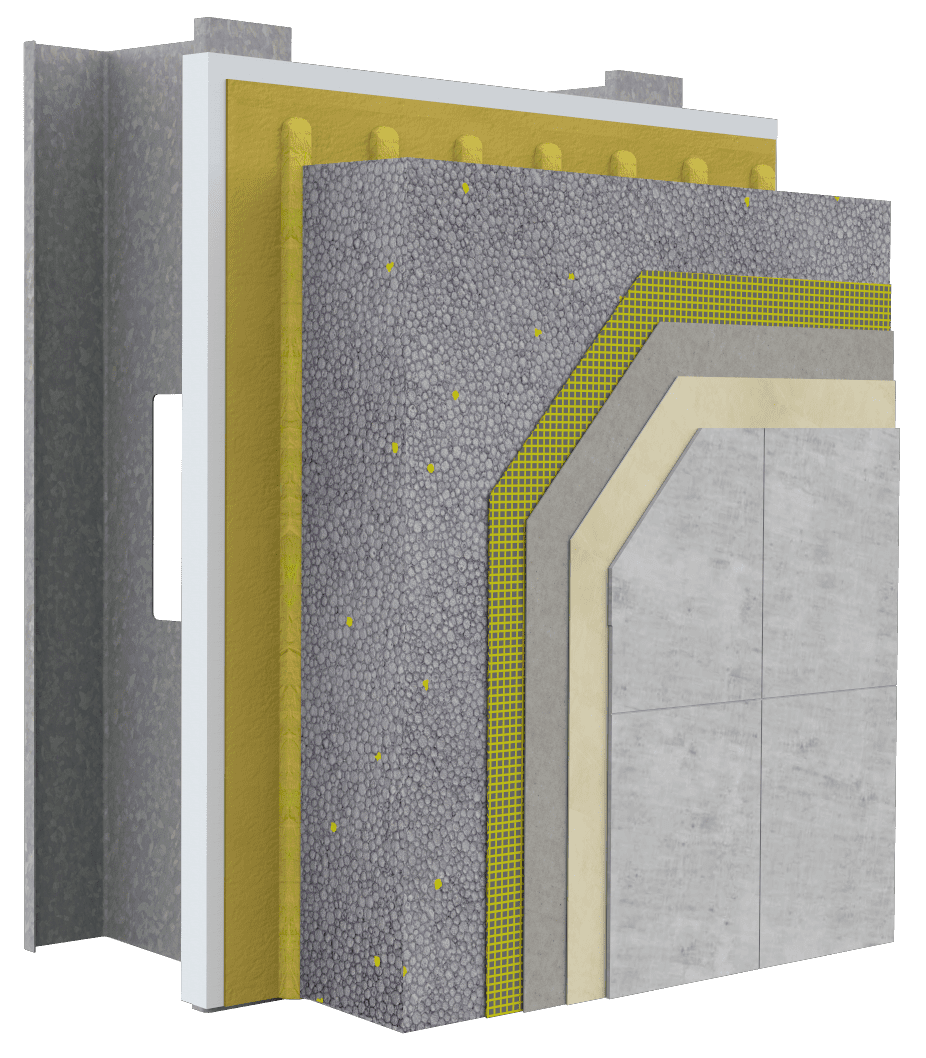

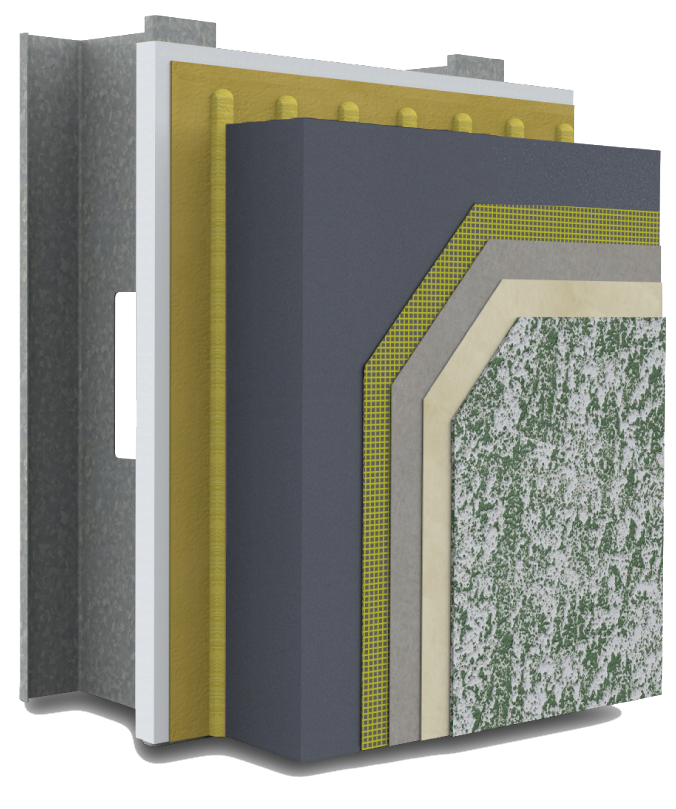

System options include a variety of insulation – GPS, mineral wool, XPS and EPS, and Sto Strike Defense. This additional fortification layer provides outstanding impact and puncture resistance from blunt and sharp objects and mitigates damages from woodpeckers.

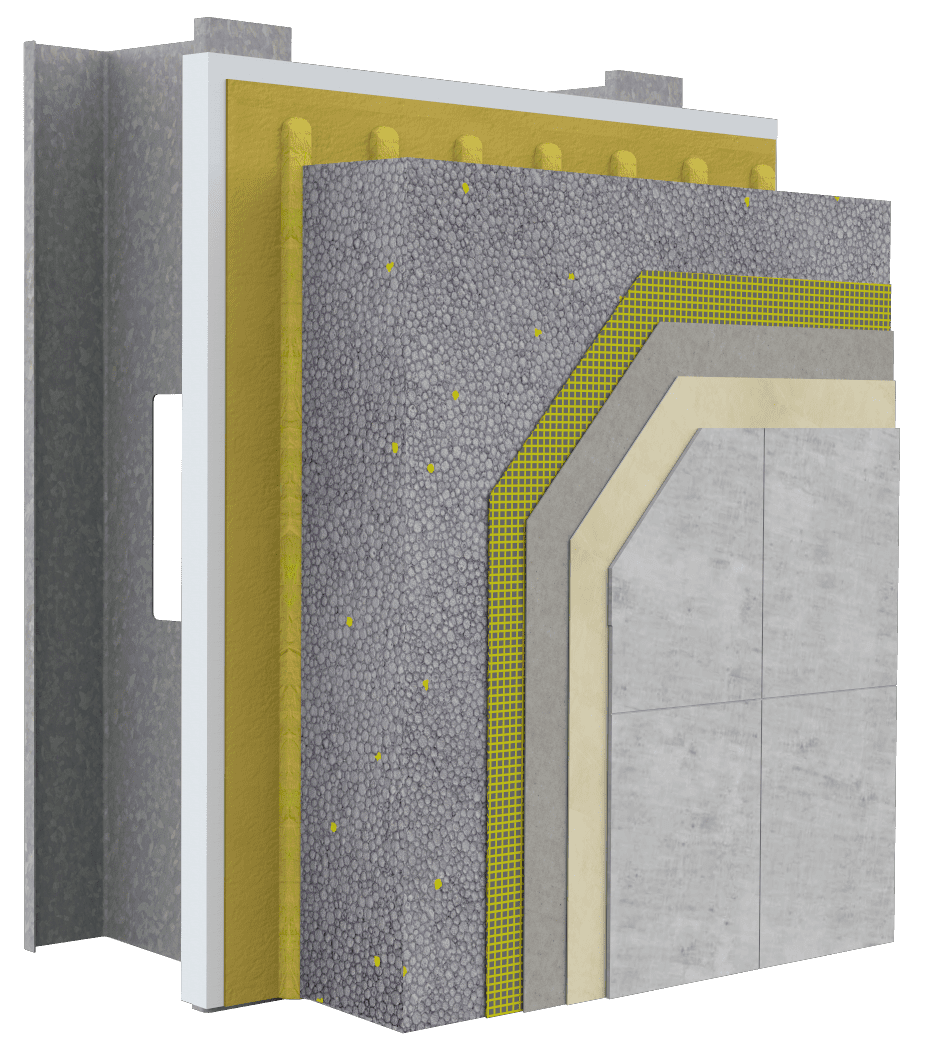

StoTherm ci GPS and StoTherm ci systems also offer Sto Fireblocking (patent pending) that complies with the 2022 NYC Building Code.
Our StoTherm ci Systems
Our StoTherm ci systems with Sto Fireblocking

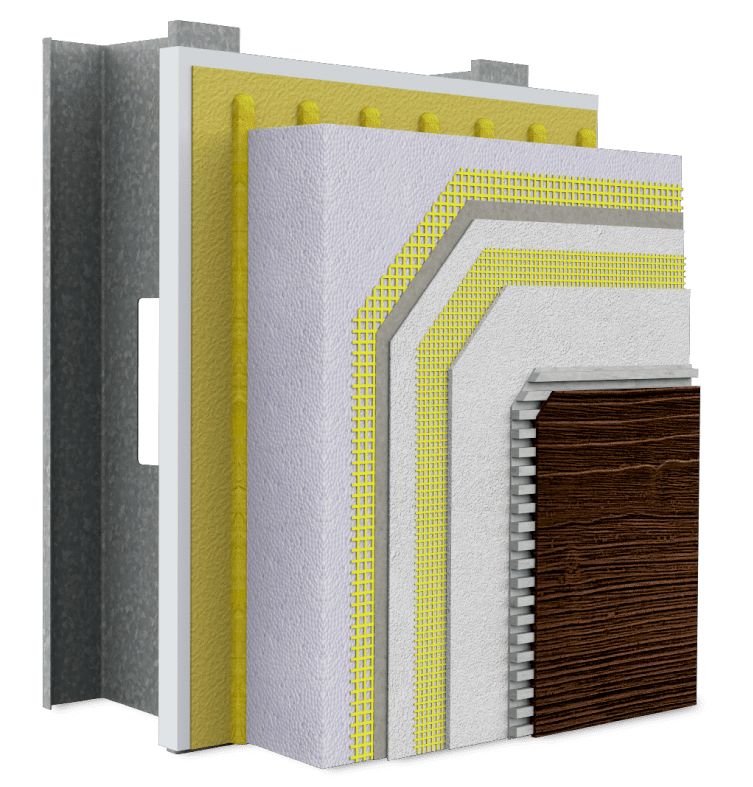

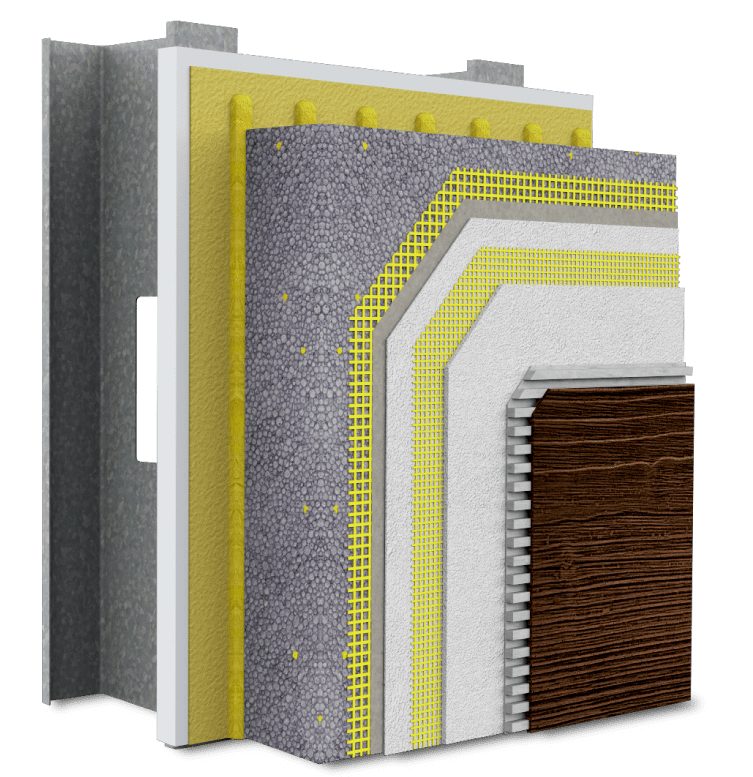

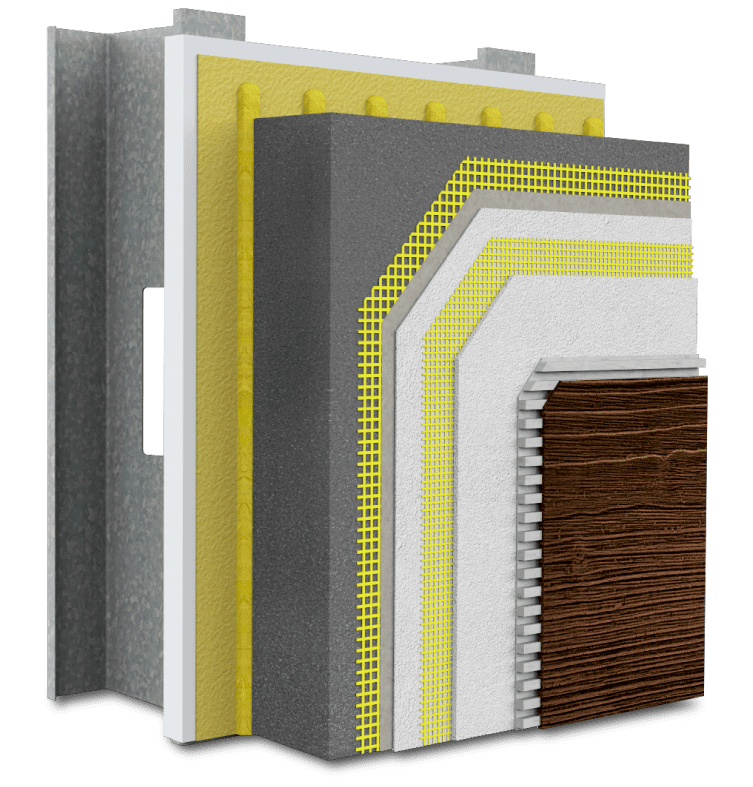

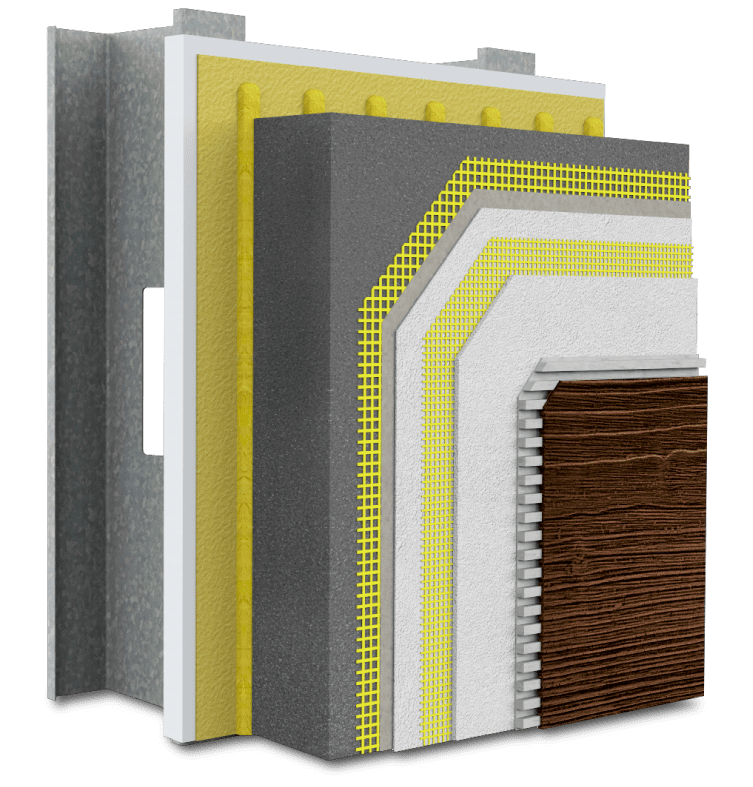

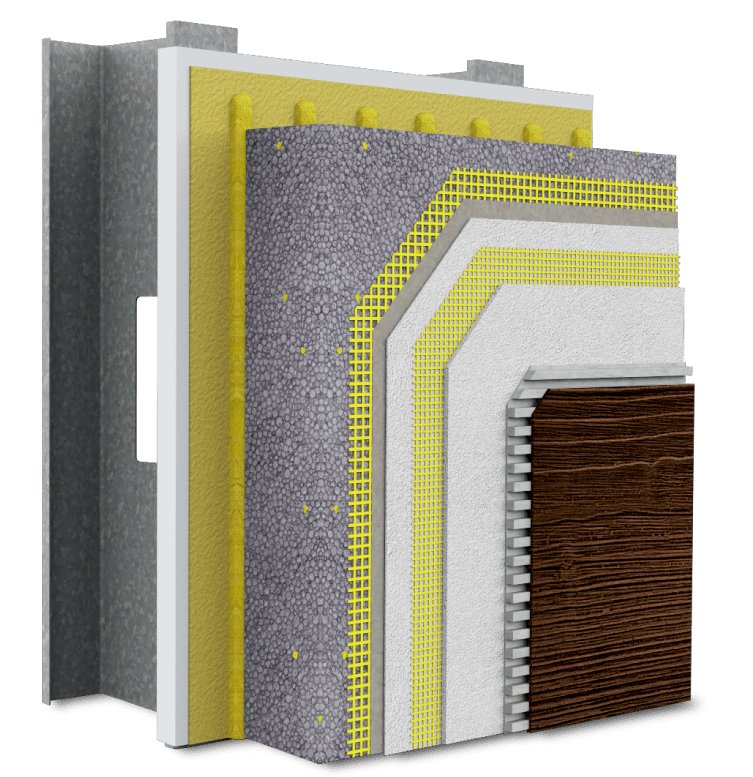

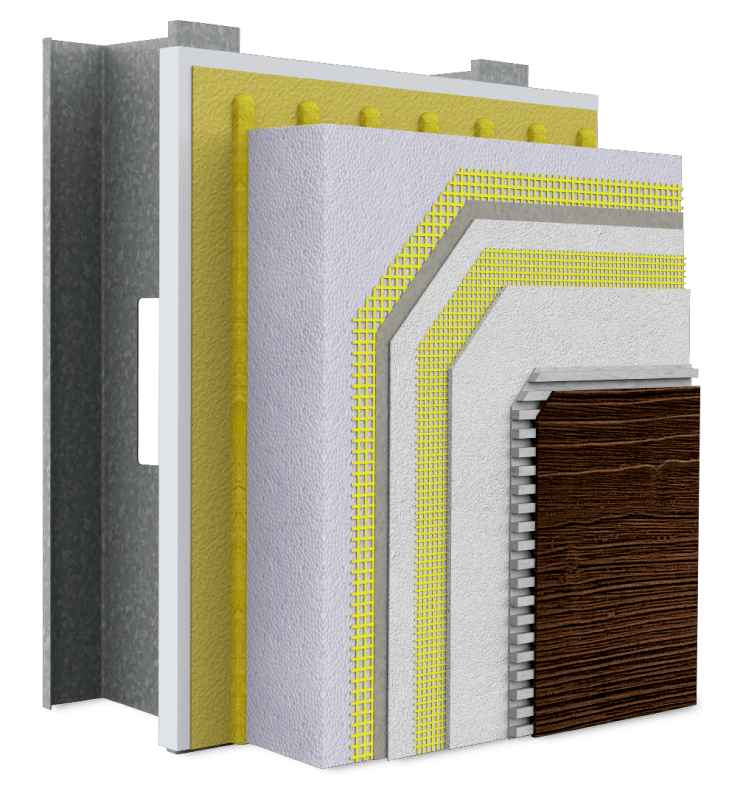

Our StoTherm ci systems with Sto Strike Defense

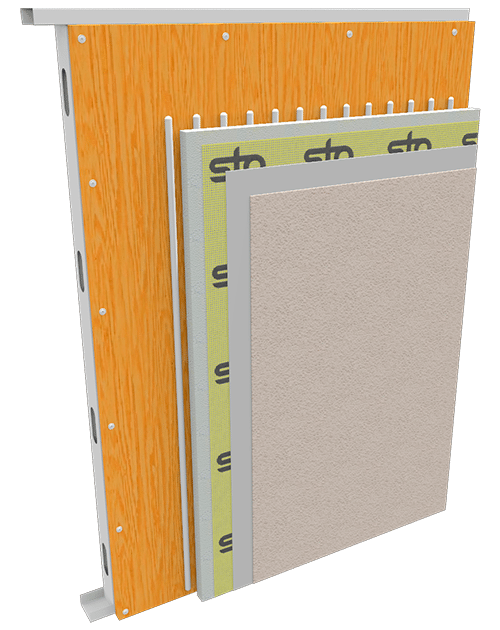

Our StoTherm ci HVHZ Systems
Resource Links
StoTherm ci Systems with Sto Fireblocking
Our StoTherm ci systems with Sto Strike Defense
StoTherm ci HVHZ Systems

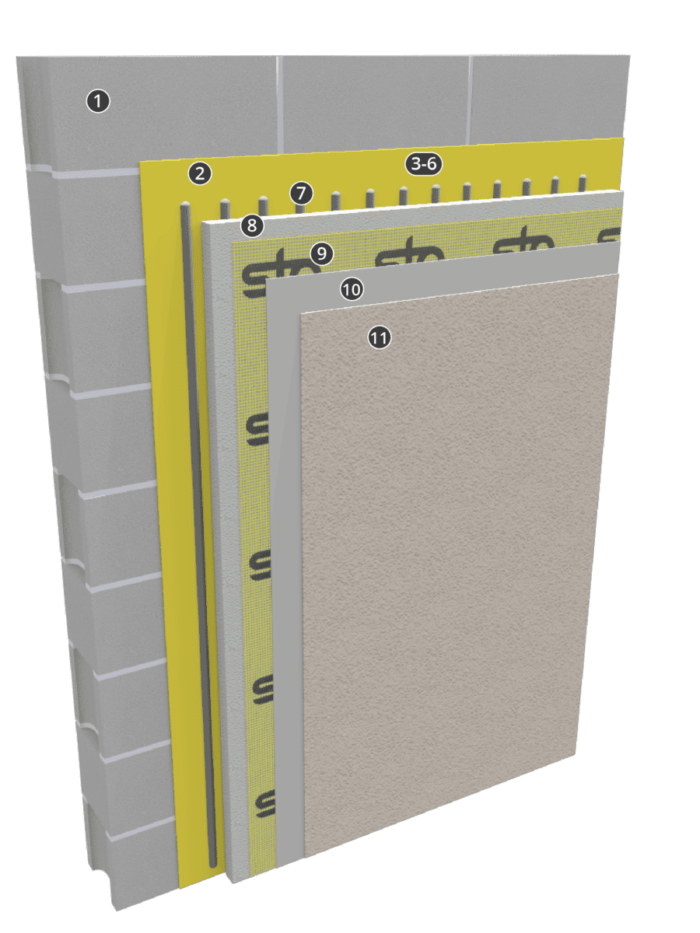

StoTherm ci GMG – SM
Small missile impact continuous insulation wall system over gypsum mat sheathing
FEATURES
| MAXIMUM DESIGN PRESSURE, PSF: | +/- 150 National Gypsum eXP +/- 140 USG Securock +/- 120 CertainTeed GlasRoc |
| SUBSTRATE TYPE: | Glass Mat Gypsum |
| Steel stud/track gauge | 16 Gauge |
| Construction Type | – Field applied – Prefab (StoPanel) |
StoTherm ci GMG – LM/SM
Large and small missile impact continuous insulation wall system over gypsum mat sheathing
FEATURES
| MAXIMUM DESIGN PRESSURE, PSF: | LM/SM +/- 150 GP DensGlass LM +/- 140 USG Securock Ultralight SM +/- 120 USG Securock Ultralight |
| SUBSTRATE TYPE: | Glass Mat Gypsum |
| Steel stud/track gauge | 18 Gauge |
| Construction Type | – Field applied – Prefab (StoPanel) |

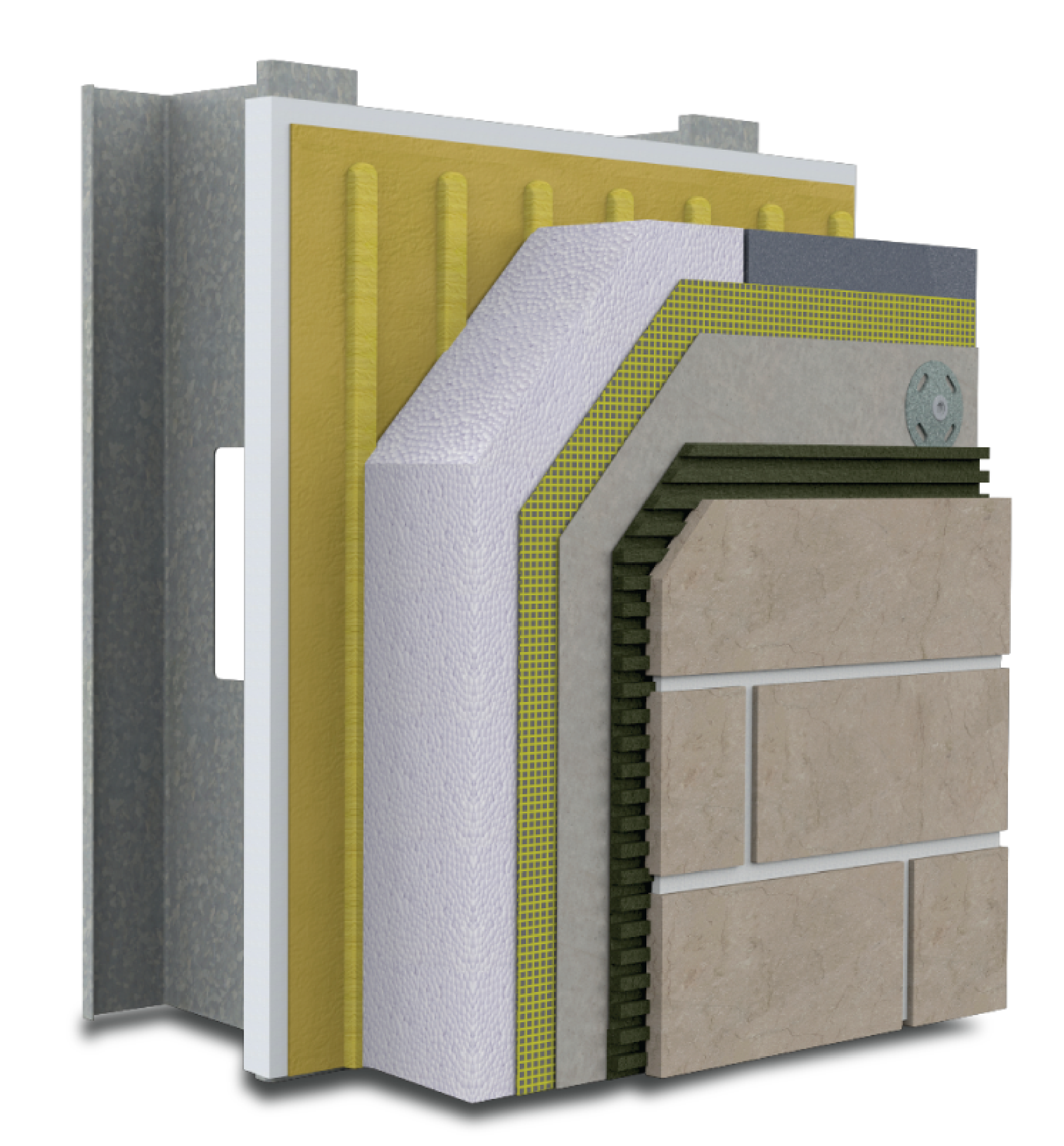

StoTherm ci MVES GMG – SM
Small missile impact continuous insulation wall system over gypsum mat sheathing with masonry veneer
FEATURES
| MAXIMUM DESIGN PRESSURE, PSF: | ‘+/- 112 National Gypsum eXP |
| SUBSTRATE TYPE: | Glass Mat Gypsum |
| Steel stud/track gauge | 18 Gauge |
| Construction Type | – Field applied – Prefab (StoPanel) |
StoTherm ci StoCast GMG-LM
Large missile impact continuous insulation wall system over gypsum mat sheathing with StoCast Wood
FEATURES
| MAXIMUM DESIGN PRESSURE, PSF: | +/- 105 National Gypsum eXP |
| SUBSTRATE TYPE: | Glass Mat Gypsum |
| Steel stud/track gauge | 18 Gauge |
| Construction Type | – Field applied – Prefab (StoPanel) |
