Prefabricated Finished Exterior Wall Panels

Sto Panel Technology

Sto Panel Technology provides the construction industry with a smarter form of wall design and construction through partnerships forged between leading contractors, fabricators, and Sto Corp. – the world’s number one manufacturer of building envelope solutions.

By creating branded, tested proven and warranted prefabricated, finished wall panel designs, Sto Panel Technology offers owners, architects, GC’s/CM’s and design consultants a recognizable, high-quality standard for producing and installing the exterior walls of their buildings.

Frequently Asked Questions

Q: What’s included in a prefabricated finished exterior StoPanel wall?

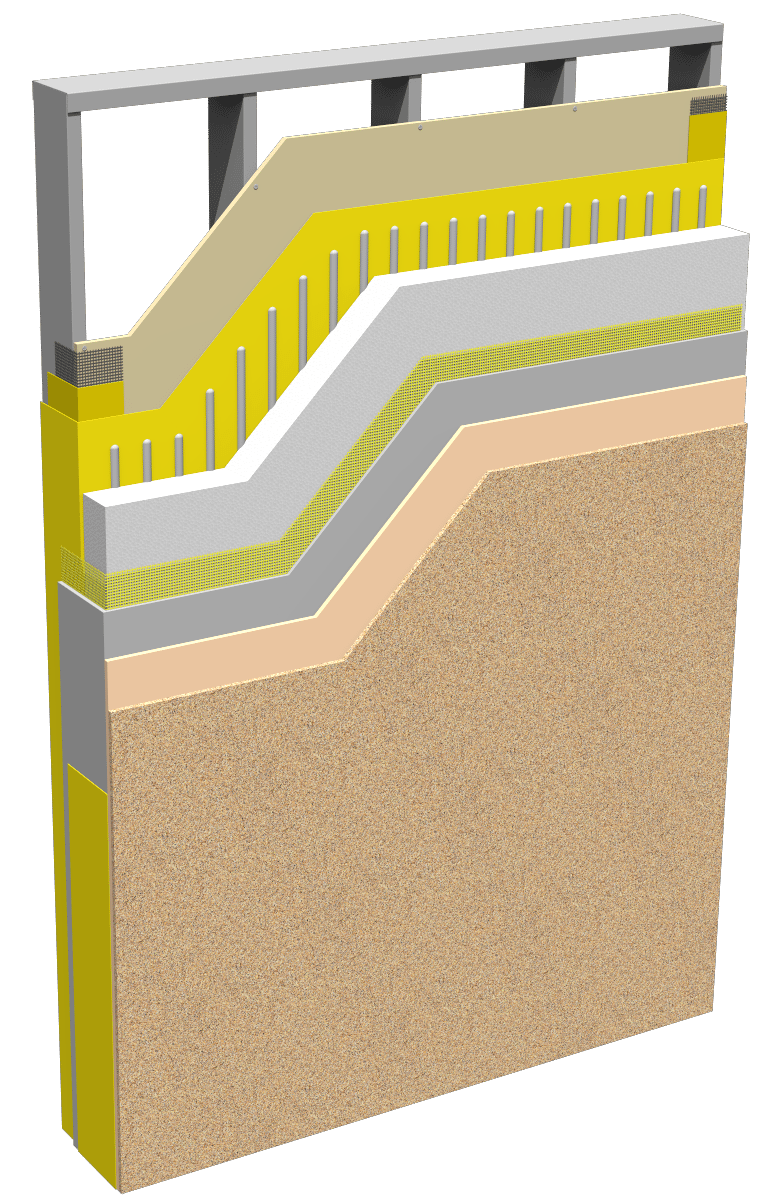

Everything. StoPanel® prefabricated exterior walls consist of cold formed metal framing and all other components in a specified wall assembly, including sheathing, air and moisture barrier, continuous insulation (ci), sub-framing (if applicable), and facade aesthetic.

Q: Where are Sto Panels fabricated?
At local StoPanel Affiliate manufacturing facilities. Click Here to reach out to a Sto Panel Technology specialist to find an affiliate near you.

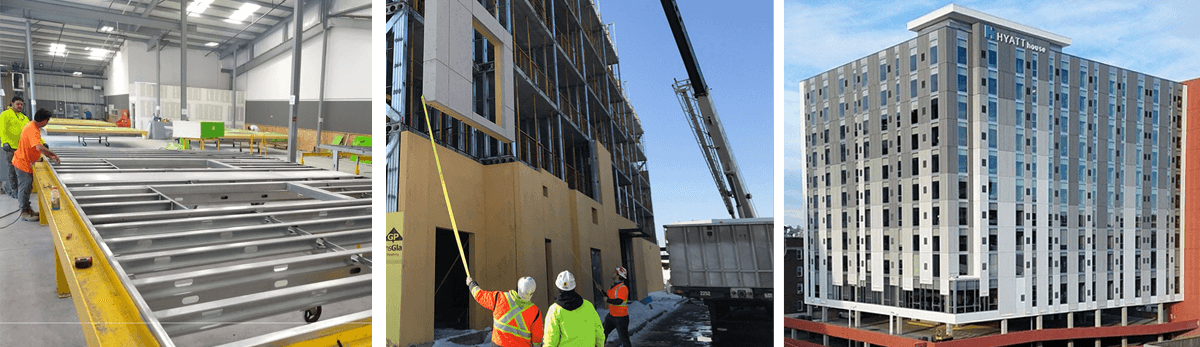

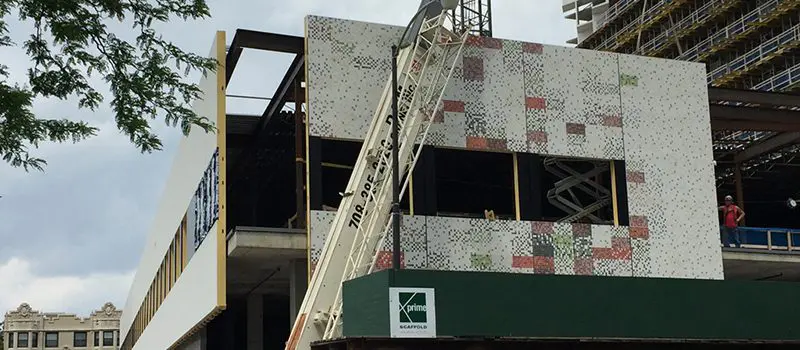

Q: How are the panels installed in the field?
With the use of on-site cranes.

Q: How are panels attached to the building?
Every panel is custom engineered, including connections, for its unique configuration, position, and the structural frame to which it must attach. Typically the panels are held about 1″ off the edge of the slab and are connected at every stud with custom designed steel plates, angles, or other prefabricated connectors as required to carry the design loads and to handle expected movement of the building frame.

Q: What Claddings can be applied over Sto Panels?
Various claddings such as: Continuous Insulation (ci) Systems, Brick, Metal and others. See all of the StoPanel systems here.

Q: Are there size limitations for various Sto Panels?
Yes, approximately 300 sf. per panel based upon specific project requirements.

Q: How is fire-stopping handled in panel wall design?
Based on ESR -1233, floor-line fire-stopping should be, as a minimum, 4 pcf. mineral wool insulation in each stud cavity and at each floor line, attached with z-clips or equivalent fasteners. The fire-stopping detail selected by the design professional should have a tested hourly rating to match that of the floor/ceiling assembly.

Q: How are the panel-to-panel joints addressed in the field?
A dual stage sealant joint is required and the sealant is typically installed in the field working off a swing stage.

Q: Does Sto Panel offer a drainage panel?
Yes, most StoPanel assemblies offer drainage as a standard component.

You can see all of the StoPanel systems here.

Q: Can Sto Panel be utilized in high velocity hurricane zones such as Miami-Dade County?
Yes, with using StoPanel Impact ci that meets both Large and Small Missile Impact Resistance requirements. See our StoPanel Impact ci system here for more information.

close
Frequently Asked Questions

Sto Panel Technology Simplifies the Construction Process

Project Constructability

Sto Panel Technology provides customized, project-specific constructability solutions that are not available anywhere else. Our broad offering of fully engineered and tested StoPanel prefabricated wall panels are manufactured in quality-controlled factories.  Design assist services and support allows for development of unique solutions to project-specific challenges, effectively managing cost, labor and schedule requirements while reducing risk and improving project outcomes.

Design Execution

Bring your design vision to life with thorough, proven, and engineered methods.  Sto Panel Technology offers a wide range of high-end aesthetic choices, a variety of code compliant energy saving wall systems, unique solutions to project constructability challenges, and a process that expedites the construction schedule, reduces waste and improves quality.

Investment Certainty

Sto Panel Technology delivers high quality systems that are durable, low maintenance, sustainable and aesthetically pleasing, and a manufacturing and installation process that provides schedule and cost certainty, helping you to maximize your investment, while reducing project risk.

Sto Panel Technology Features

Proven, Tested Systems

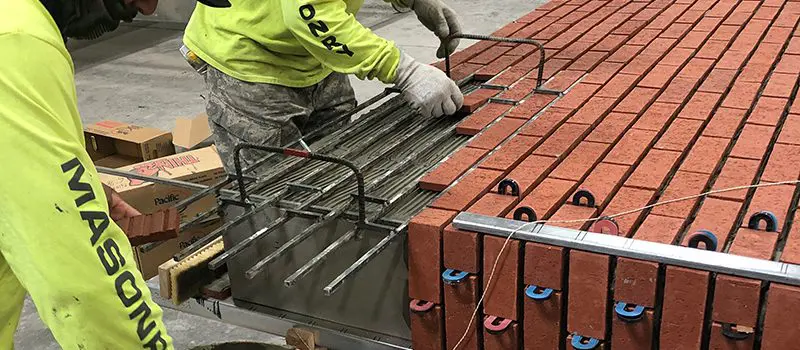

StoPanel systems are fully engineered, tested, code compliant prefabricated wall panels. They are available in a wide variety of aesthetic surface options, including brick, metal, natural stone and the most modern, light-weight energy-efficient coating systems.

Click Here to view our Sto Panel Technology Systems.

National Network

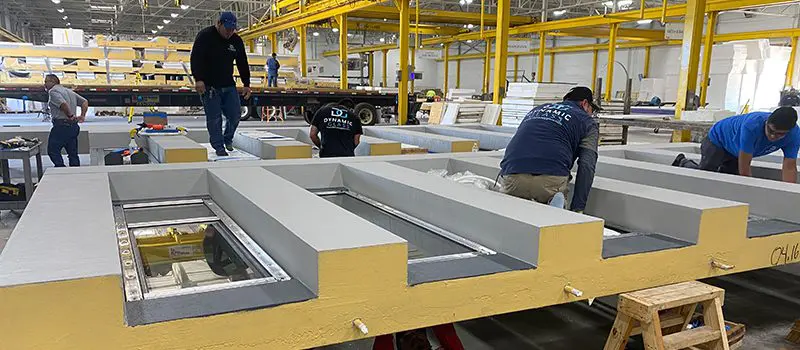

Sto Panel Technology affiliates are located in every major construction market. These experienced fabricators manufacture to StoPanel system specifications in quality controlled facilities across the country. This ensures consistency in quality and design regardless of where the project is located.

Click Here to reach out to a Sto Panel Technology specialist for assistance in finding an affiliate near you.

Design Assist Services

Sto Panel Technology experts are available to provide everything from project evaluation for prefabrication, to panelization design assist services, to problem solving for project specific challenges and constraints. By involving Sto Panel Technology early in the design process, you can ensure your project goals are achieved, whether they are schedule, cost, sustainability or design related.

View Sto Panel Technology Projects and Case Studies

Benefits of Using Sto Panel Technology Prefabricated, Finished Exterior Wall Panels

Sto Panel Technology pre-fabricated and finished exterior wall panels are easy and efficient to install, provide a wide range of high-end aesthetic options, and reduce project timeline and waste. It’s a smarter form of wall design and construction.

Schedule

Greatly reduce the time of building envelope installation and make the most of your construction calendar

  • Accelerate building envelope installation up to 80 %
  • Fast-track, systemized wall panel manufacturing
  • Efficiencies compress the construction schedule
  • Indoor production means no weather delays
  • Site prep and panel fabrication can occur simultaneously
  • Reduced multi-trade vendor coordination
  • Faster installation due to prefab panelization

Value

Reduce the cost of your project by eliminating scaffolding and other complications of working at high elevations

  • Improve cost predictability of your project and eliminate other complications
  • Lightweight wall panels reduce structural requirements, decreasing steel and concrete requirements
  • Less jobsite labor, much smaller installation teams
  • Limited or no scaffolding required
  • Increased job safety
  • Reduced jobsite waste from packaging and excess product

Quality

StoPanel prefabricated exterior wall panels are produced in temperature-controlled factories, in full compliance with codes for testing, building and energy efficiency

  • Fully tested, engineered, code compliant wall systems
  • Quality-controlled workmanship
  • Strict adherence to manufacturers’ temperature/humidity guidelines
  • Extensive architectural and aesthetic options
  • Compliant for use on all construction types under the IBC
  • Proven long-term durability with industry-leading warranty

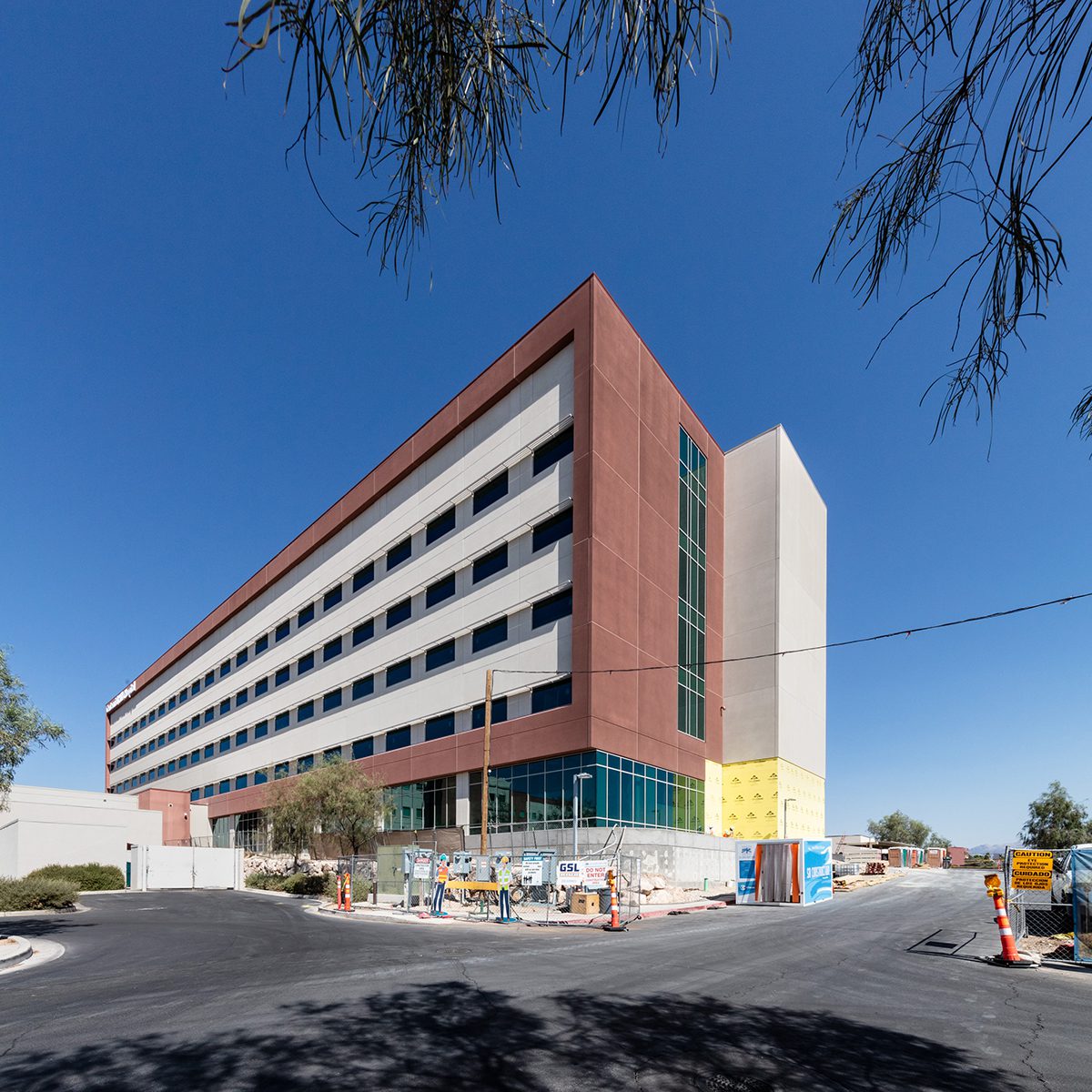

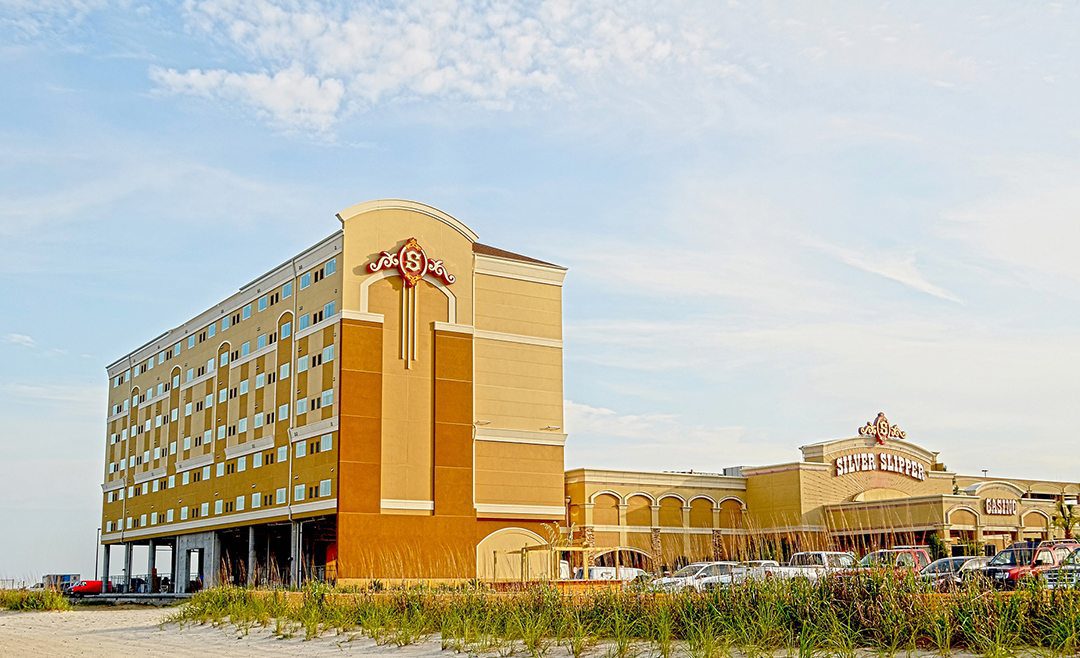

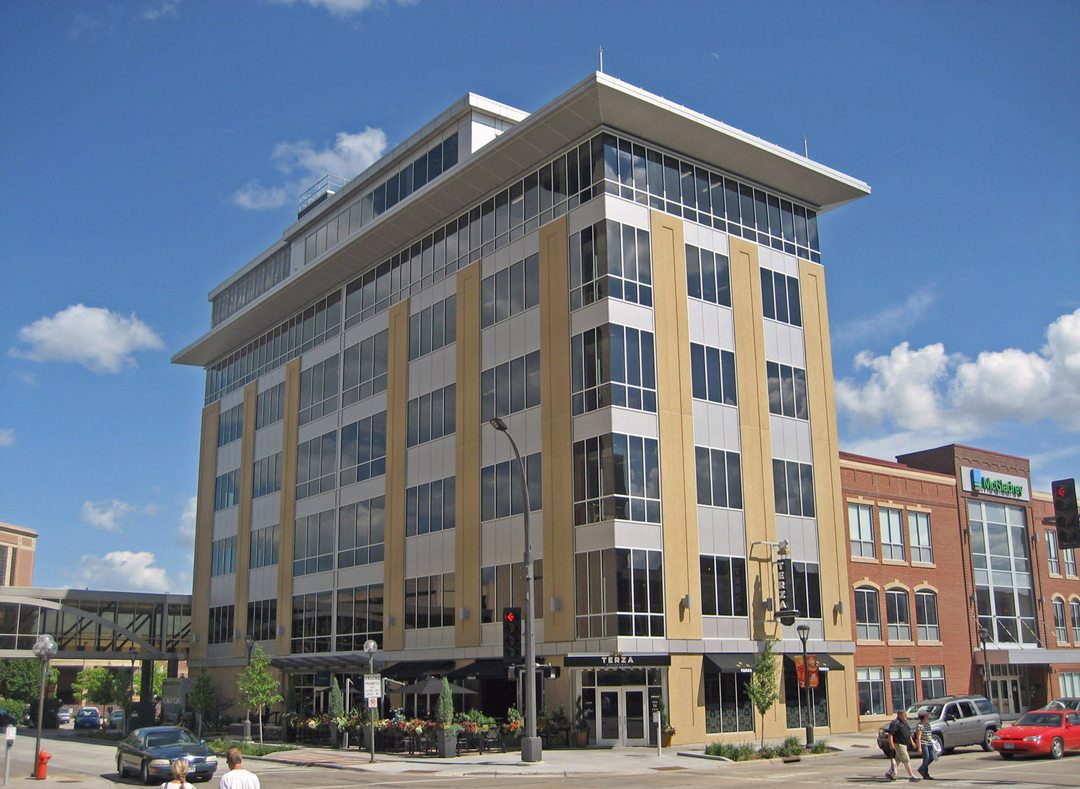

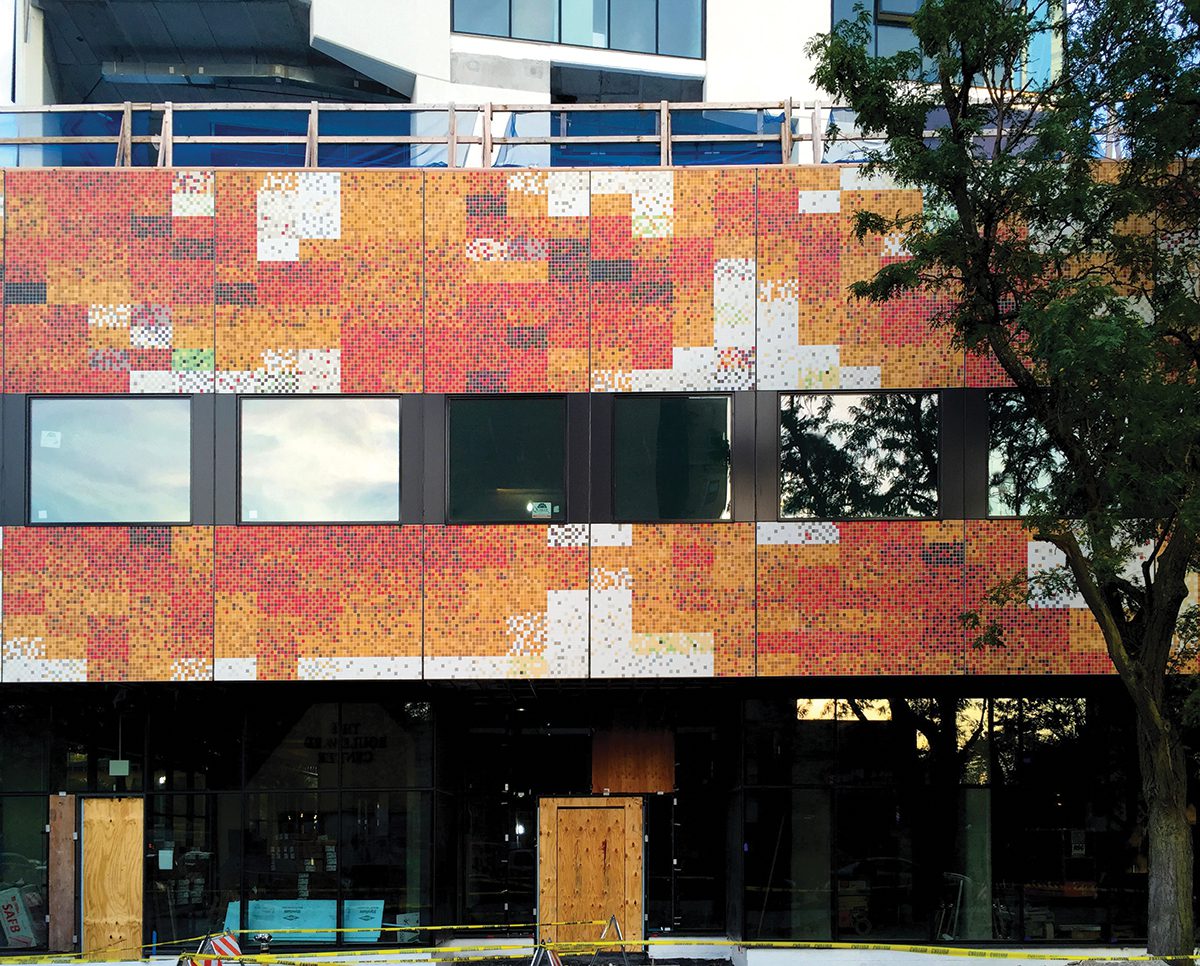

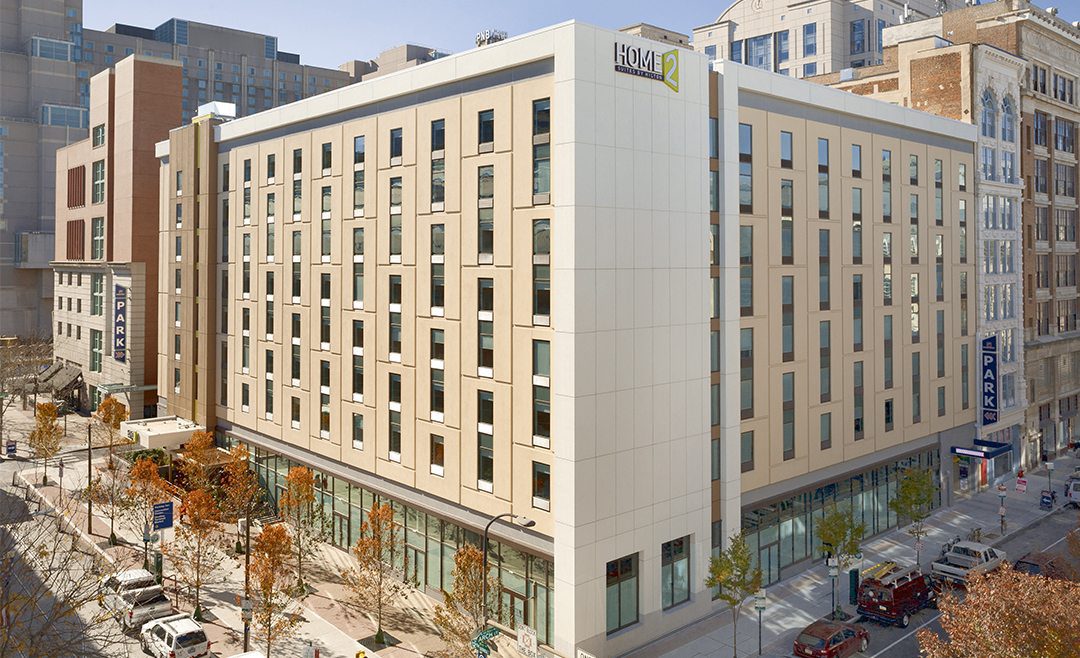

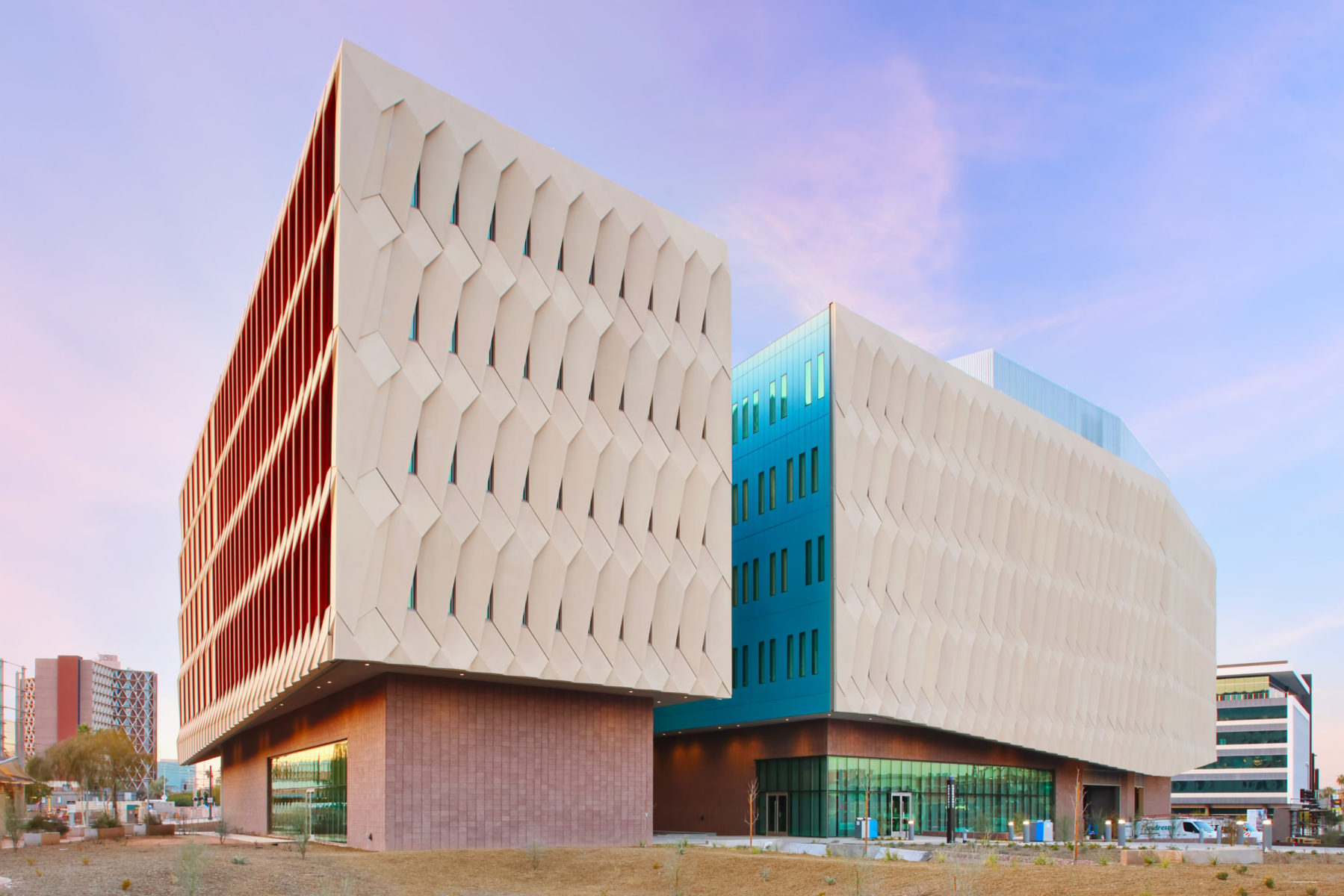

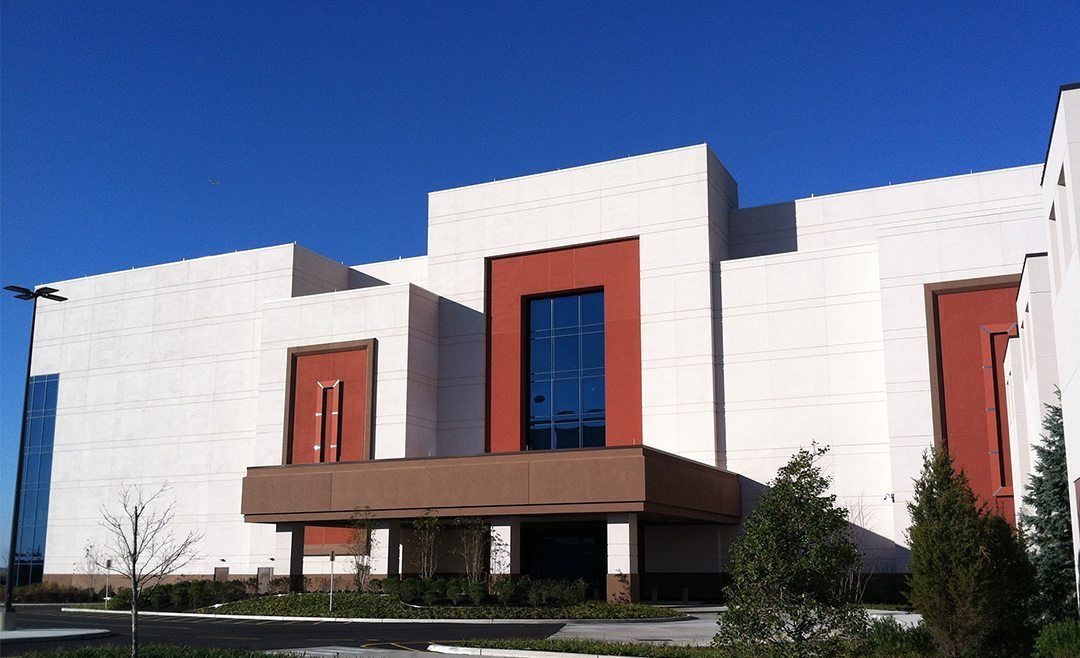

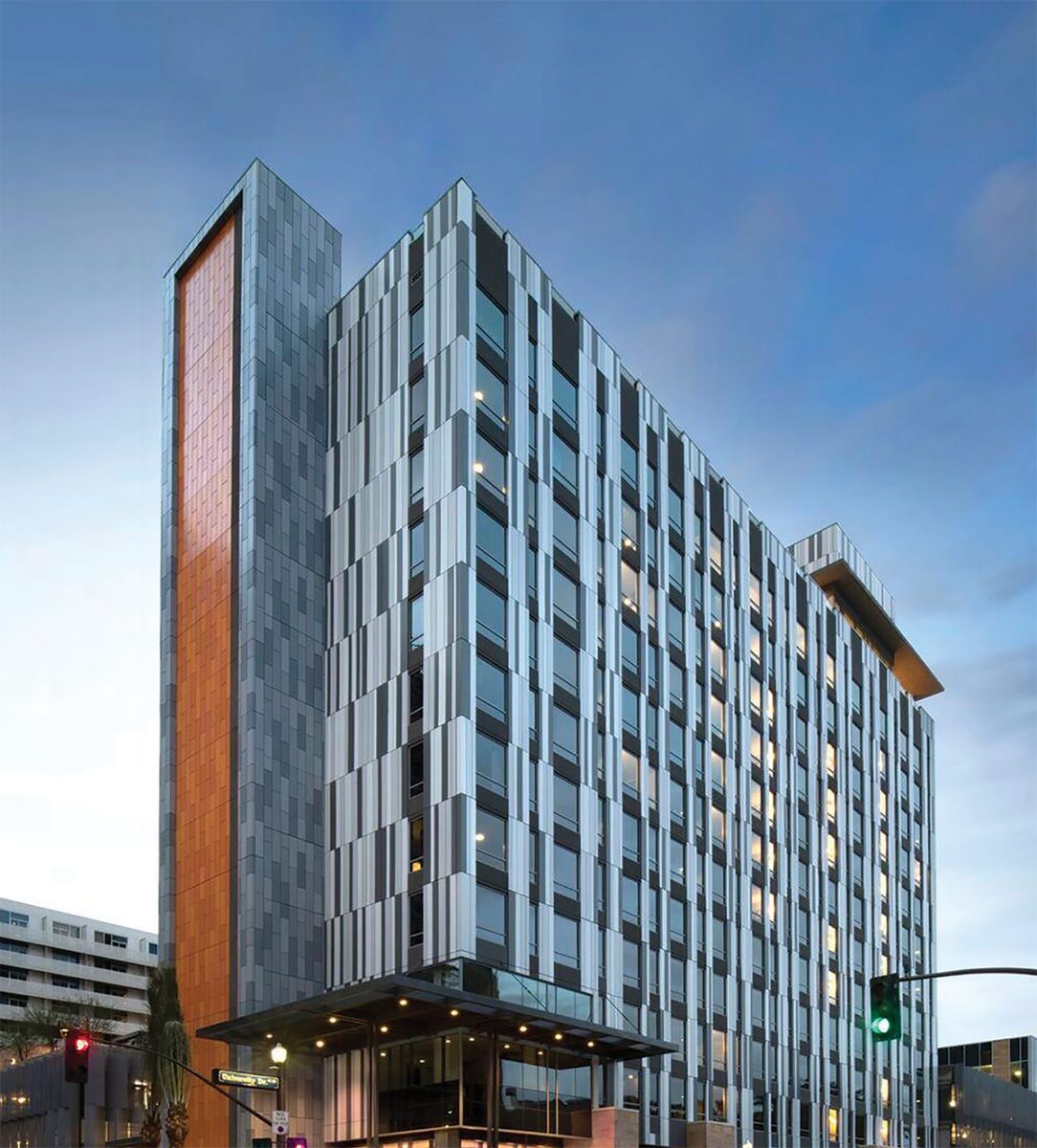

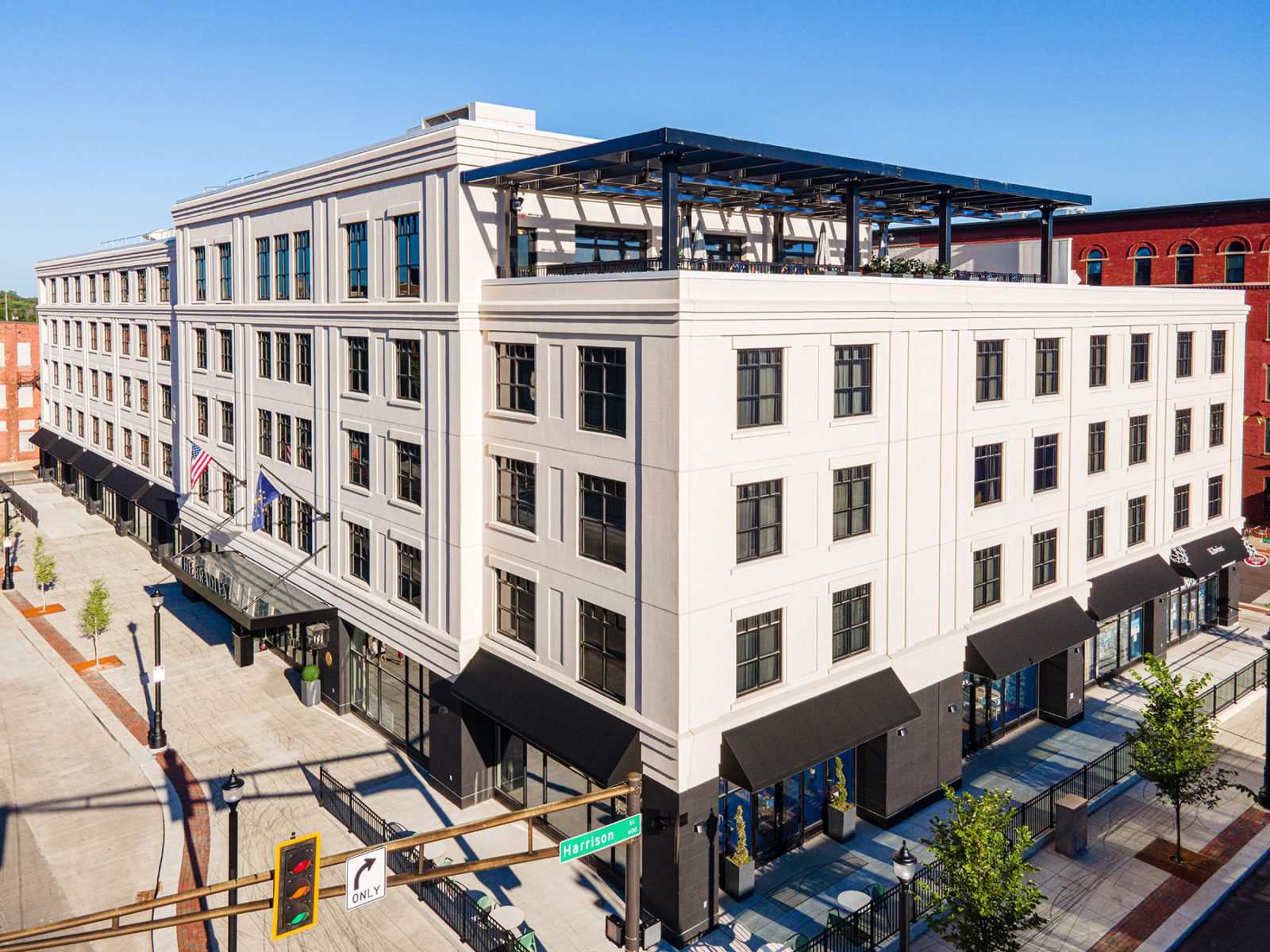

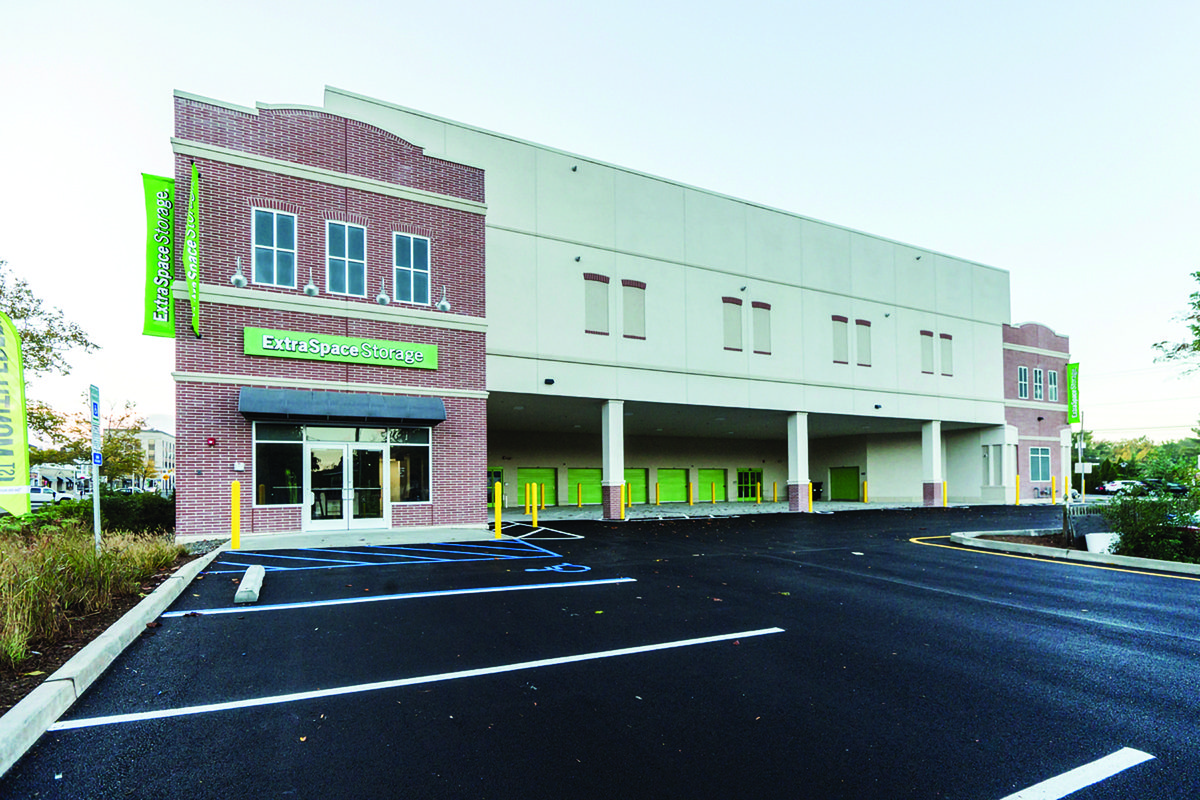

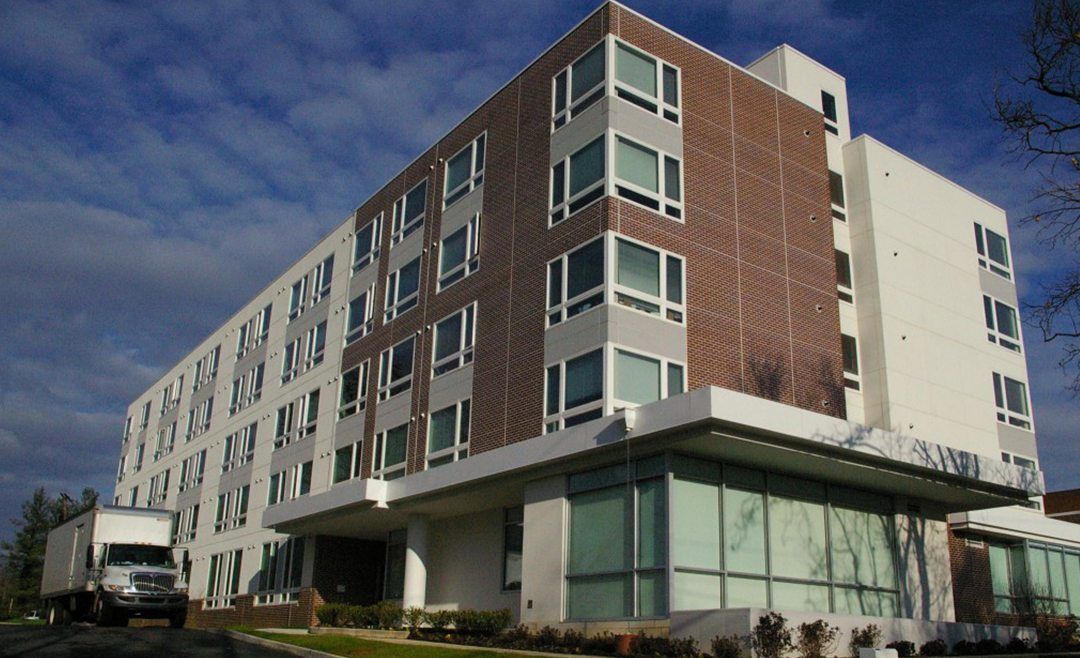

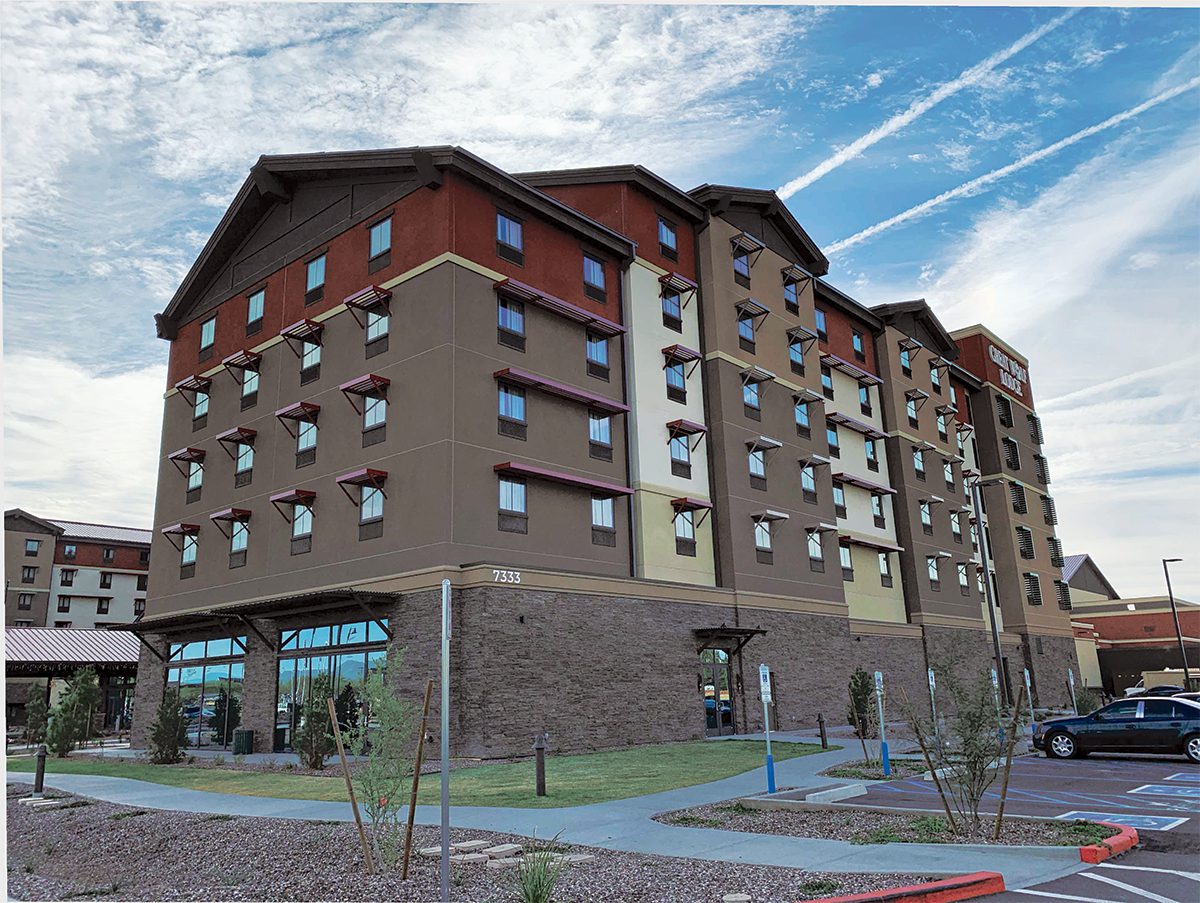

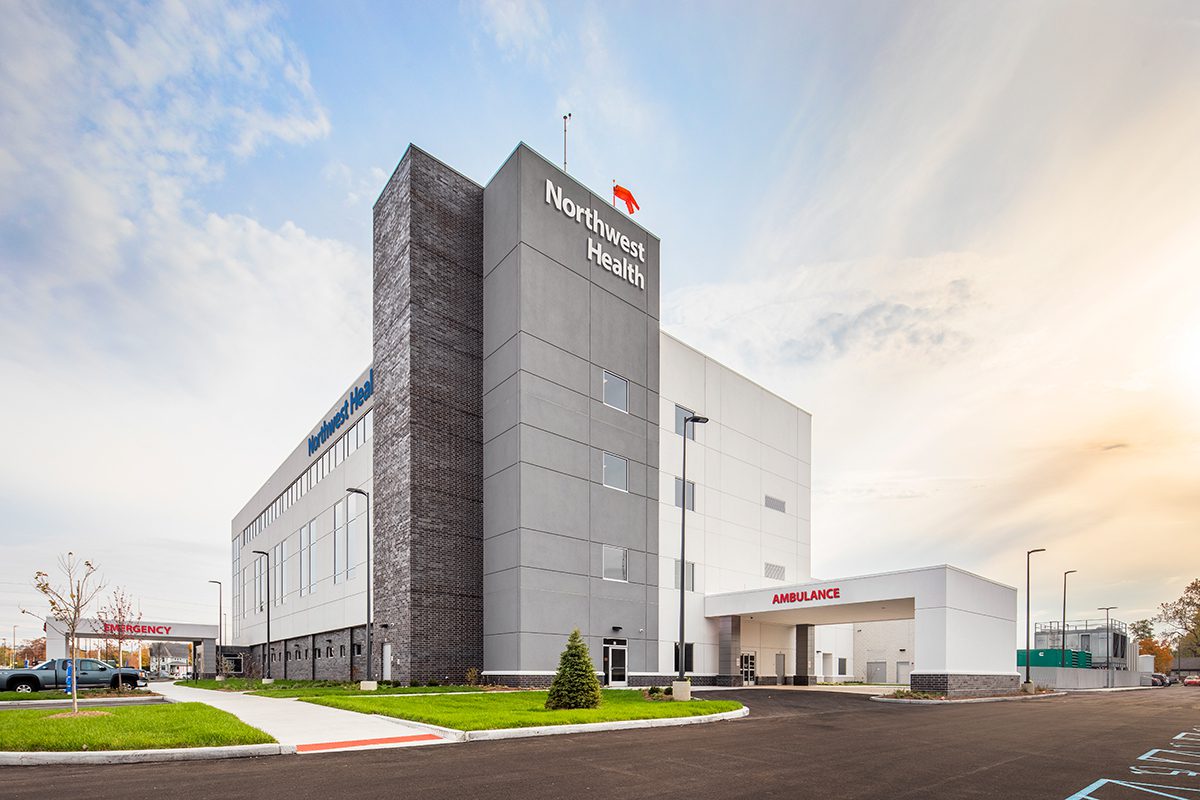

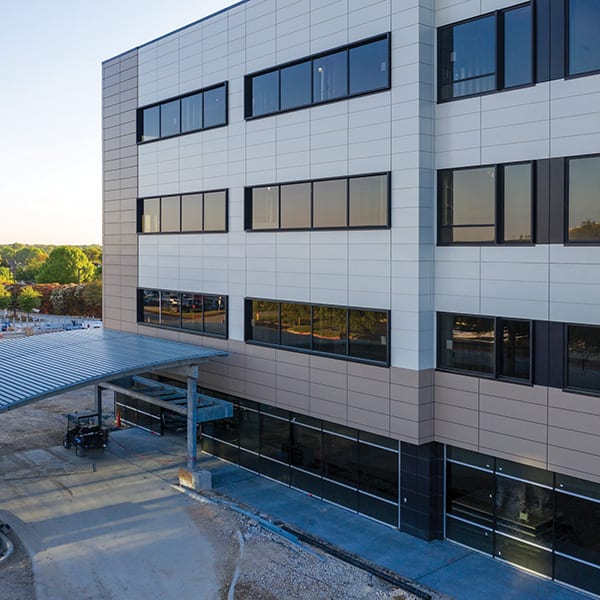

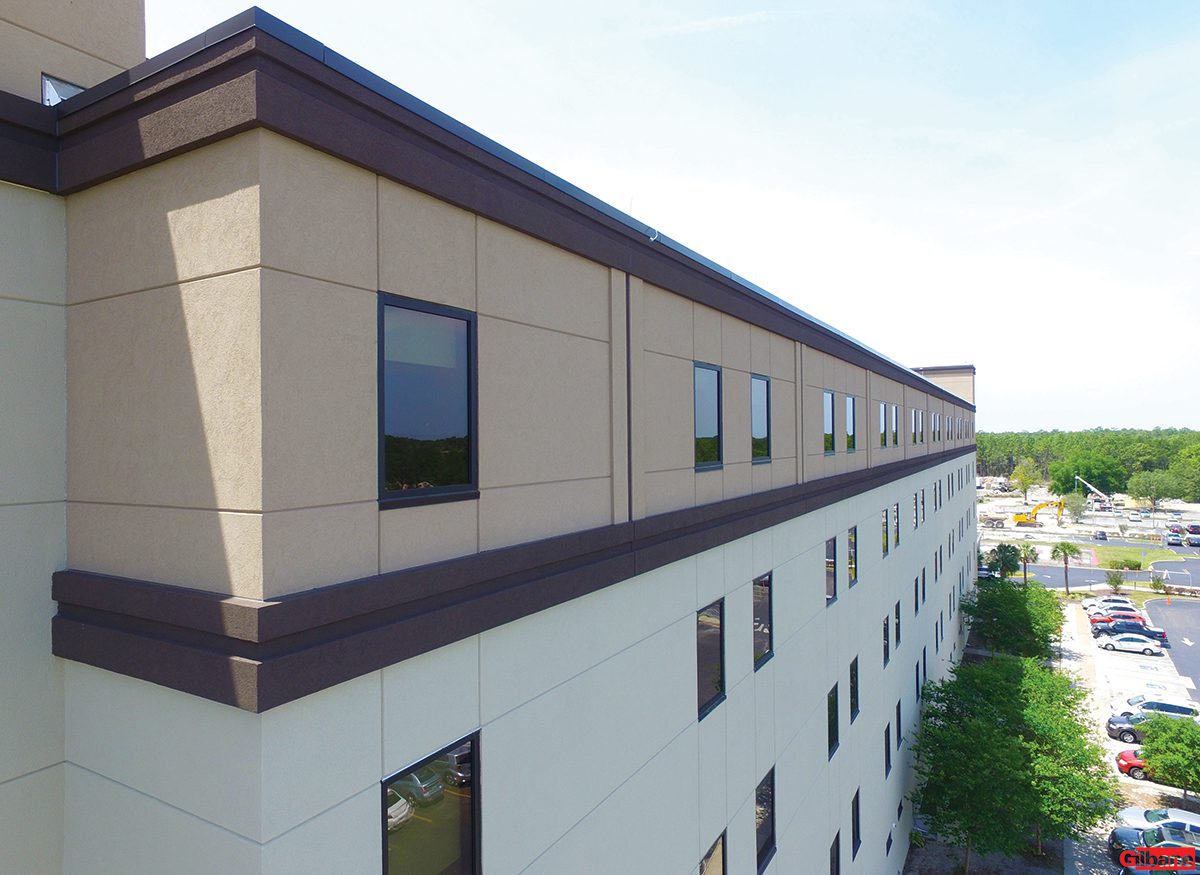

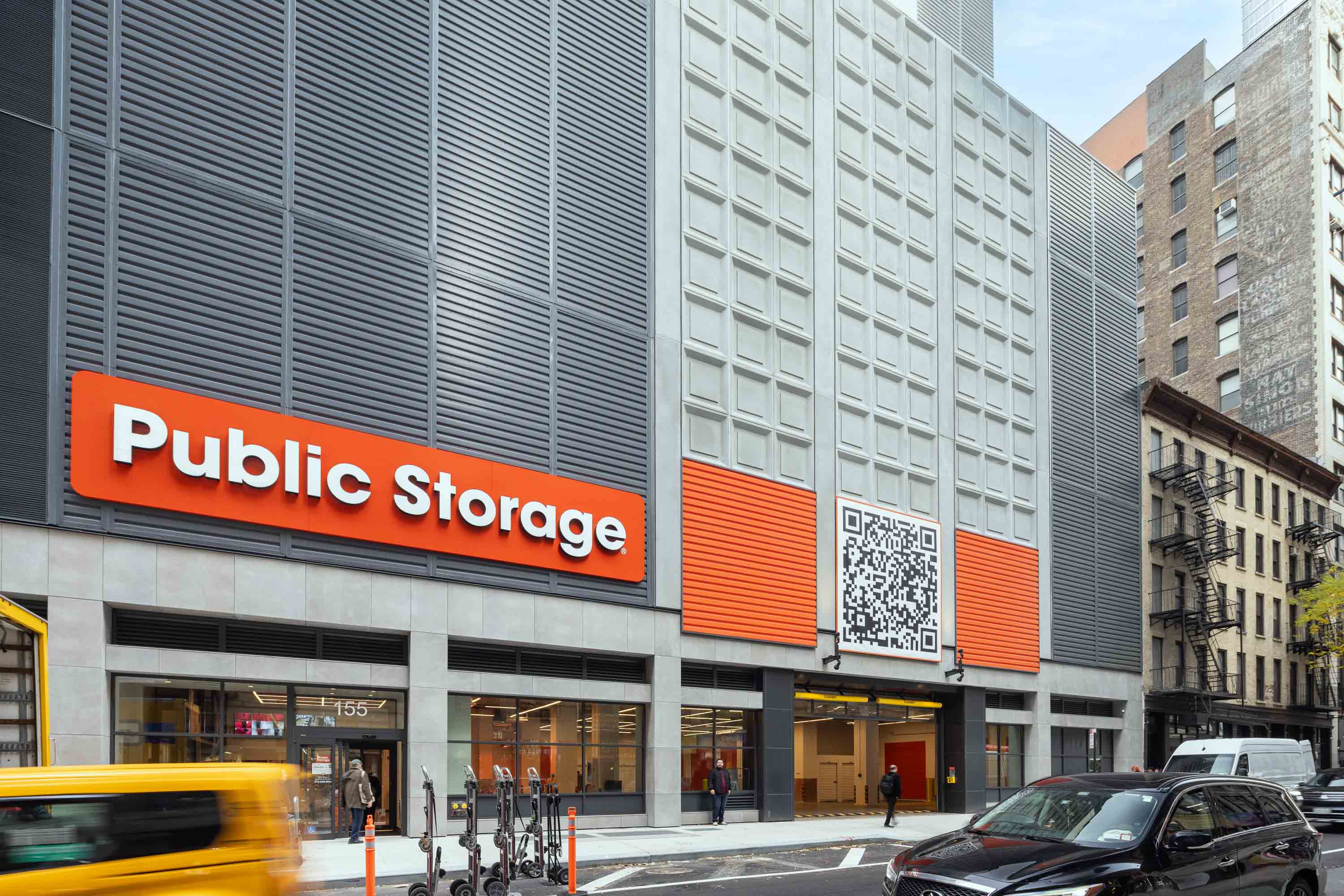

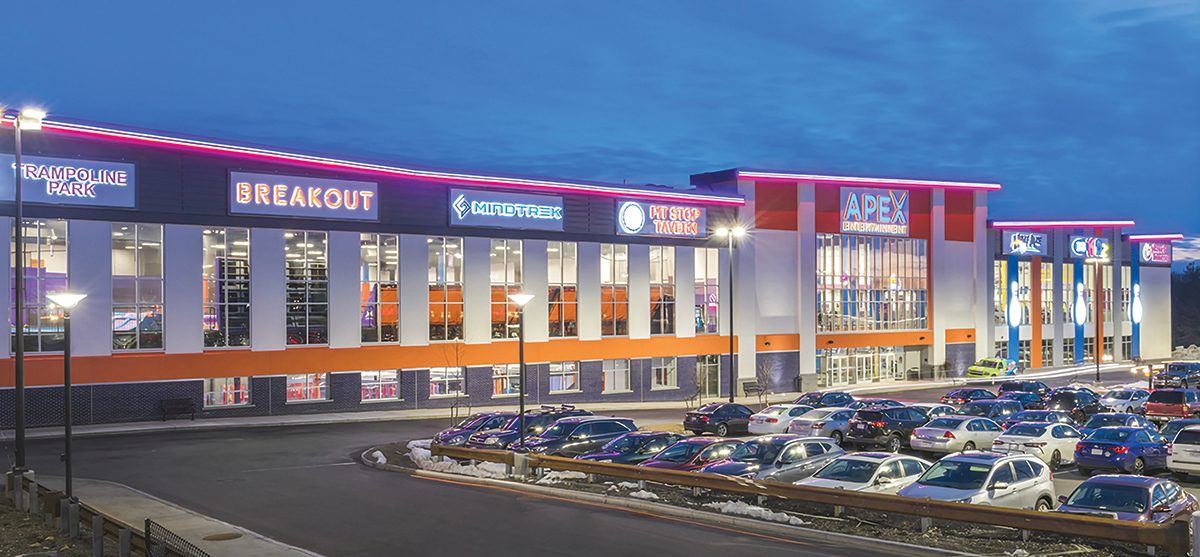

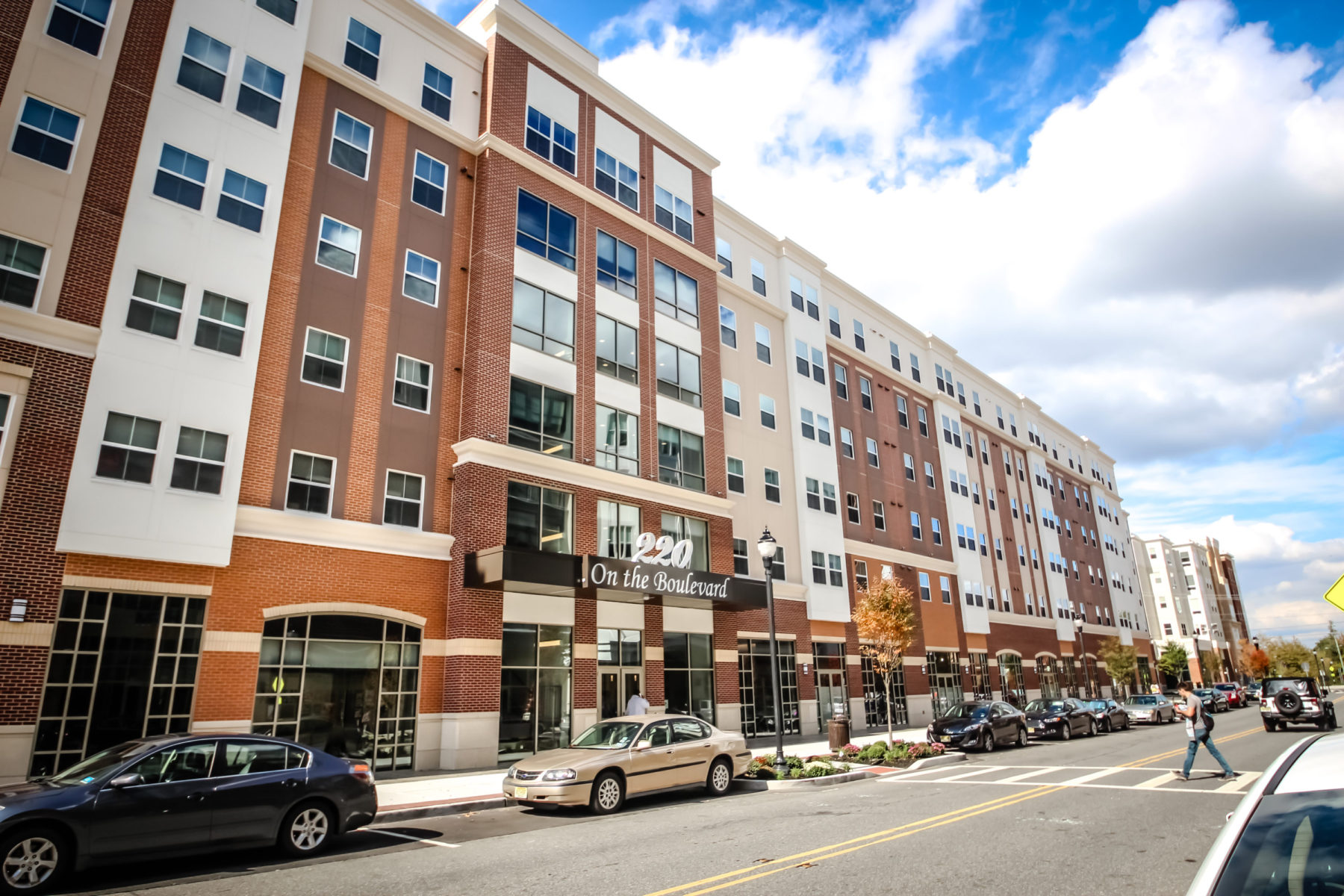

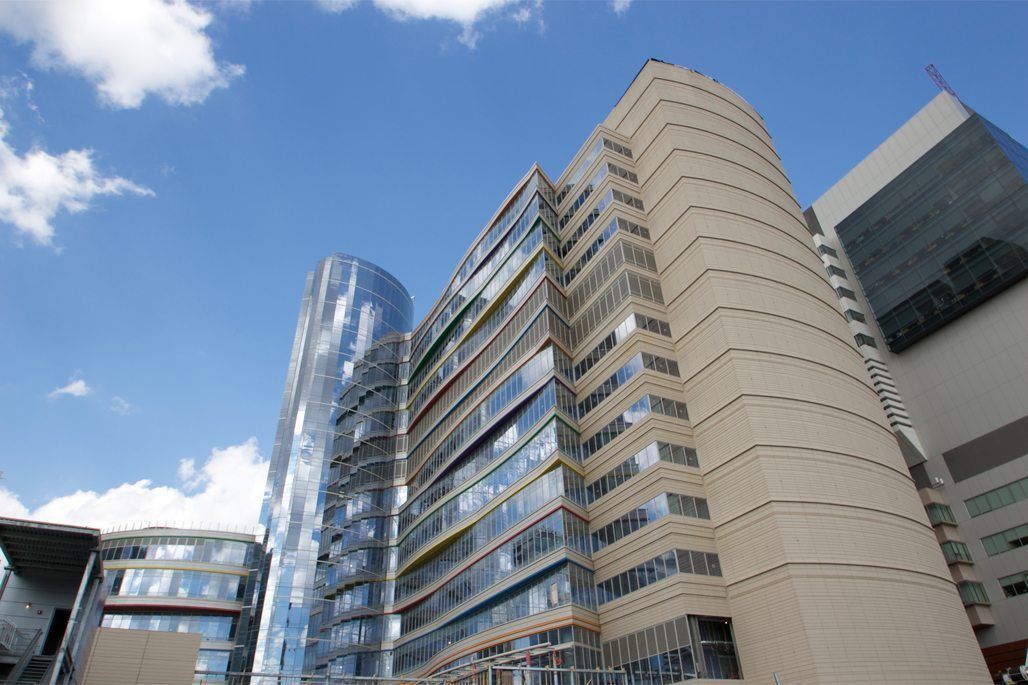

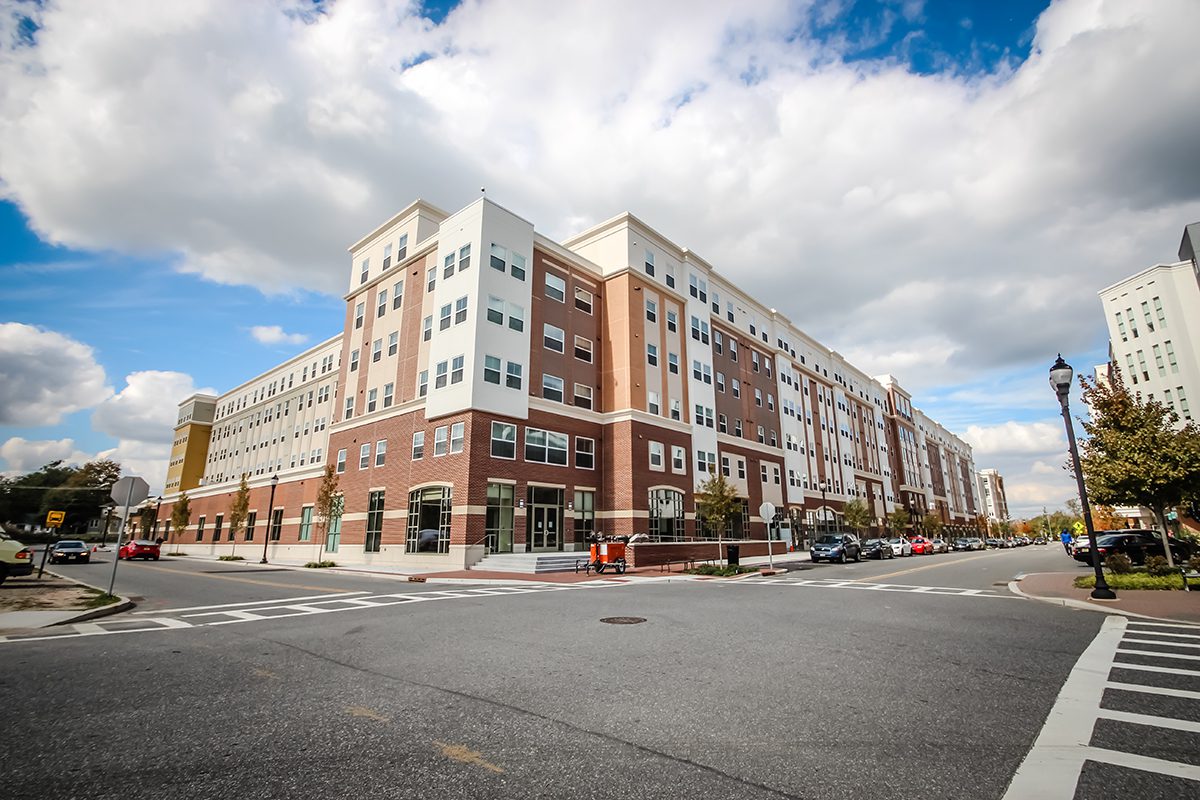

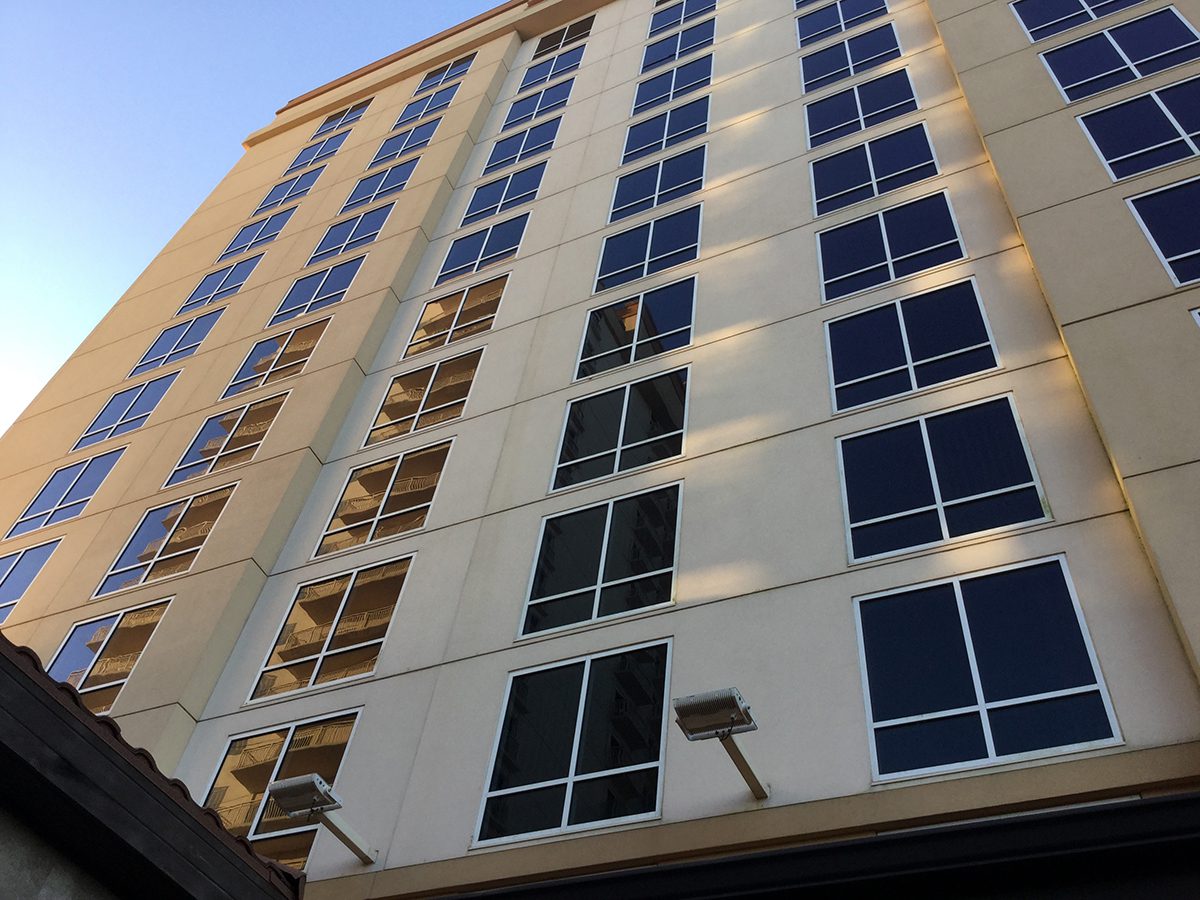

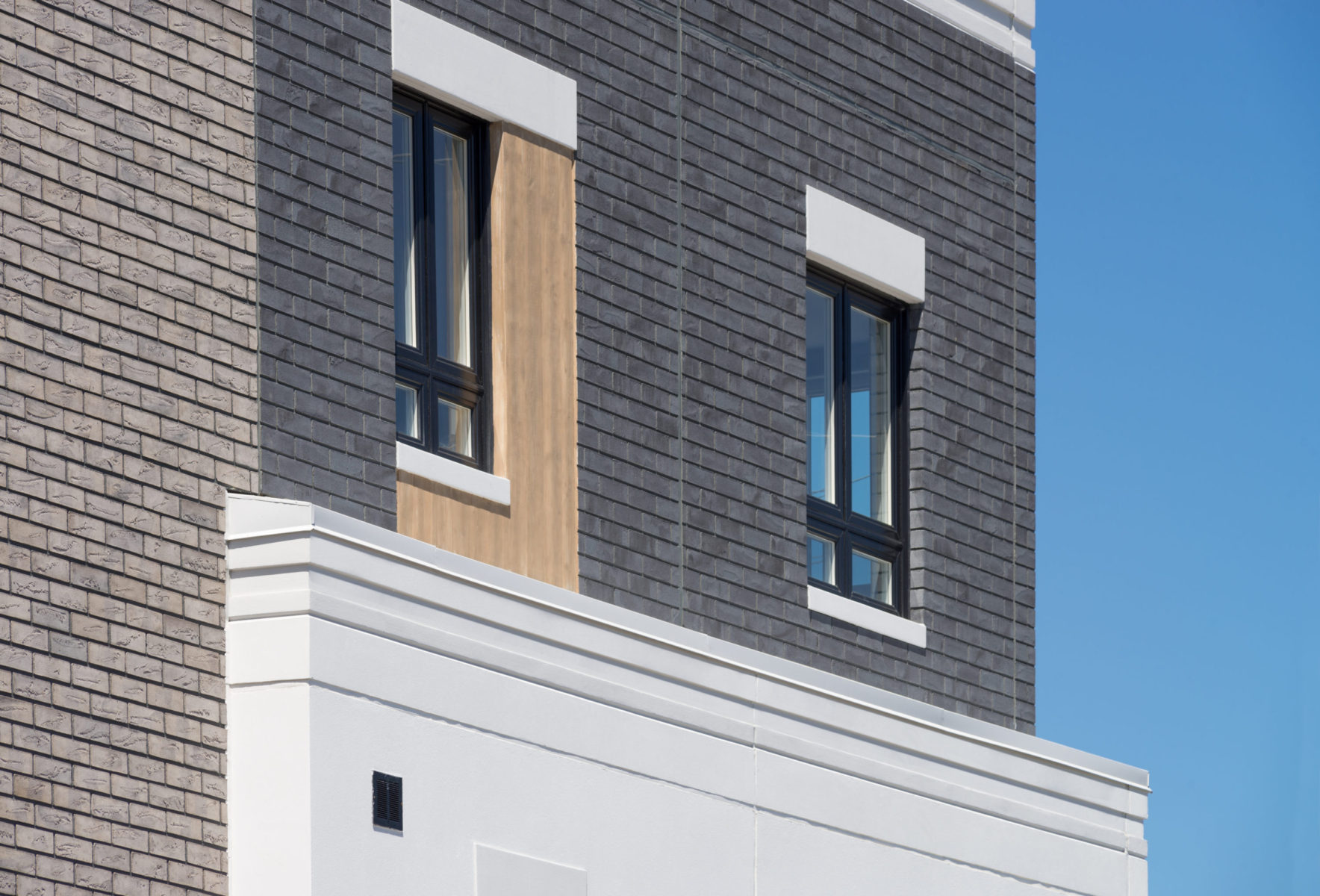

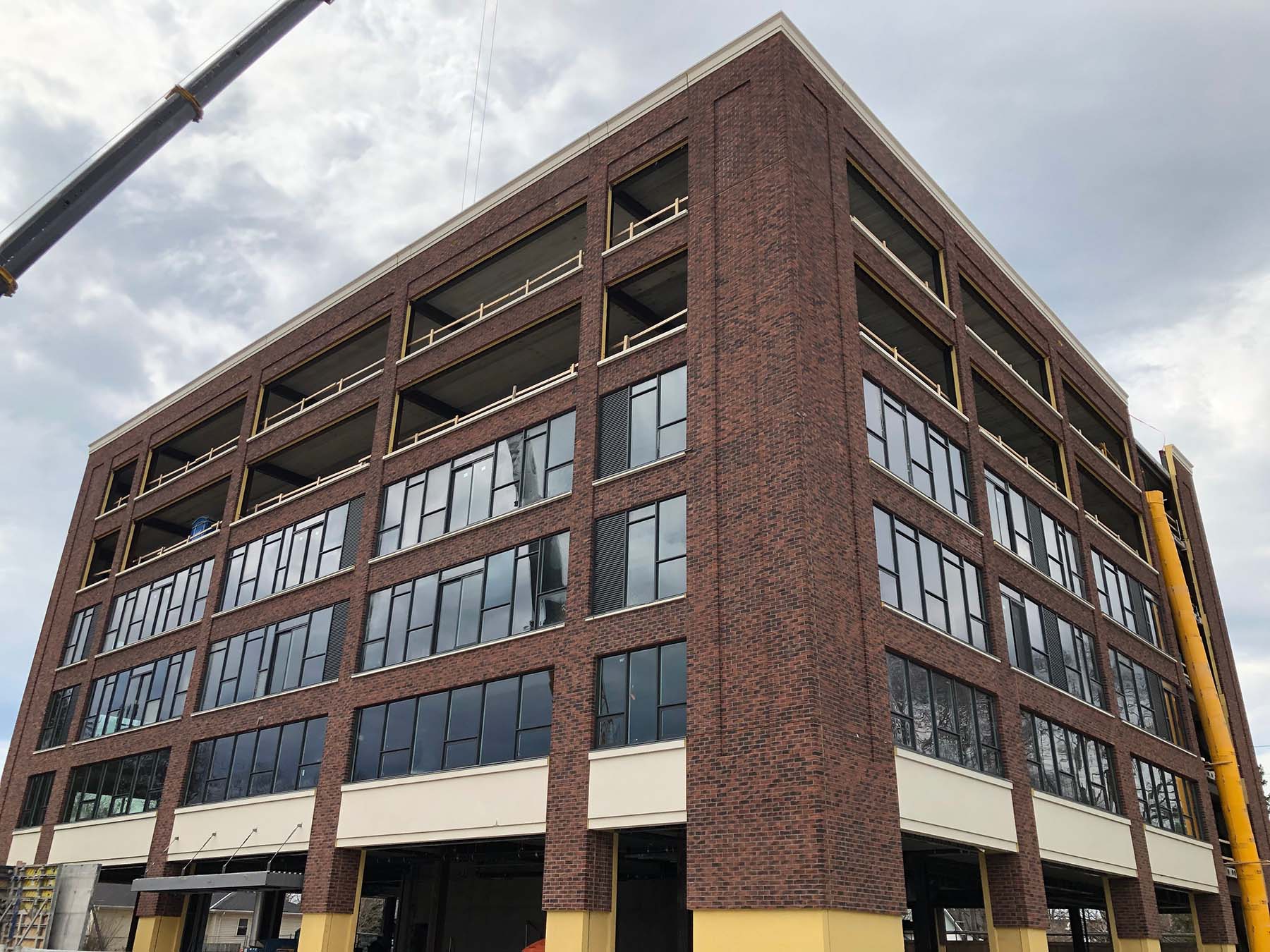

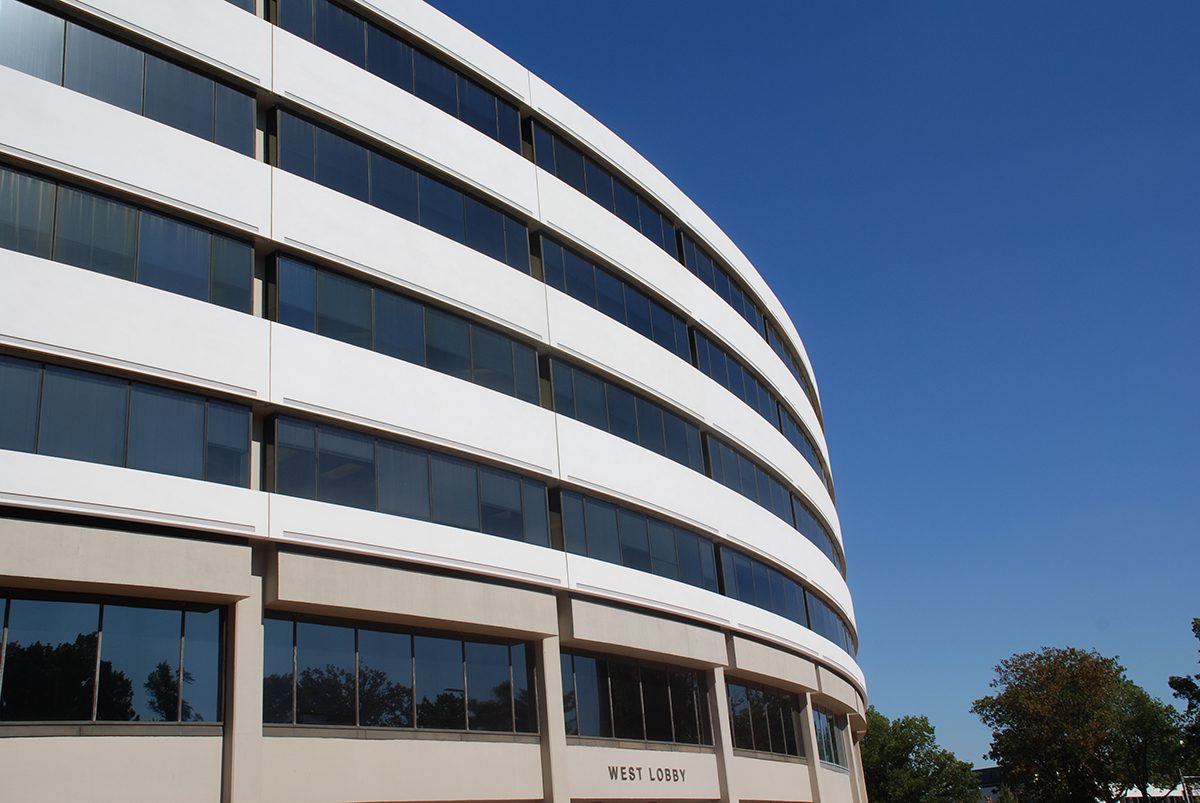

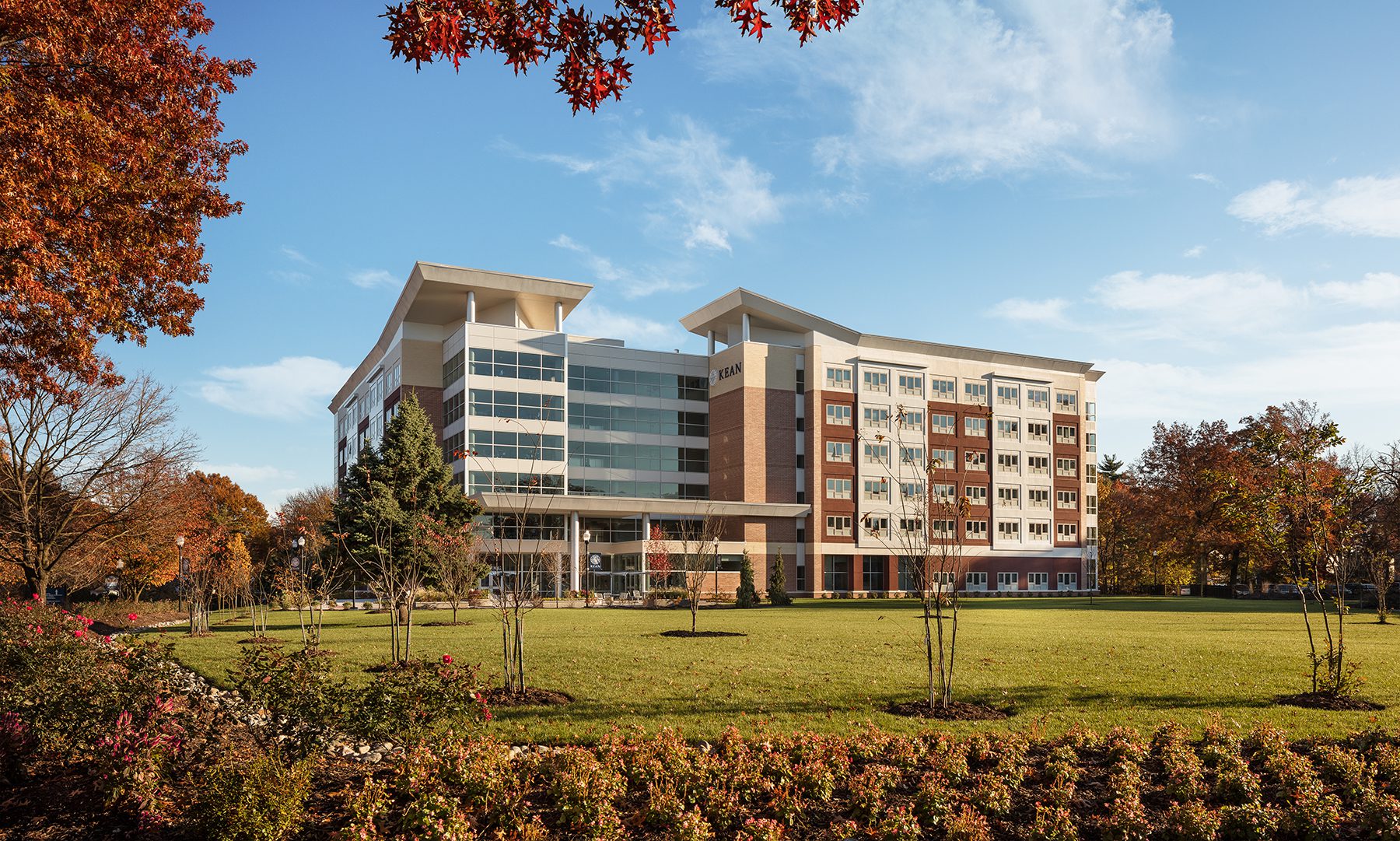

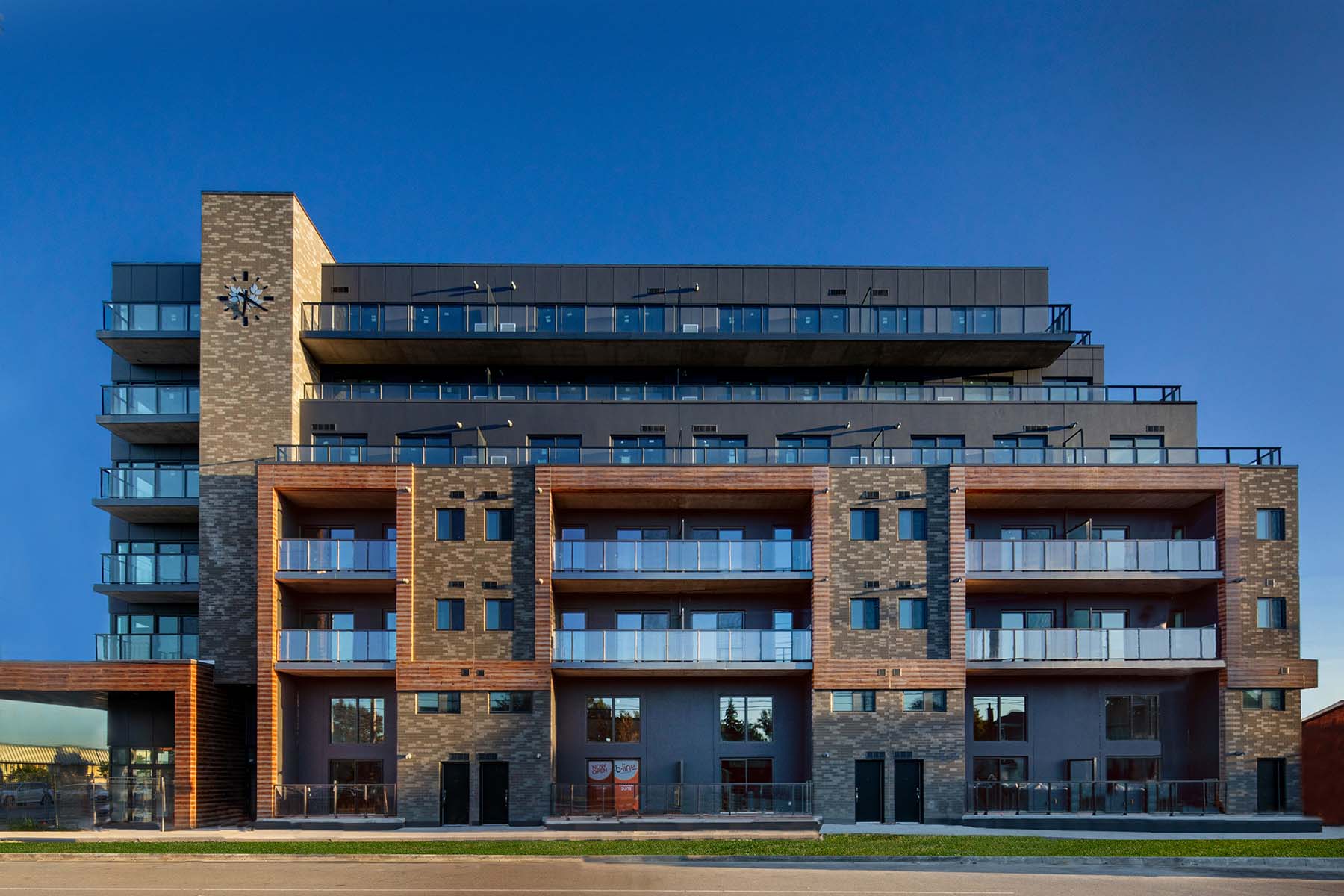

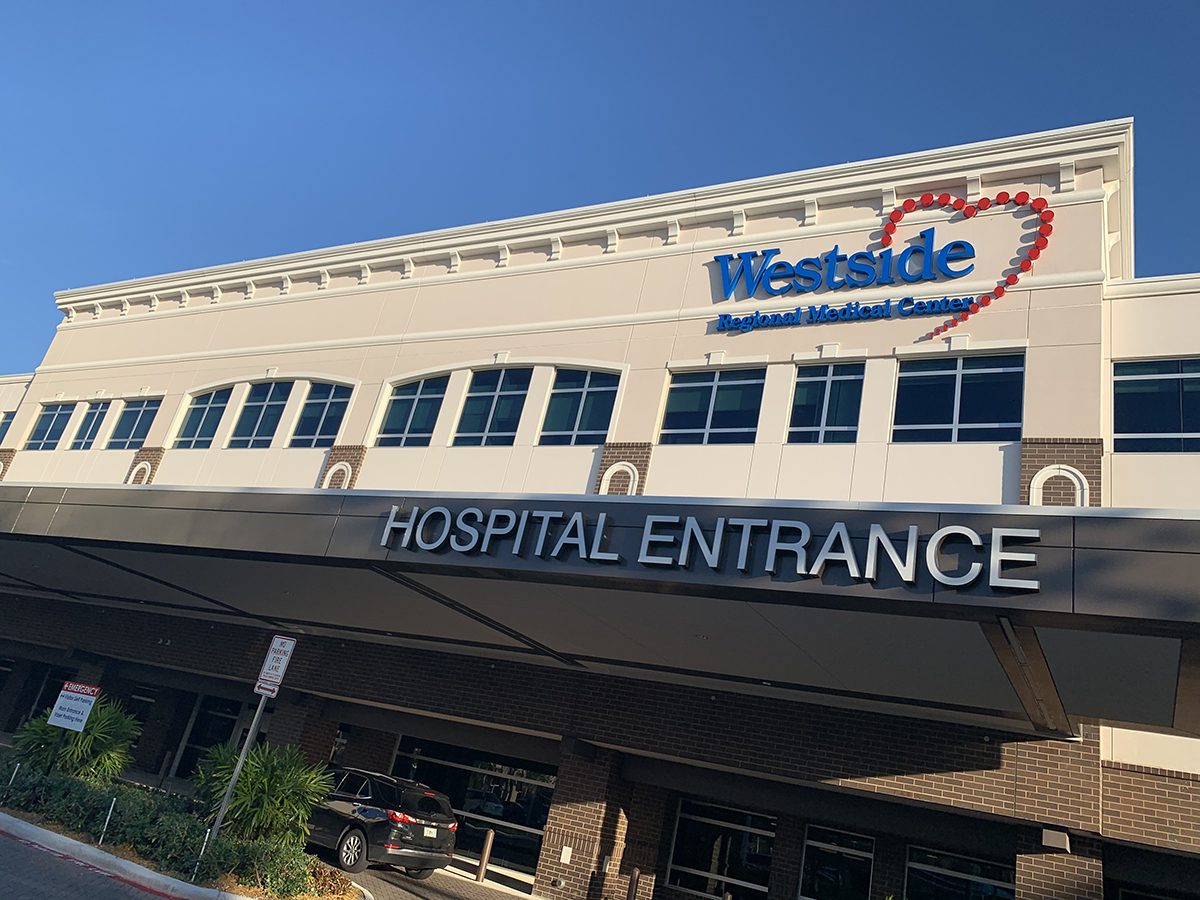

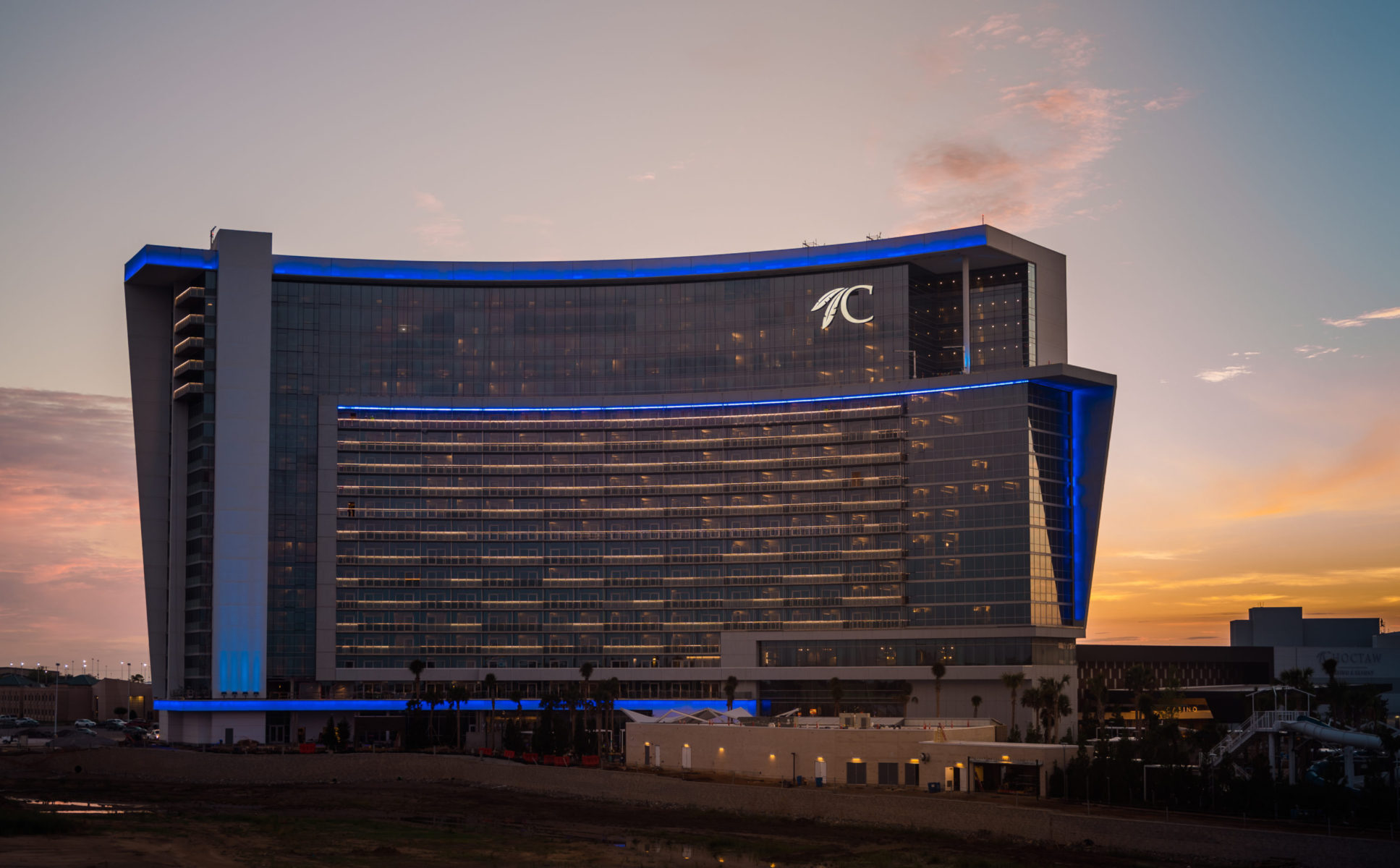

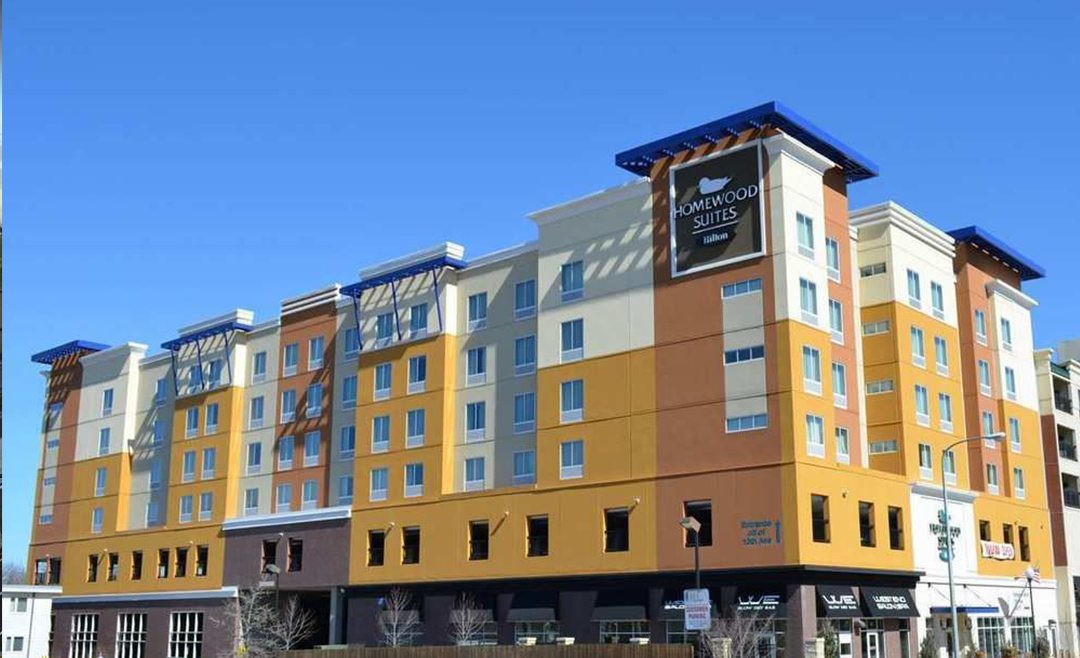

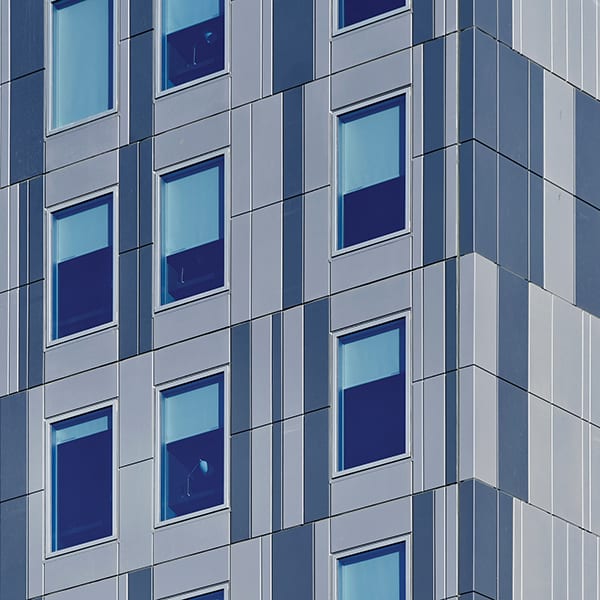

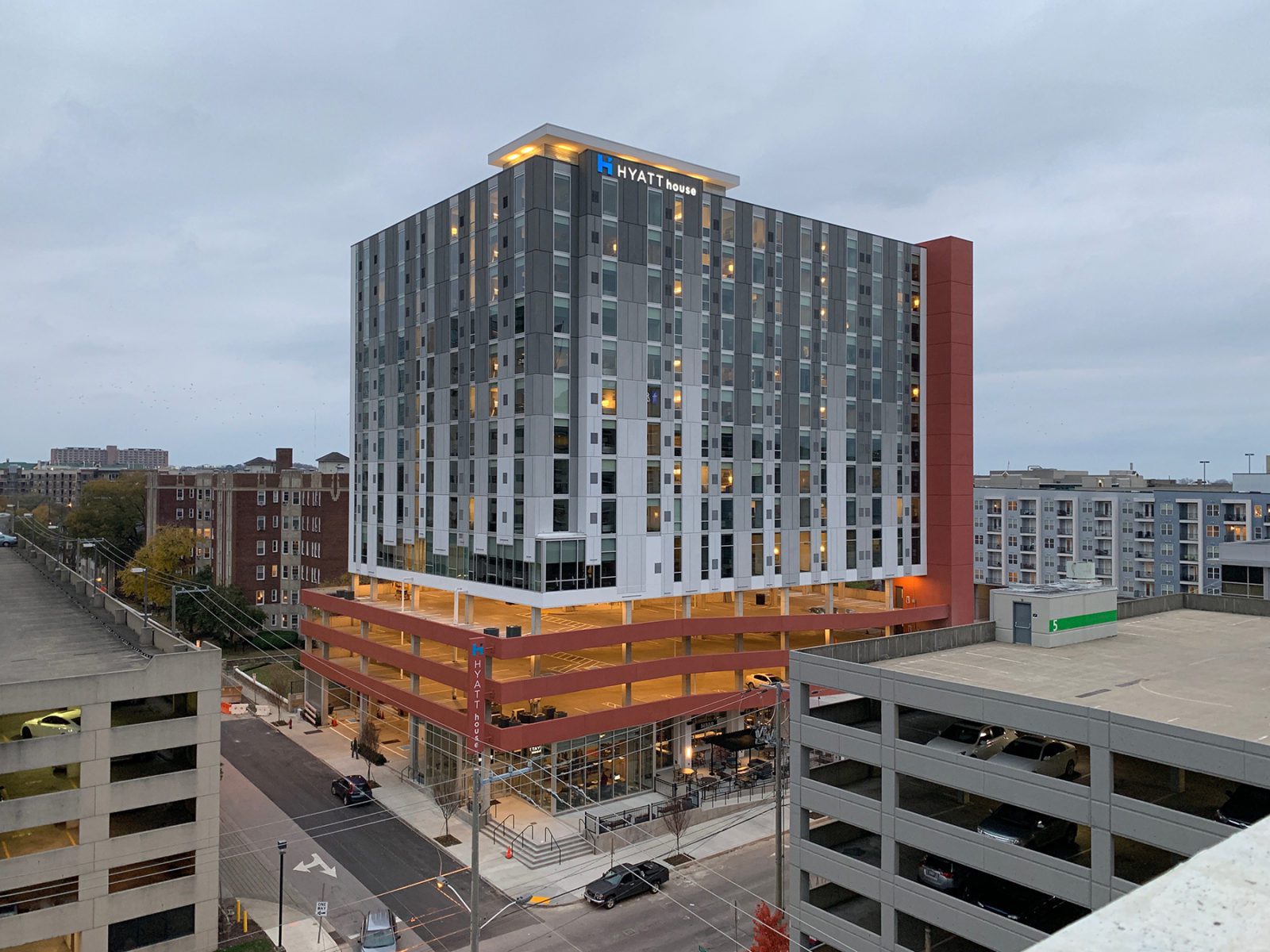

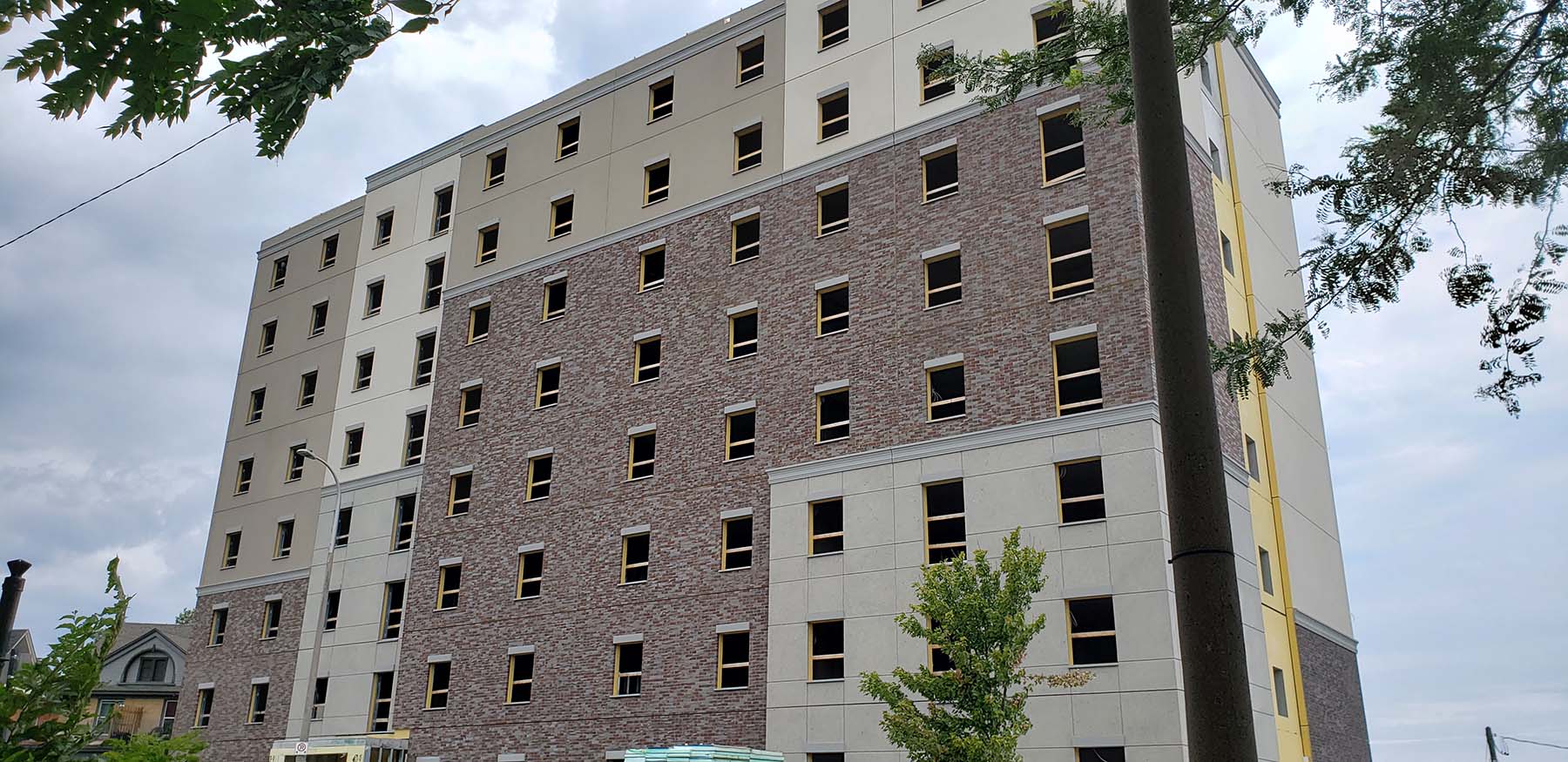

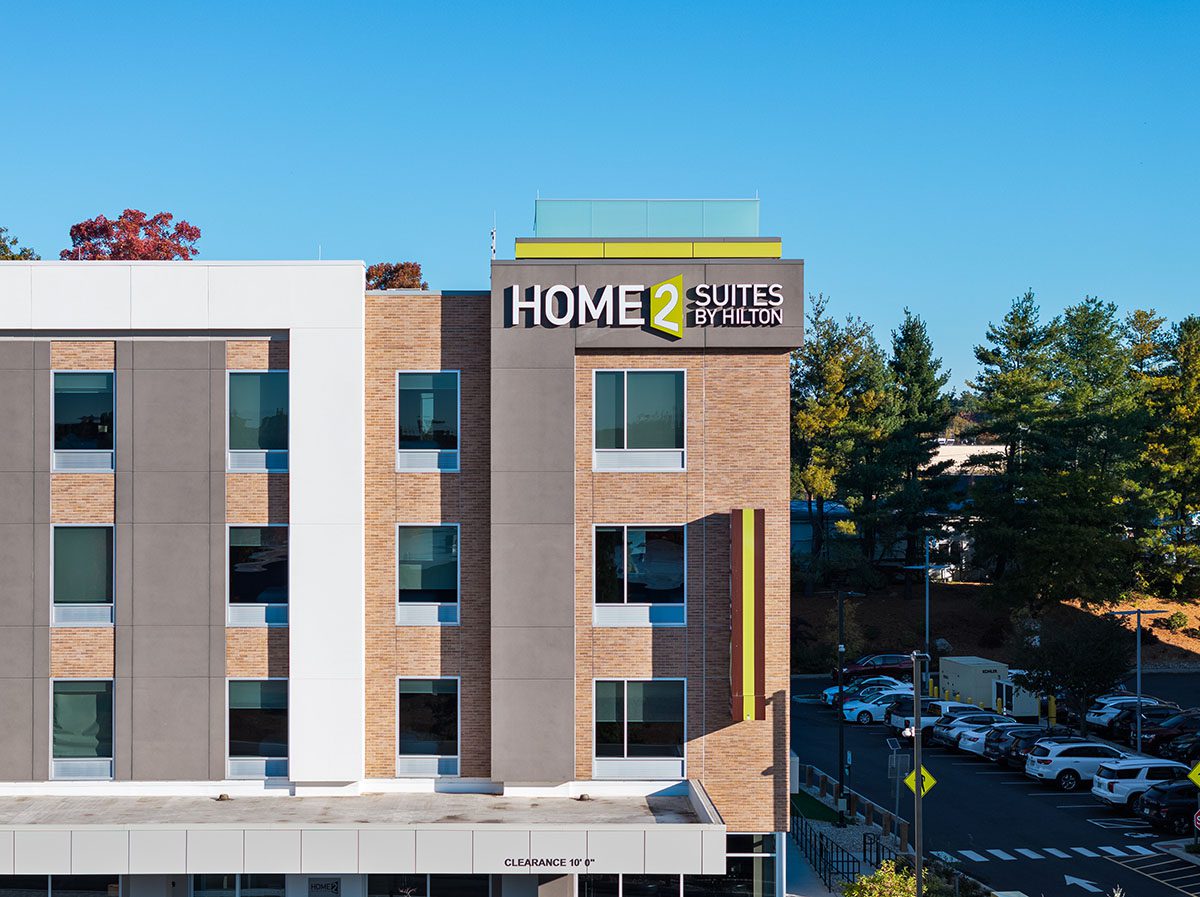

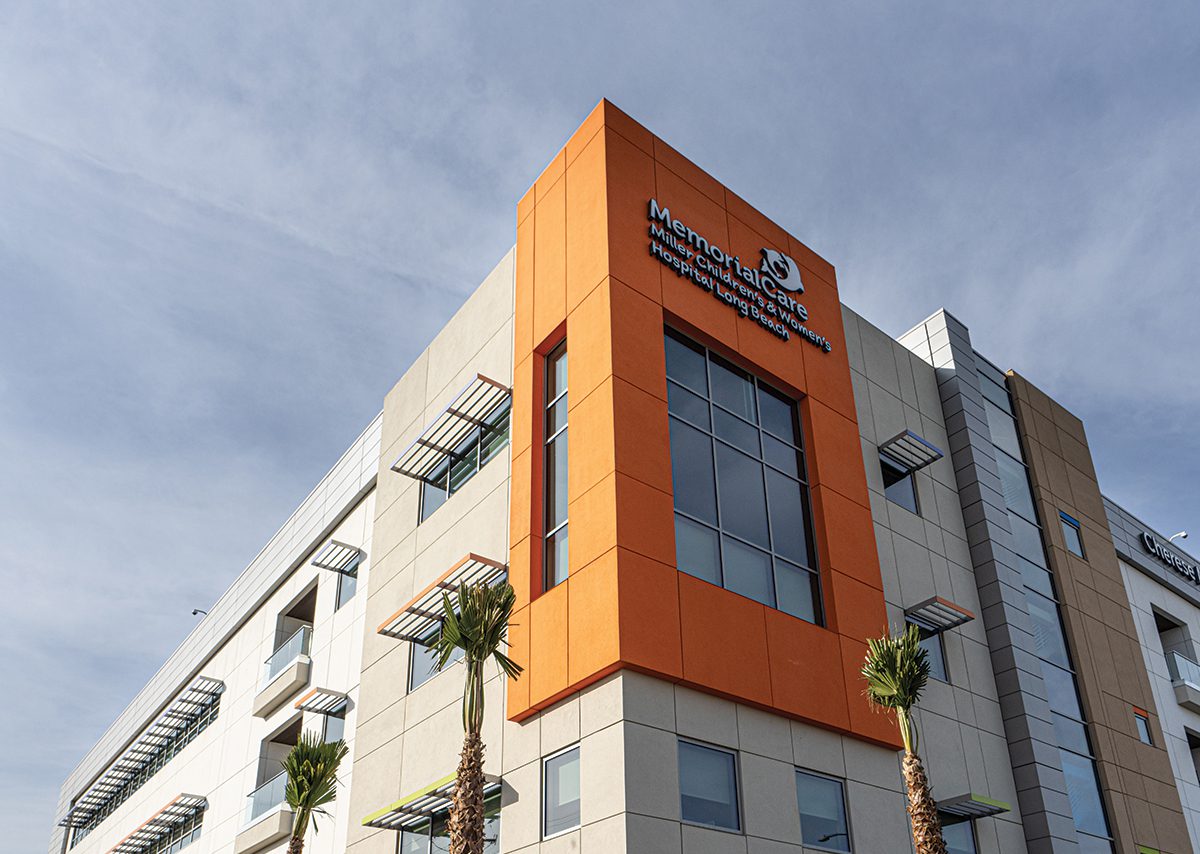

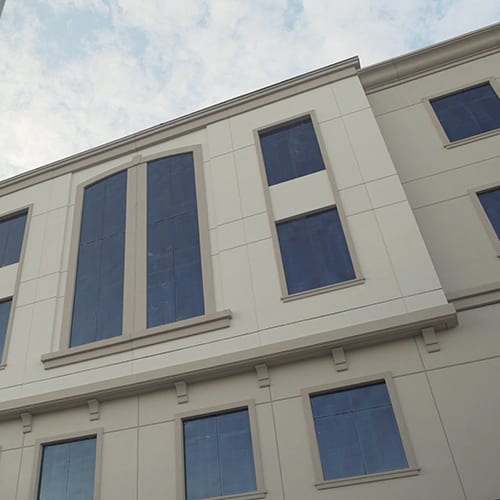

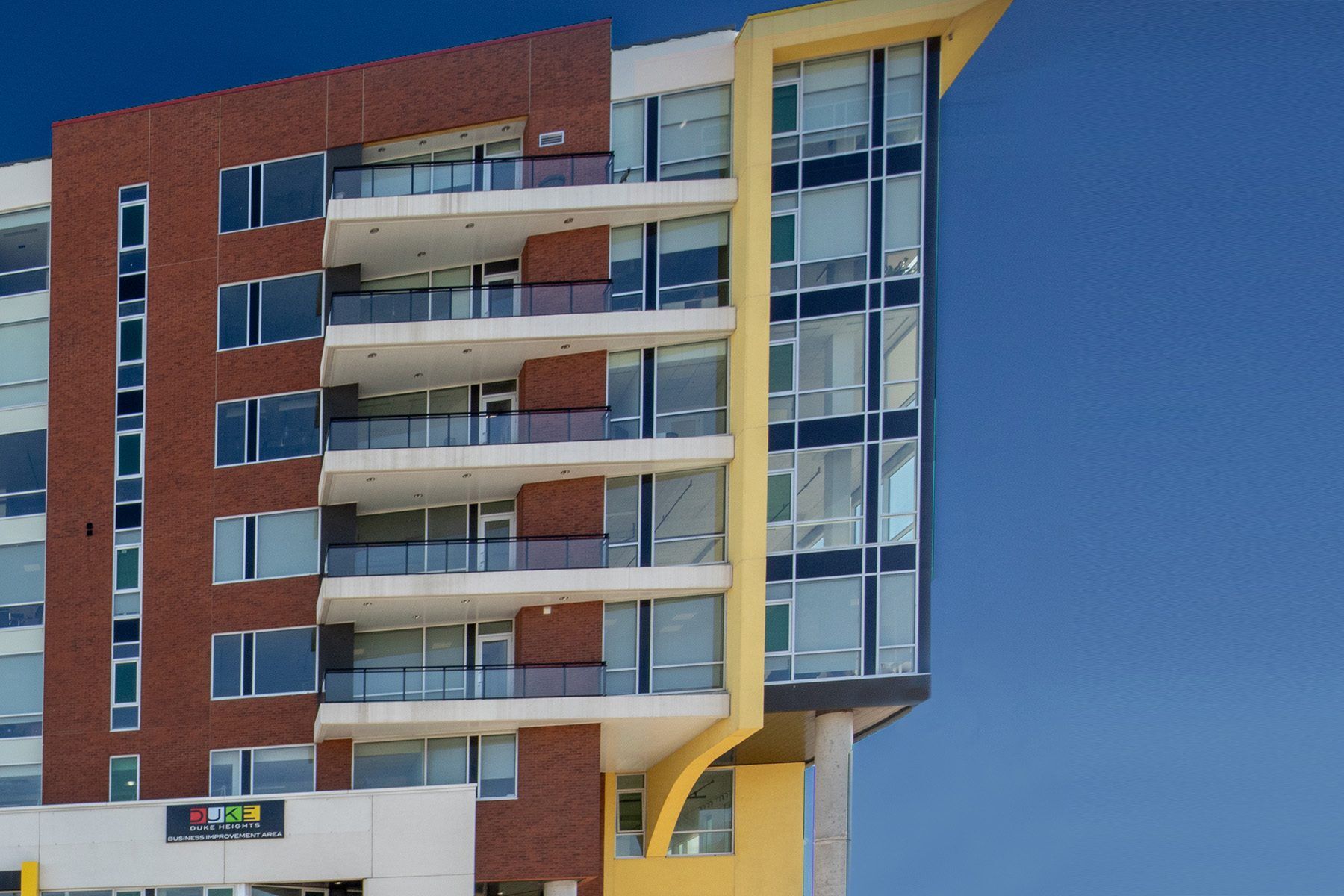

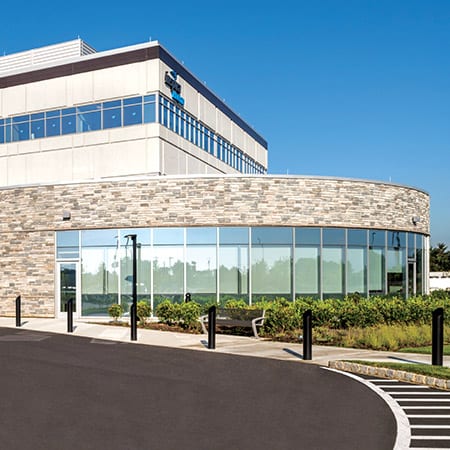

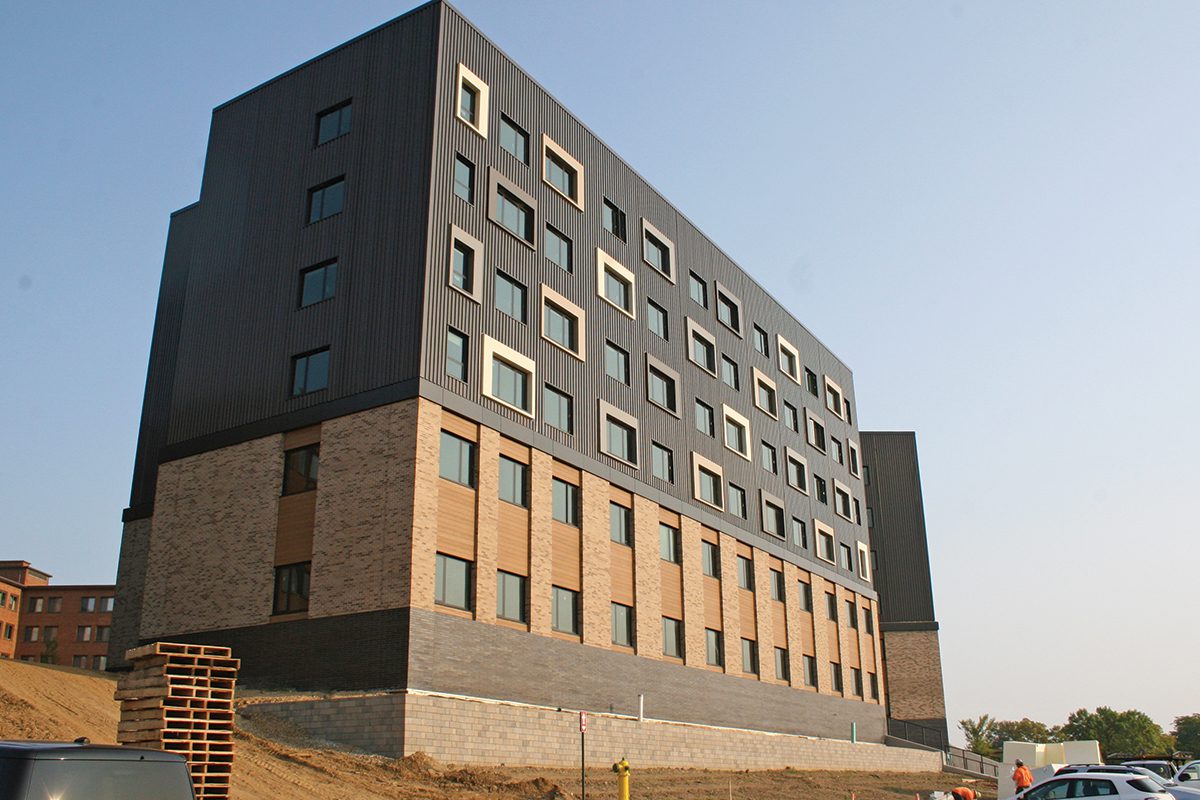

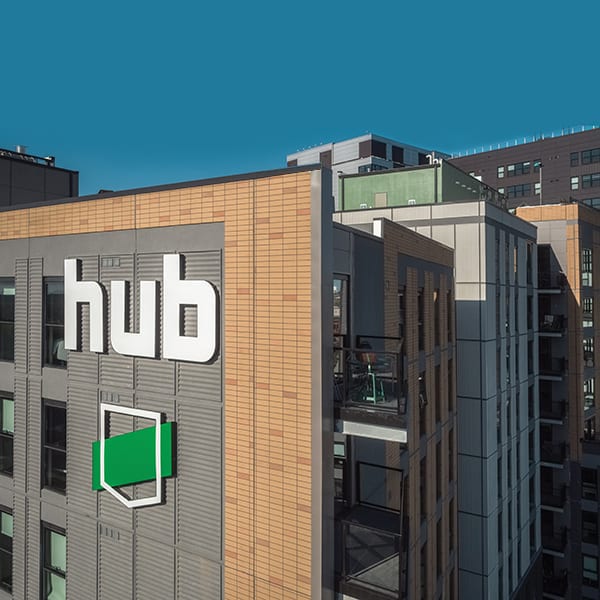

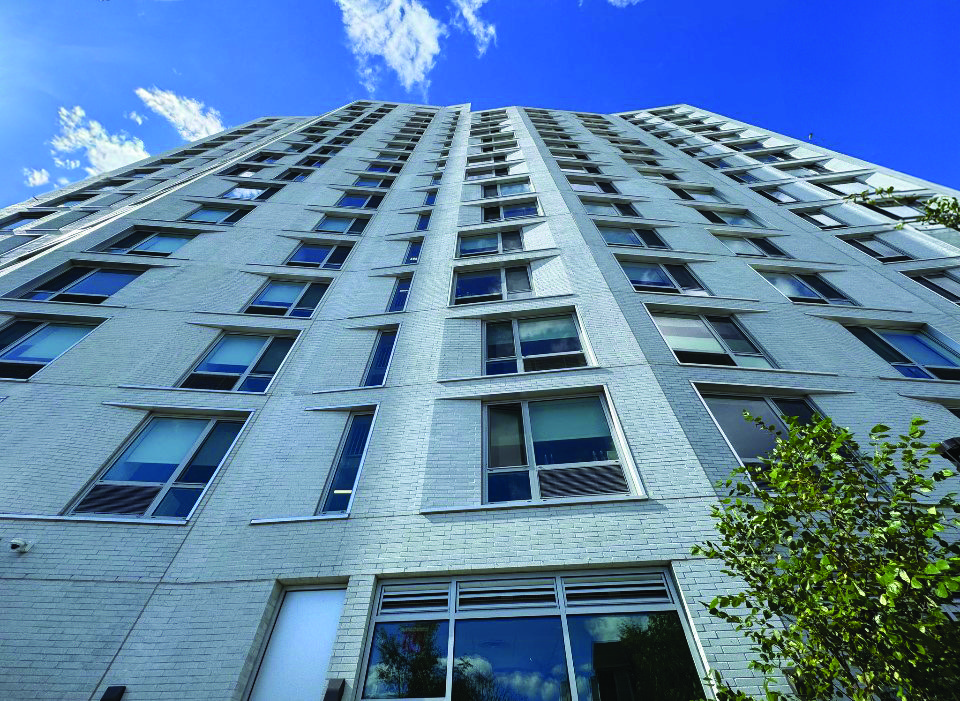

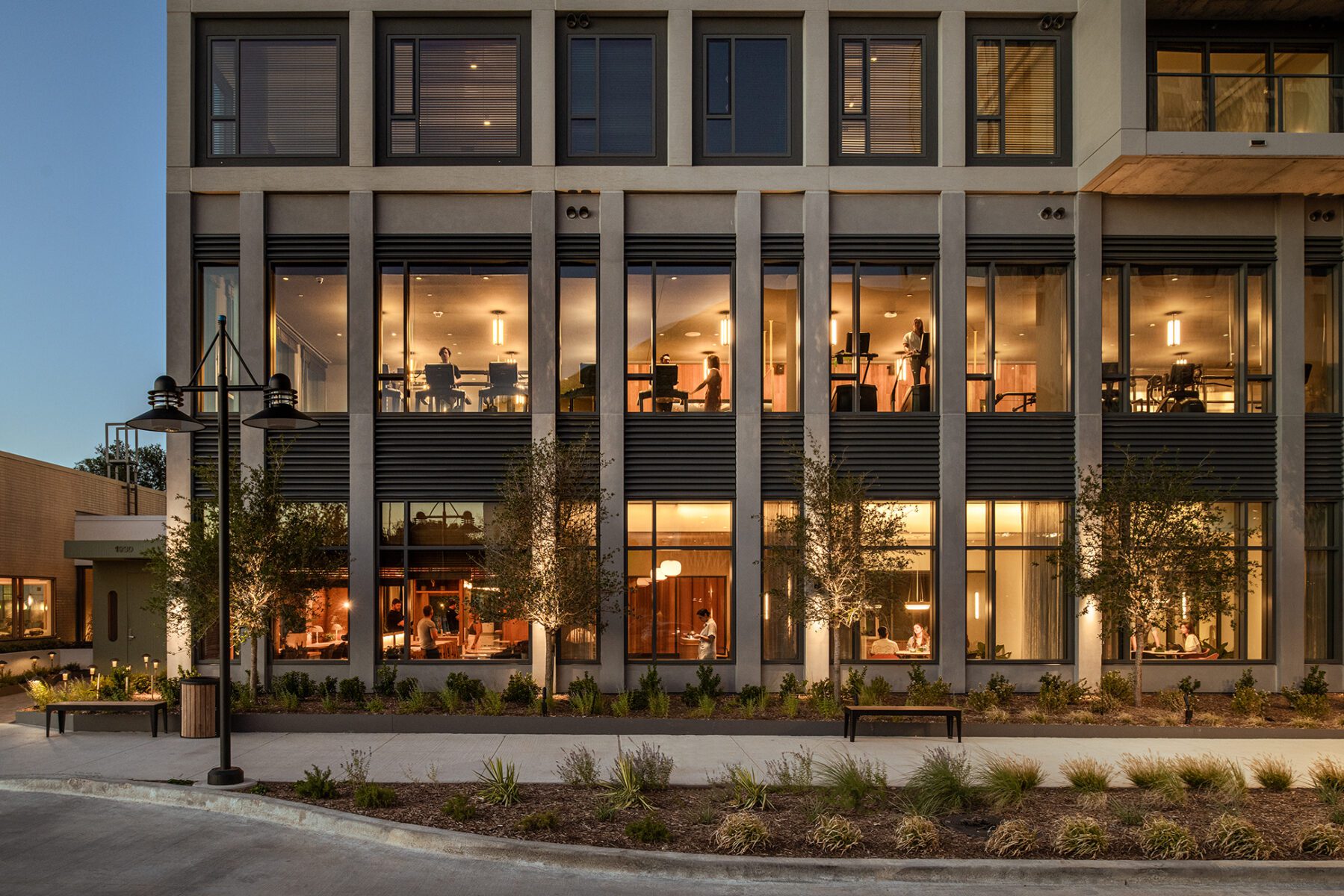

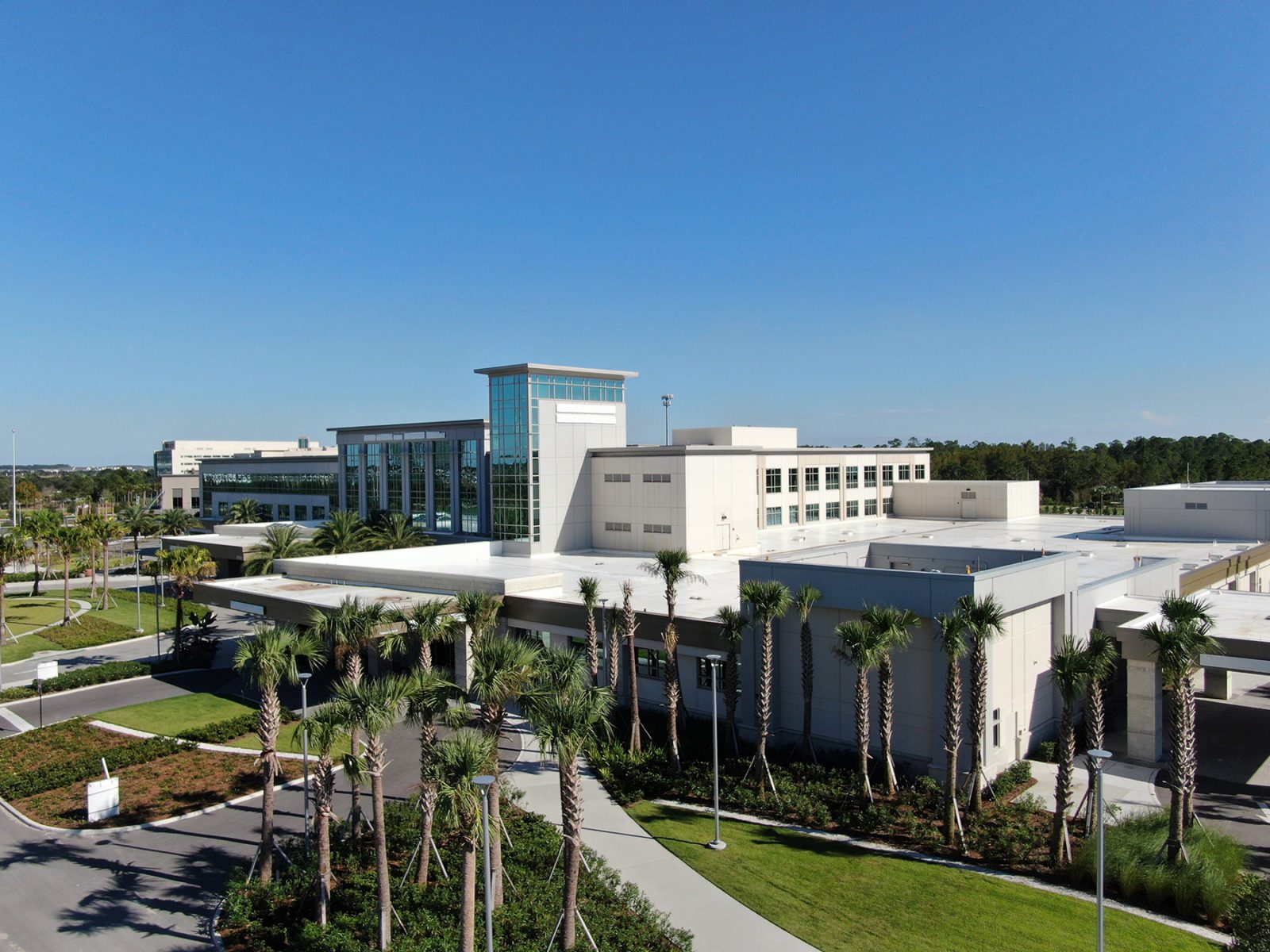

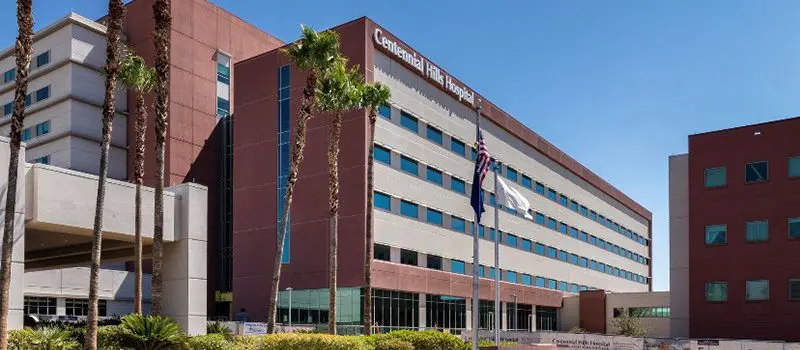

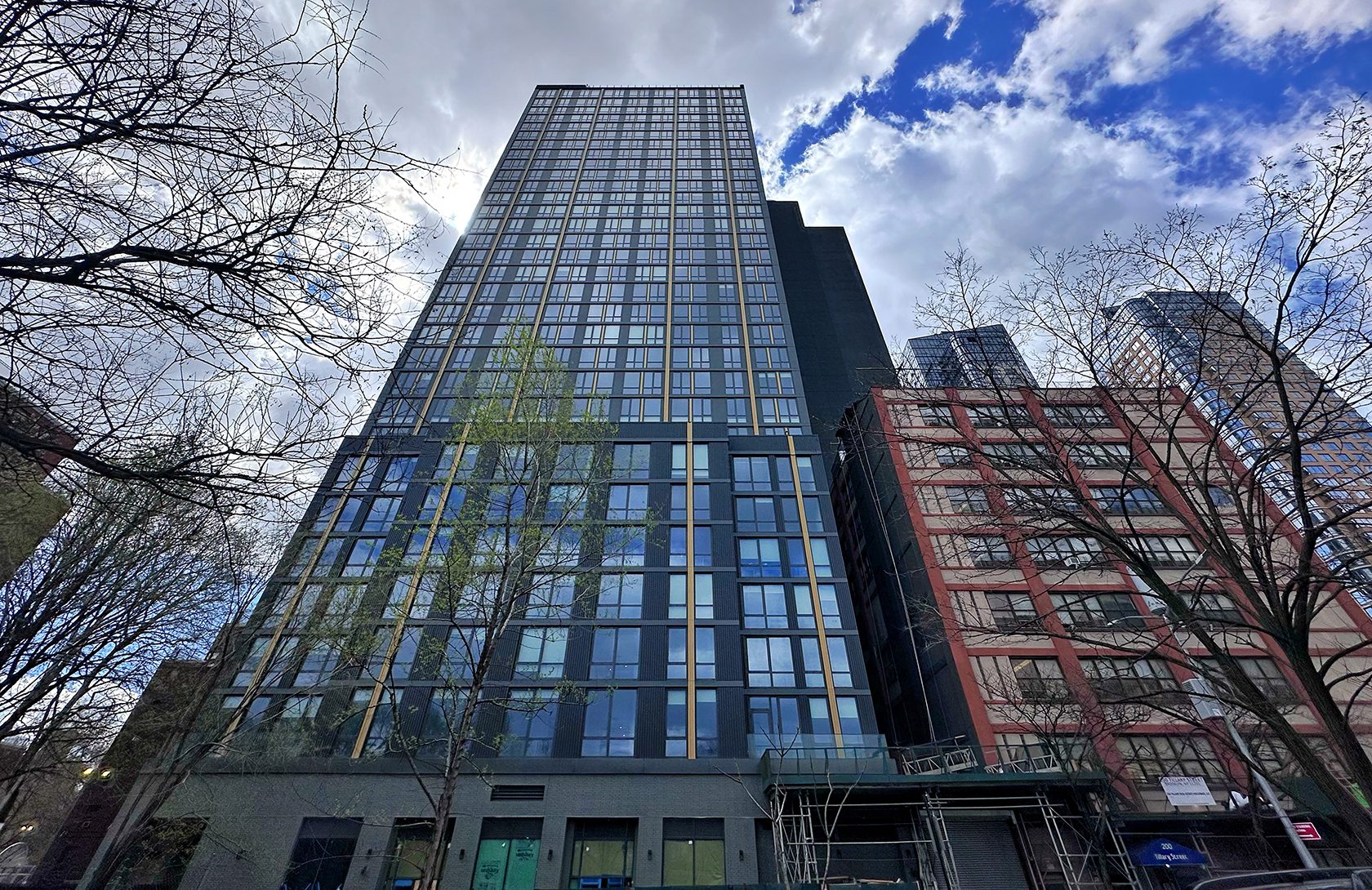

Sto Panel Technology Projects and Case Studies
