Systems
StoTherm<sup>®</sup>ci Lotusan

StoTherm®ci Lotusan

StoTherm ci Lotusan® is Sto’s best continuous insulation wall system (EIFS). It is a high-performance, energy efficient wall cladding that integrates several proven components – StoGuard®, waterproof air barrier, StoTherm® insulated cladding and drainage, and StoLit® Lotusan, a textured finish with self-cleaning properties.

Downloads

System Bulletin

Specifications

Code & Test Reports

System Options


  Standard Finishes    Specialty Finishes    StoColor 800

System information:

Download allZIP

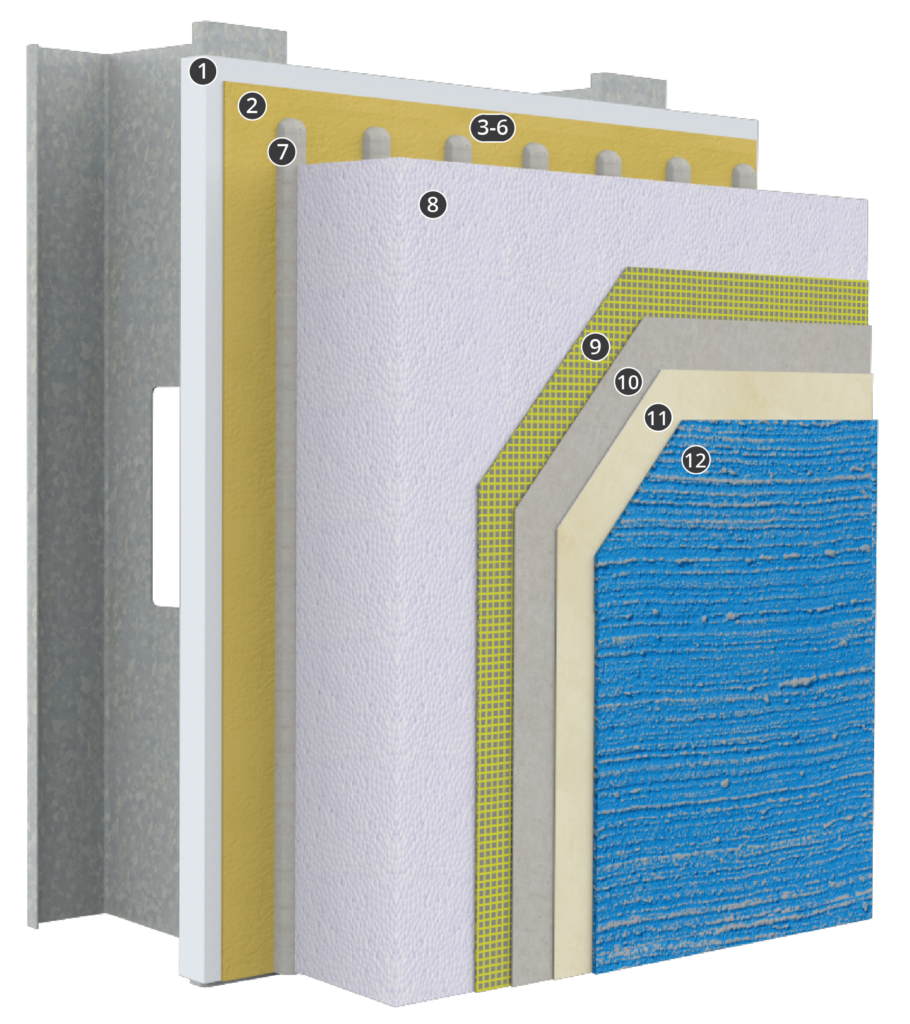

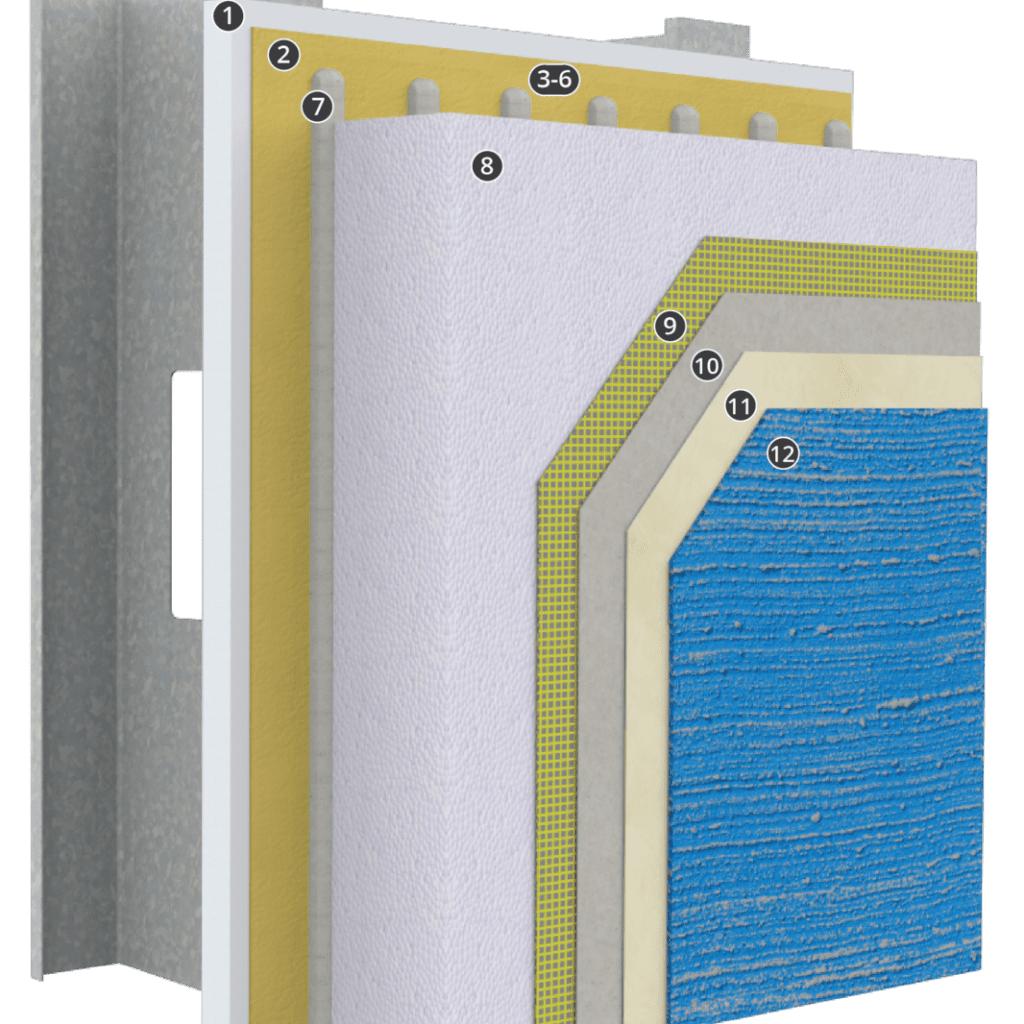

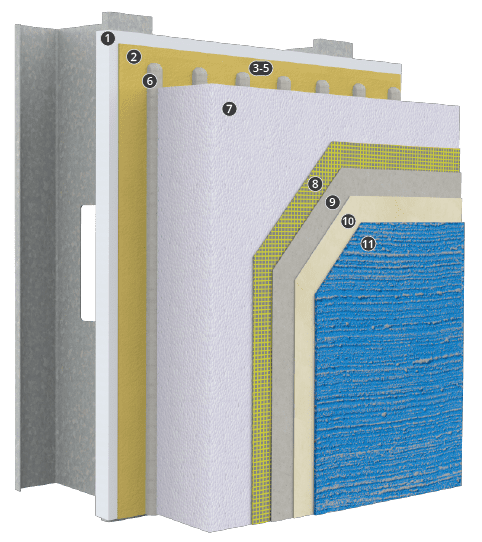

1 Structural Wall Assembly
2 Air & Moisture Barrier: Sto Gold Coat
Bulletin SDS PDF
Alternatives
3 Adhesive: Sto TurboStick
Bulletin SDS PDF
Alternatives
4 Insulation: Sto EPS Insulation Board
Bulletin SDS PDF
5 Mesh: Sto Mesh
Bulletin SDS PDF
Alternatives
6 Basecoat: Sto BTS Plus
Bulletin SDS PDF
Alternatives
7 Primer: StoPrime® Sand
Bulletin SDS PDF
Alternatives
8 Finish: Stolit Lotusan 1.5
Bulletin SDS PDF
Alternatives
StoTherm<sup>®</sup>ci EPS - Commercial

StoTherm®ci EPS - Commercial

Series: 52.xx

StoTherm ci EPS is a high-performance exterior wall system that seamlessly integrates the protection of our state-of-the-art StoGuard air and moisture barrier with continuous insulation (ci) and advanced cavity wall design. This system utilizes a flat-sheet, solid Expanded Polystyrene (EPS) shown on a commercial steel wall frame.

Series Booklet Download All (.zip)
See detail series
StoTherm<sup>®</sup>ci EPS over Masonry

StoTherm®ci EPS over Masonry

Series: 19.xx

StoTherm ci EPS over Masonry is a high-performance exterior wall system that seamlessly integrates the protection of our state-of-the-art StoGuard air and moisture barrier with continuous insulation (ci) and advanced cavity wall design. This system utilizes a flat-sheet, solid Expanded Polystyrene (EPS) shown on a commercial CMU wall frame.

Series Booklet Download All (.zip)
See detail series
StoTherm<sup>®</sup>ci EPS - Residential

StoTherm®ci EPS - Residential

Series: 2.xx

StoTherm ci EPS is a high-performance exterior wall system that seamlessly integrates the protection of our state-of-the-art StoGuard air and moisture barrier with continuous insulation (ci) and advanced cavity wall design. This system utilizes a flat-sheet, solid Expanded Polystyrene (EPS) shown on a wood residential frame wall.

Series Booklet Download All (.zip)
See detail series
Life Cycle Assessment Summary – 0110 BSc
File Ref.# 0110 BSc
pdf LINK
Adhesive vs Mechanical Fastening of StoTherm ci – 0409 E
File Ref.# 0409 E
pdf LINK
Application of StoTherm ci to Stoguard VaporSeal – 0709 E
File Ref.# 0709 E
pdf LINK
Temporary Heating of EIFS Installations in Cold Weather – 1001 E
File Ref.# 1001 E
pdf LINK
Critical Detail Checklist for Wall Assemblies – 0403 BSc
File Ref.# 0403 BSc
pdf LINK
Fading in StoTherm ci and Coatings – 0893 EC
File Ref.# 0893 EC
pdf LINK
Moisture Control Principles of Wall Assemblies – 0603 BSc
File Ref.# 0603 BSc
pdf LINK
Restrictions Dark Colors on ci (EIFS) Systems – 1294 E
File Ref.# 1294 E
pdf LINK
Sto Product and Compliance with NFPA 285 – 0514 E
File Ref.# 0514 E
pdf LINK
Wind Load and Adhesively Attached StoTherm Systems – 0894 E
File Ref.# 0894 E
pdf LINK
Sto Cladding Systems Compatibility w Huber Zip Systems – 1110 BSc
File Ref.# 1110 BSc
pdf LINK
Critical Lighting of Wall Surfaces – 1006 E
File Ref.# 1006 E
pdf LINK
Respirable Crystalline Silica Standard
File Ref.# 0518 BSc
pdf LINK
Sto Gold Coat Adhesion of Silicone Sealants – 0319 BSc
File Ref.# 0319 BSc
pdf LINK
StoTherm ci – S881A
File Ref.# S881
pdf LINK
Sto TurboStick Brochure – S838
File Ref.# S838
pdf LINK
Sto Mesh Corner Bead – S885
File Ref.# S885
pdf LINK
Sto Drip Edge Profile – S886
File Ref.# S886
pdf LINK
StoColor Lotusan Brochure – S647C
File Ref.# S647C
pdf LINK
Sto High Performance Coatings – S610G
File Ref.# S610G
pdf LINK
Stolit Milano Sell Sheet – S869
File Ref.# S869
pdf LINK
Sto Limestone Finish – S158D
File Ref.# S158D
pdf LINK
Sto Decocoat – S305C
File Ref.# S305C
pdf LINK
StoCreativ Granite – S799C
File Ref.# S799C
pdf LINK
StoCreativ Lux – S850A
File Ref.# S850A
pdf LINK
StoTique- S645
File Ref.# S645A
pdf LINK
StoCreativ Brick – S877
File Ref.# S877
pdf LINK
StoGuard Products
See Video Series
Sto Adhesives
See Video Series
Sto Finishes & Coatings
See Video Series
