NEW Sto Fireblocking Solution to Meet 2022 New York City Building Code

StoTherm ci PLY

StoTherm ci PLY

High-performance, large missile impact continuous insulation wall system over plywood sheathing, including StoGuard air and water-resistive barrier. Applicable for both field-application and prefabrication.*

*Sheathing Reinforcement for LM rating only: Sto Basecoat and Sto Armor Mat XX mesh

Downloads

Specifications

Code & Test Reports

Details

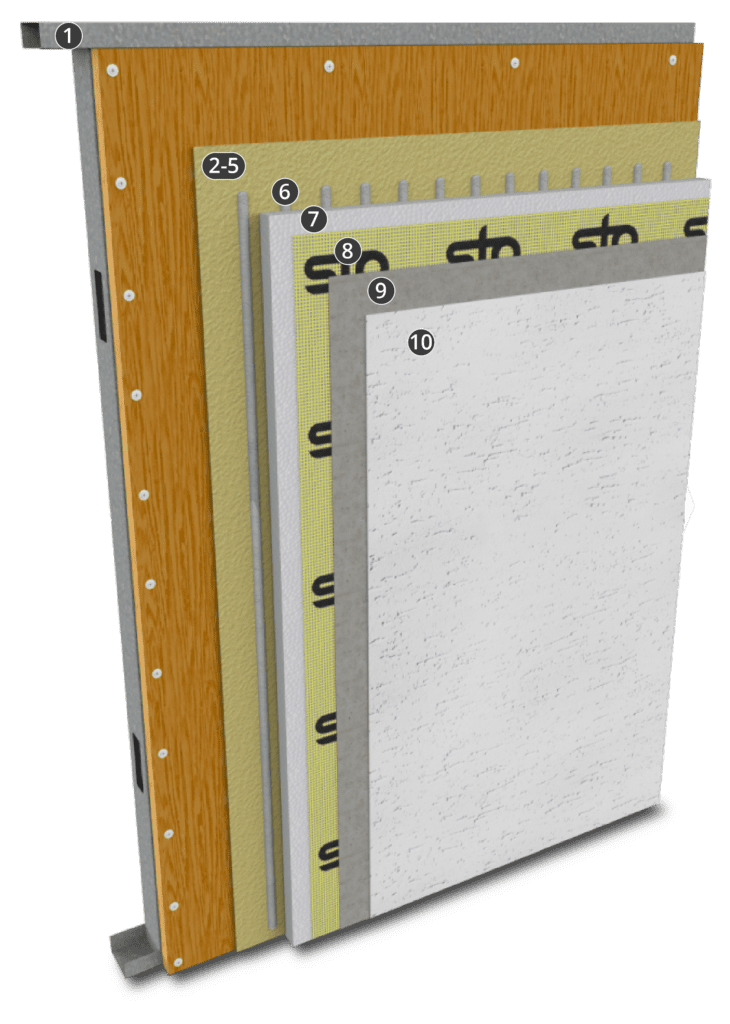

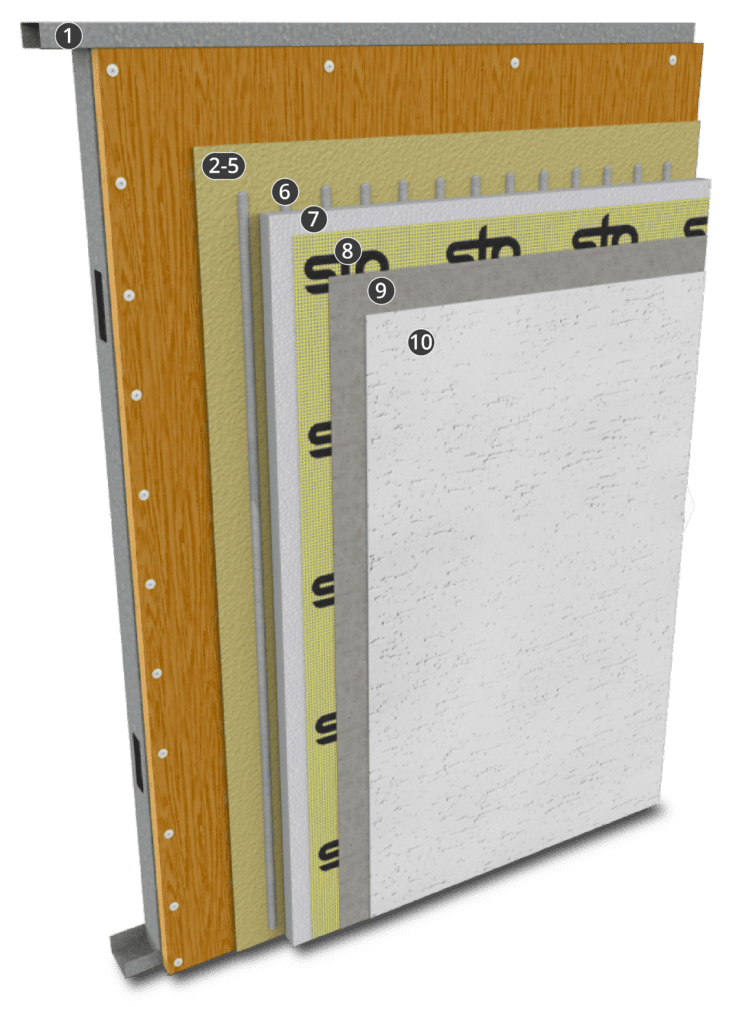

System information:

Download allZIP
1 Structural Wall Assembly
2 Air and Water-Resistive Barrier - Wall Membrane: Sto Gold Coat
Bulletin SDS PDF
3 StoGuard Detail Component -
Sheathing Joints and Corners, Flashing and
Rough Opening Protection, Penetrations: Sto Gold Coat with: StoGuard® Fabric
Bulletin PDF
4 StoGuard Detail Component - Static Joints and Seams: Sto Gold Coat and: StoGuard® Fabric
Bulletin PDF
5 StoGuard Detail Component - Dynamic Joints ans Seams: StoGuard® Conformable Membrane
Bulletin PDF
6 Adhesive: Sto Primer/Adhesive-B
Bulletin SDS PDF
Alternatives
7 Insulation: Miami-Dade County Listed EPS, 1.0 pcf, Min 1" thick
Alternatives
8 Mesh: Sto Mesh
Bulletin SDS PDF
9 Basecoat: Sto Primer/Adhesive-B
Bulletin SDS PDF
10 Finish: StoTherm ci Finish Selector
Life Cycle Assessment Summary – 0110 BSc
File Ref.# 0110 BSc
pdf LINK
Adhesive vs Mechanical Fastening of StoTherm ci – 0409 E
File Ref.# 0409 E
pdf LINK
Temporary Heating of EIFS Installations in Cold Weather – 1001 E
File Ref.# 1001 E
pdf LINK
Critical Detail Checklist for Wall Assemblies – 0403 BSc
File Ref.# 0403 BSc
pdf LINK
Fading in StoTherm ci and Coatings – 0893 EC
File Ref.# 0893 EC
pdf LINK
Moisture Control Principles of Wall Assemblies – 0603 BSc
File Ref.# 0603 BSc
pdf LINK
Restrictions Dark Colors on ci (EIFS) Systems – 1294 E
File Ref.# 1294 E
pdf LINK
Sto Product and Compliance with NFPA 285 – 0514 E
File Ref.# 0514 E
pdf LINK
Wind Load and Adhesively Attached StoTherm Systems – 0894 E
File Ref.# 0894 E
pdf LINK
Critical Lighting of Wall Surfaces – 1006 E
File Ref.# 1006 E
pdf LINK
Respirable Crystalline Silica Standard
File Ref.# 0518 BSc
pdf LINK
Combustible AWRBs in Noncombustible Construction
File Ref.# 0825 BSc
pdf LINK
StoTherm ci – S881
File Ref.# S881
pdf LINK
Sto TurboStick Brochure – S838
File Ref.# S838
pdf LINK
Sto Mesh Corner Bead – S885
File Ref.# S885
pdf LINK
Sto Drip Edge Profile – S886
File Ref.# S886
pdf LINK
StoSeal STPE Sealant
File Ref.# S993
pdf LINK
Sto High Velocity Hurricane Zone (HVHZ) Systems Brochure
File Ref.# S556
pdf LINK
StoGuard Products
See Video Series
Sto Adhesives
See Video Series
Sto Finishes & Coatings
See Video Series
