Rainscreen

Finally, A Complete Rainscreen® System

Today’s rain screen façade panels are available in a variety of materials, shapes, and colors providing designers with nearly unlimited aesthetic options.  But many are just that, a façade panel, and not a complete system.

StoVentec™ Rainscreen® systems are different.

StoVentec™ Rainscreen® systems are complete, with all the system components – including the air and moisture barrier, thermal insulation, sub-construction and façade panel – engineered to perform together. And they offer the widest variety of aesthetic options available, including colors, shapes, textures, even glass – in a single source system backed by a 10-year system warranty.

Aesthetic Options

What is a Rainscreen System?

Rainscreen systems are designed to have a ventilation space, or air gap between the exterior cladding panel and the moisture resistant surface of an air and moisture barrier applied to the sheathing.  The air gap creates a capillary break and allows drainage and evaporation of moisture that gets behind the cladding panel.  This creates a highperformance façade system that is both attractive and highly resistant to moisture intrusion.

close
What is a Rainscreen System?
Want More Info about StoVentec?

StoVentec Glass

StoVentec Glass Rainscreen systems combine proven performance and durability with the beauty and allure of glass. Taken together, the solution provides superior weather tightness, thermal performance, fire protection and the kind of compelling aesthetic designers seek.

Stunning, Durable Color

Wolverhampton High School

StoVentec Glass panels feature a proprietary and super-resilient substrate to which back-painted and tempered glass panes are permanently bonded. Color will not wear, scratch, fade or incur water damage.  Choose from 63 standard colors, or a broad selection of custom colors.  Or the panels may be digitally back-printed with custom imagery to create a truly one-of-a-kind signature facade.

Unique Shapes and Patterns

The design flexibility of StoVentec Glass extends the remarkable appearance possibilities of glass facades. Panels can be supplied in square, rectangular, trapezoidal and parallelogram shapes and can be designed to incorporate LED lighting and other effects.

Multiple glass panels can be bonded to the same StoVentec Carrier Board, to create unique stripes or patterns, while keeping installation easy.

StoVentec Render

StoVentec Render employs the same key components as StoVentec Glass to deliver superior performance. Render façade panels are field installed, flexible and easy to cut, making it simple to achieve unique architectural shapes including seam free curved surfaces.  Sto’s wide variety of architectural finish systems provides the broadest range of aesthetics available in a rainscreen system, allowing designers to create unique walls that perform seamlessly.

Complete System

“A complete Rainscreen® wall system from a single manufacturer you can trust. “

Learn more about StoVentec systems

As the only complete Rainscreen® wall system on the market – a proven system that includes the air and moisture barrier, continuous insulation, sub-framing, and prefabricated glass facade panels – StoVentec provides North American architects with powerful advantages that multi-sourced, multi-component rain screen wall assemblies simply can’t, including:

Vastly Reduced Risk – A complete, fully-tested and code-compliant high-performance Rainscreen® wall system from one of the world’s top building materials manufacturers.

Simplified Planning and Logistics – Partner with just one manufacturer on your wall design and delivery.

Full System Warranty – A 10-year warranty covering the entire system from Sto, a company that architects, contractors and owners trust.

Tested and Proven

Millions of square feet of StoVentec Rainscreen® wall systems have been installed on hundreds of impressive buildings across Europe since the early 2000s, providing signature aesthetics, superior performance and enhanced life safety. StoVentec systems have earned DIBt (German Institute of Construction Technology) and BBA (British Board of Agreement) approvals. Now, StoVentec Rainscreen® systems provide the very same proven benefits to the North American market.

North America Tested & Approved

Based on extensive fire and durability testing, StoVentec Systems conform with U.S. and Canadian code requirements for use on noncombustible construction (Intertek Division 7 Design Listings), air leakage resistance, and water resistance (ICC ESR 1233).

StoVentec System Testing

NFPA 285
CAN/ULC-S134
ASTM E119
ASTM E84
Meets acceptance criteria for use on multi-story  noncombustible construction, Types I, II, III and IV.
ASTM E330 Ultimate wind load capacity -100 lb.ft2 (4.78 kN/m2)
AAMA 509 W1 water penetration resistance

V2 ventilation rating

Case Studies
Want More Info About StoVentec?
  • Please review our updated Privacy Policy

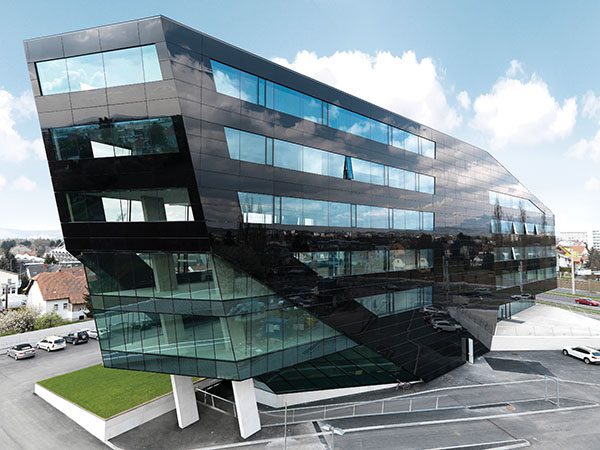

MP09 Residential - Commercial Building
