StoVentec® Render

StoVentec® Render


StoVentec® Render is a drained and back-ventilated rainscreen wall system from a single source that combines superior air and weather tightness with excellent thermal performance and fire protection. It incorporates noncombustible continuous exterior insulation and a continuous air and moisture barrier with StoVentro™ Sub-construction and Sto finish systems to produce an advanced high performance wall assembly. The StoVentec® carrier board is a unique board that combines lightweight and high compressive strength and allows for seamless walls and curved surfaces that can’t be achieved with other claddings.

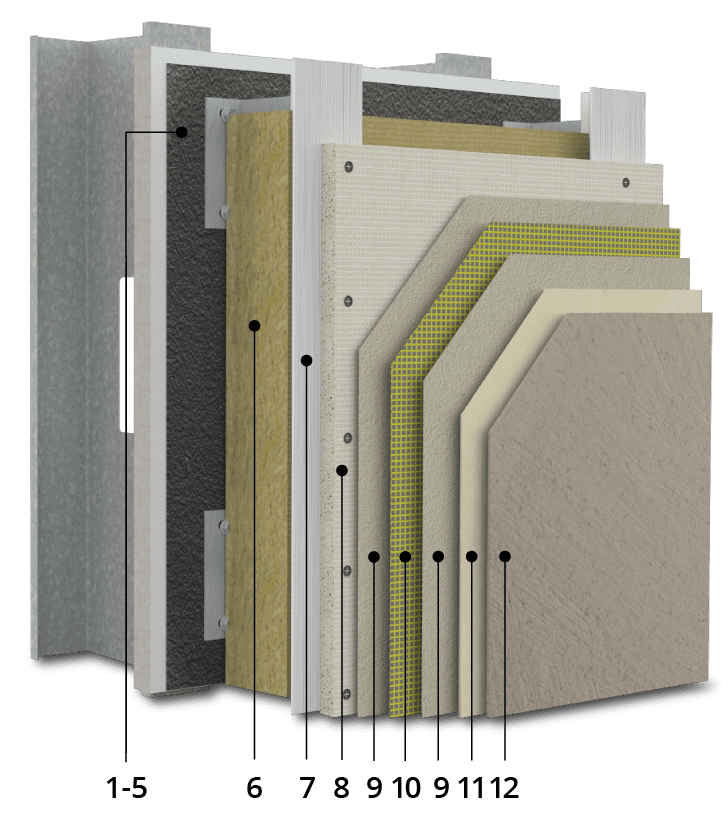

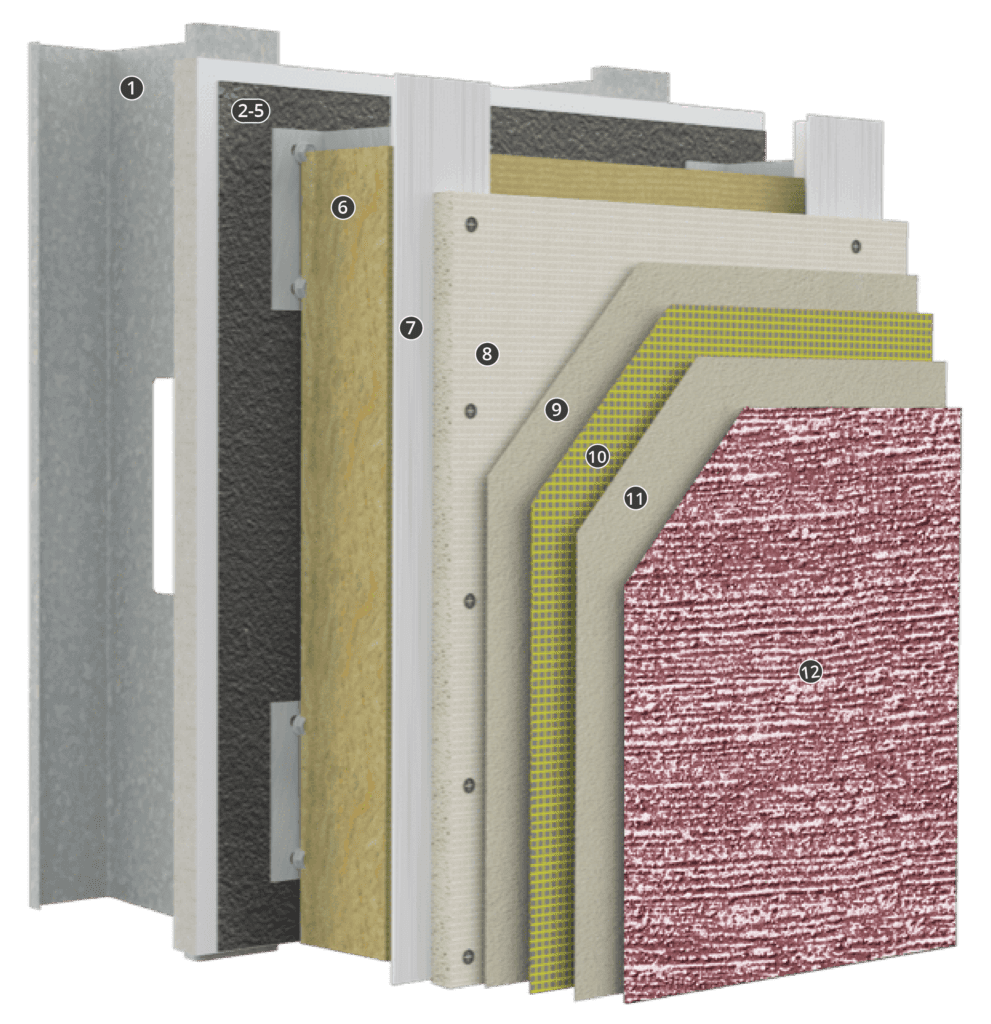

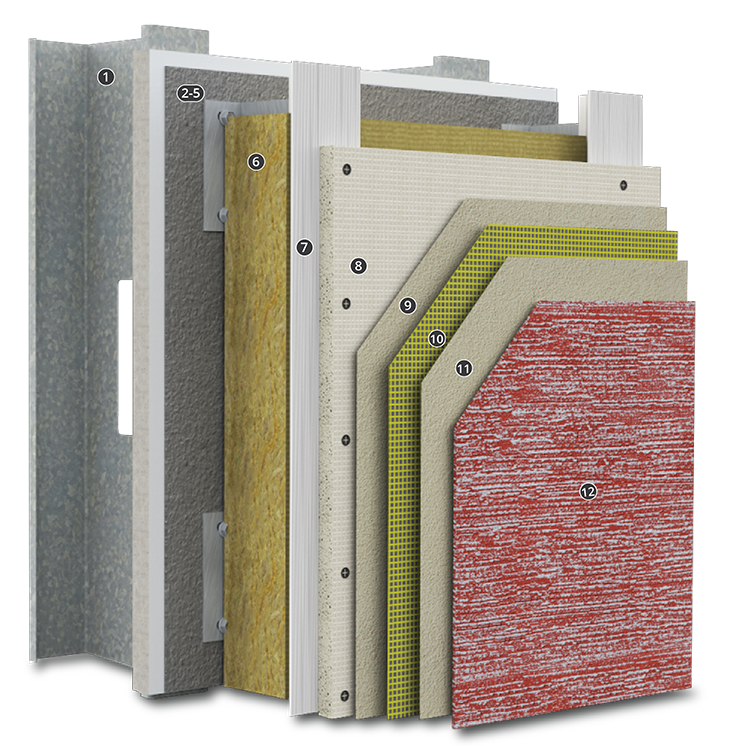

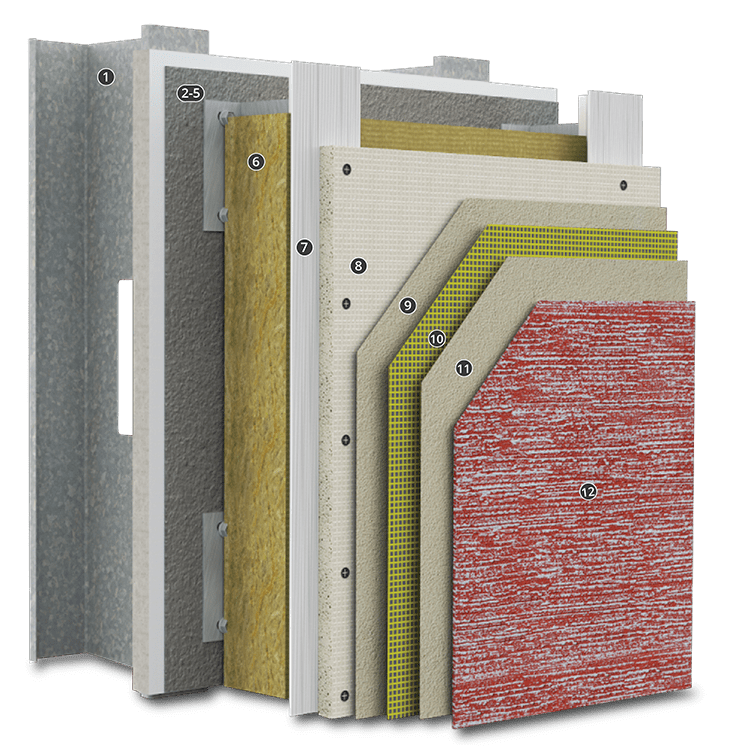

System information:

1 Air & Moisture Barrier - Wall Membrane: Sto AirSeal® – Substrate Driven
2 Air & Moisture Barrier - Sheathing Joints & Corners: Sto RapidGuard®
3 Air & Moisture Barrier - Rough Opening Protection: Sto RapidGuard®
4 Air & Moisture Barrier - Flashing and Penetration: Sto RapidGuard®
5 Air & Moisture Barrier - Dynamic Joints and Seams: StoGuard Transition Membrane
Bulletin PDF
7 Sub-construction: StoVentro Subconstruction
Bulletin PDF
8 Carrier Board: StoVentec® Carrier Board A+
Bulletin PDF
10 Reinforcing Mesh: Sto Mesh
11 Primer: StoPrime® Sand
12 Finishes: Stolit Lotusan 1.0
TH_304-SVR Pre-Engineered StoVentec Render
File Ref.# 304-SVR
StoVentec Render Installation
