The StoVentec® Rainscreen® System

For buildings that look great and perform even better.

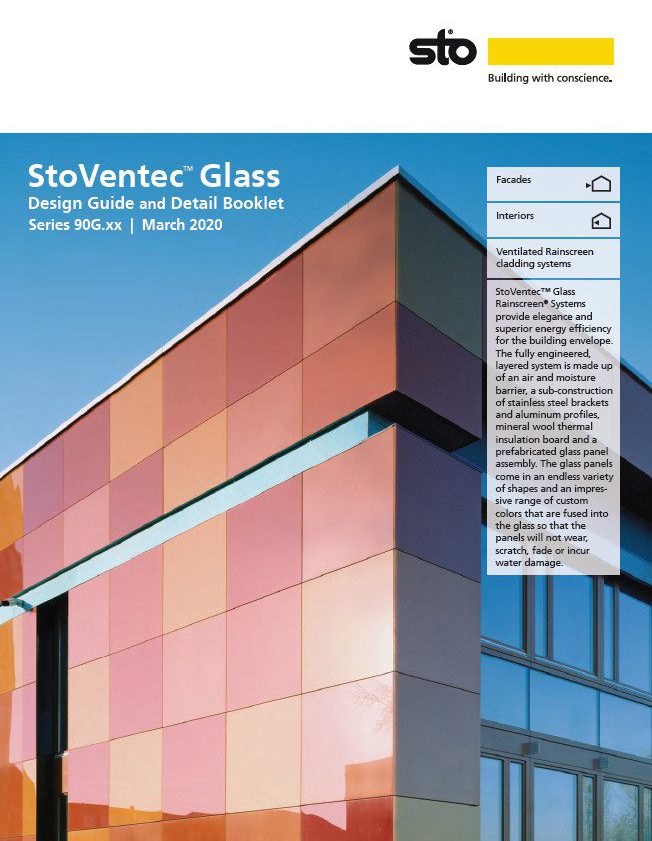

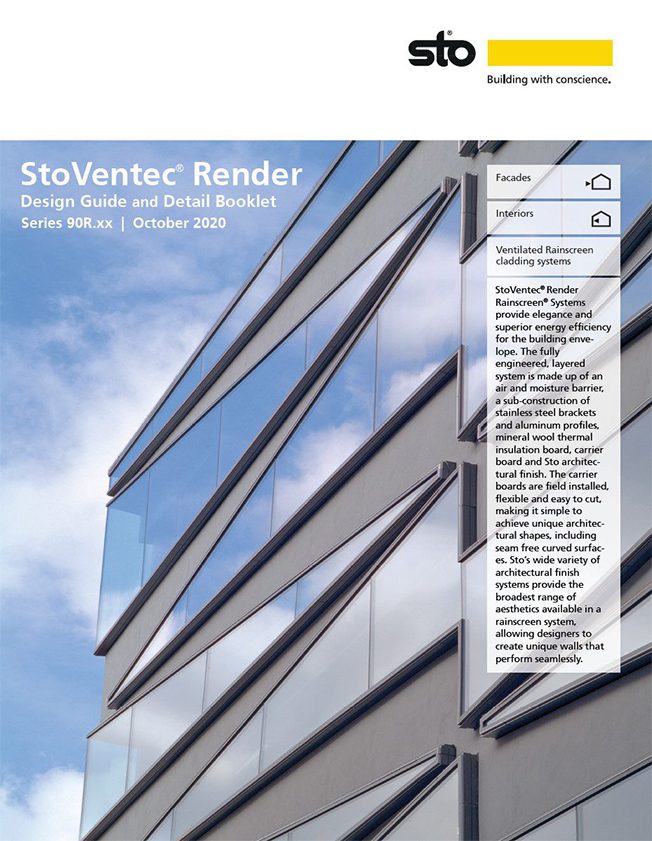

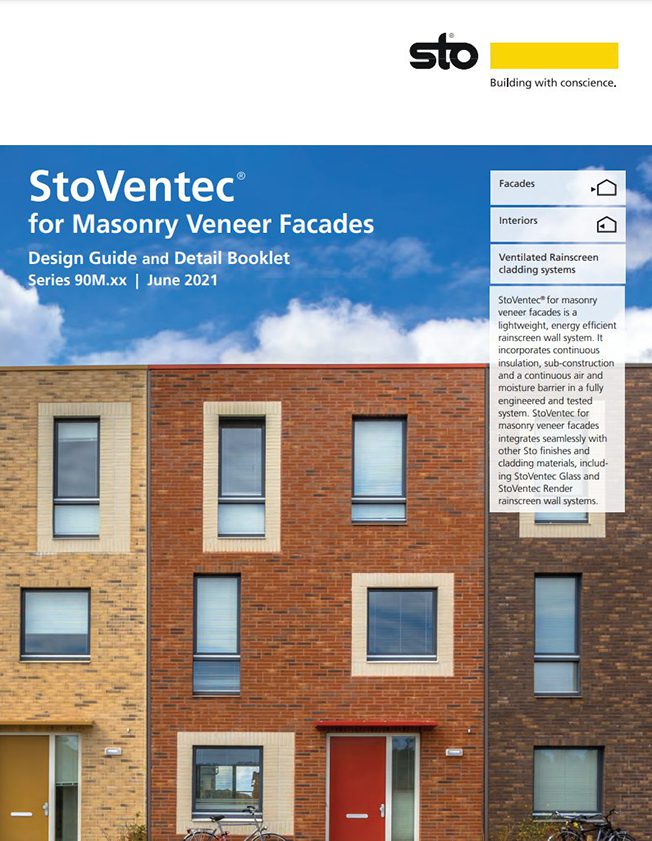

See how the StoVentec® Rainscreen® system can enhance your architectural projects with our Design Guides.

Explore StoVentec Rainscreens with our comprehensive design guides. Download our guides to discover a redefined Rainscreen system that delivers on performance, durability, and the unique blends of glass, render, and masonry veneer facades (MVF) from one supplier. Unleash your creativity and elevate your architectural projects with these invaluable resources. Get started today with your original Rainscreen design.

The StoVentec® Rainscreen® Advantage

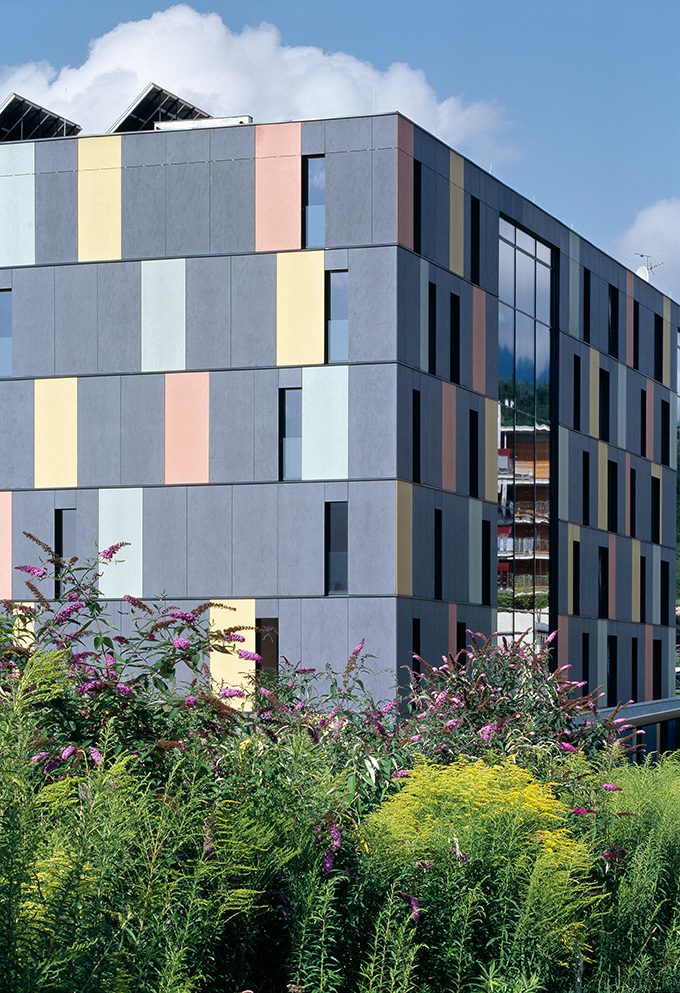

Mix and match any cladding texture, material, shape, or color to create a true original.

With StoVentec systems, you also get options for thin masonry veneer cladding and brilliant back-painted glass cladding, even custom full-color HD digitally printed glass for a truly one-of-a-kind building facade.

“For this project, we were really looking for aesthetics, but we had trust in Sto’s product performance from our previous experiences with them. This made StoVentec an easy choice for both function and looks.”

Amber Buscarello AIA Architect Associate
Download Case Study

“The solutions from Sto enabled us to keep the exterior envelope intact so we avoided energy and water intrusion concerns. We were able to dress up the exterior without being invasive or labor intensive. The grid system allowed the freedom to choose sizes and colors to create our vision with a unique pattern.”

Neil Missling AIA, NCARB Associate
Download Case Study

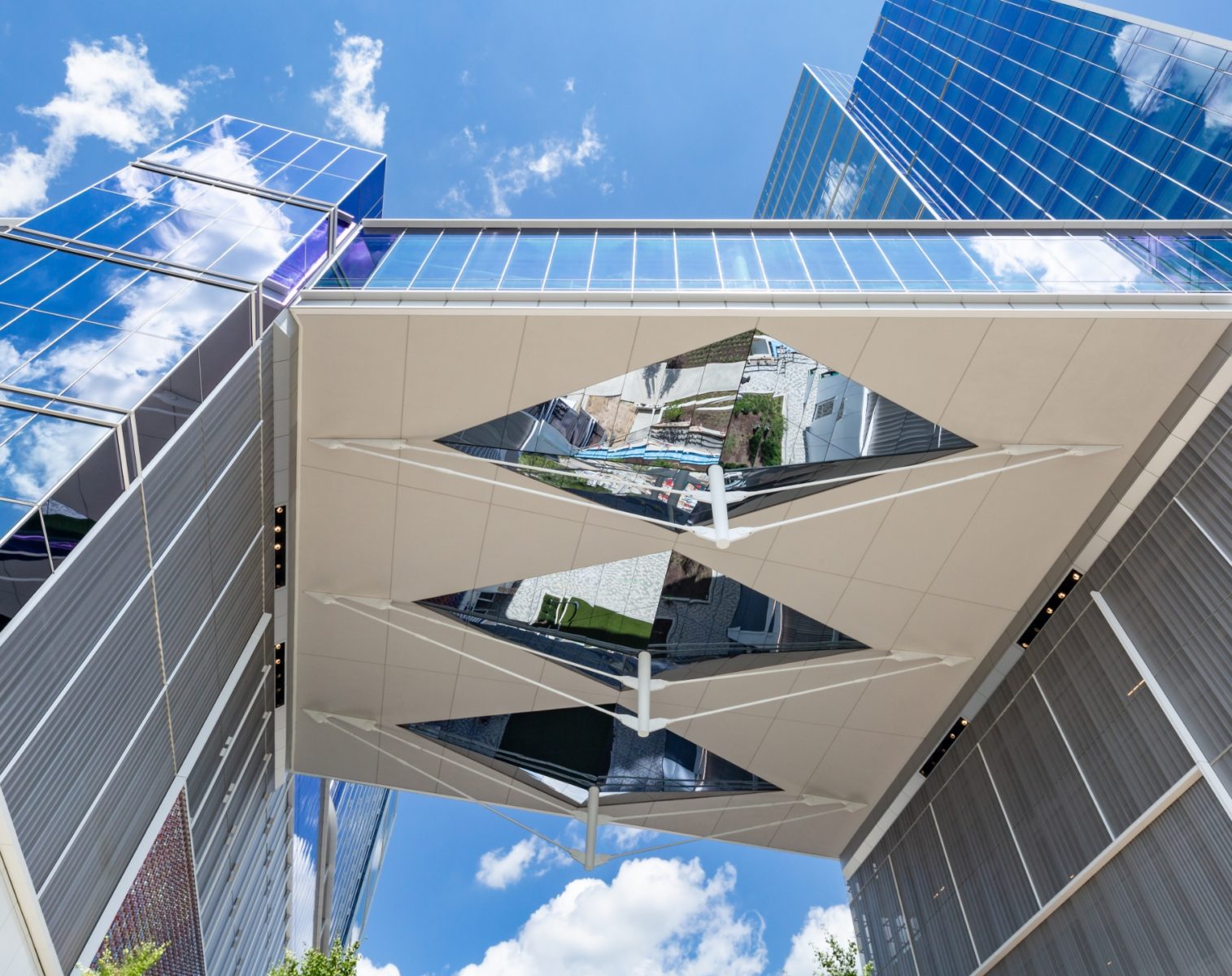

“It is nice that StoVentec® Render integrates with the glass system. In fact, we have used it on many projects for soffits because of its exceptional durability.”

Jennifer Swan AIA, Associate, Senior Architectural Project Coordinator
Download Case Study

The most versatile Rainscreen® system available.

From glass to masonry to render, from 66 colors to a range of texture options, from AAMA to NFPA, the StoVentec® Rainscreen® system has you covered.

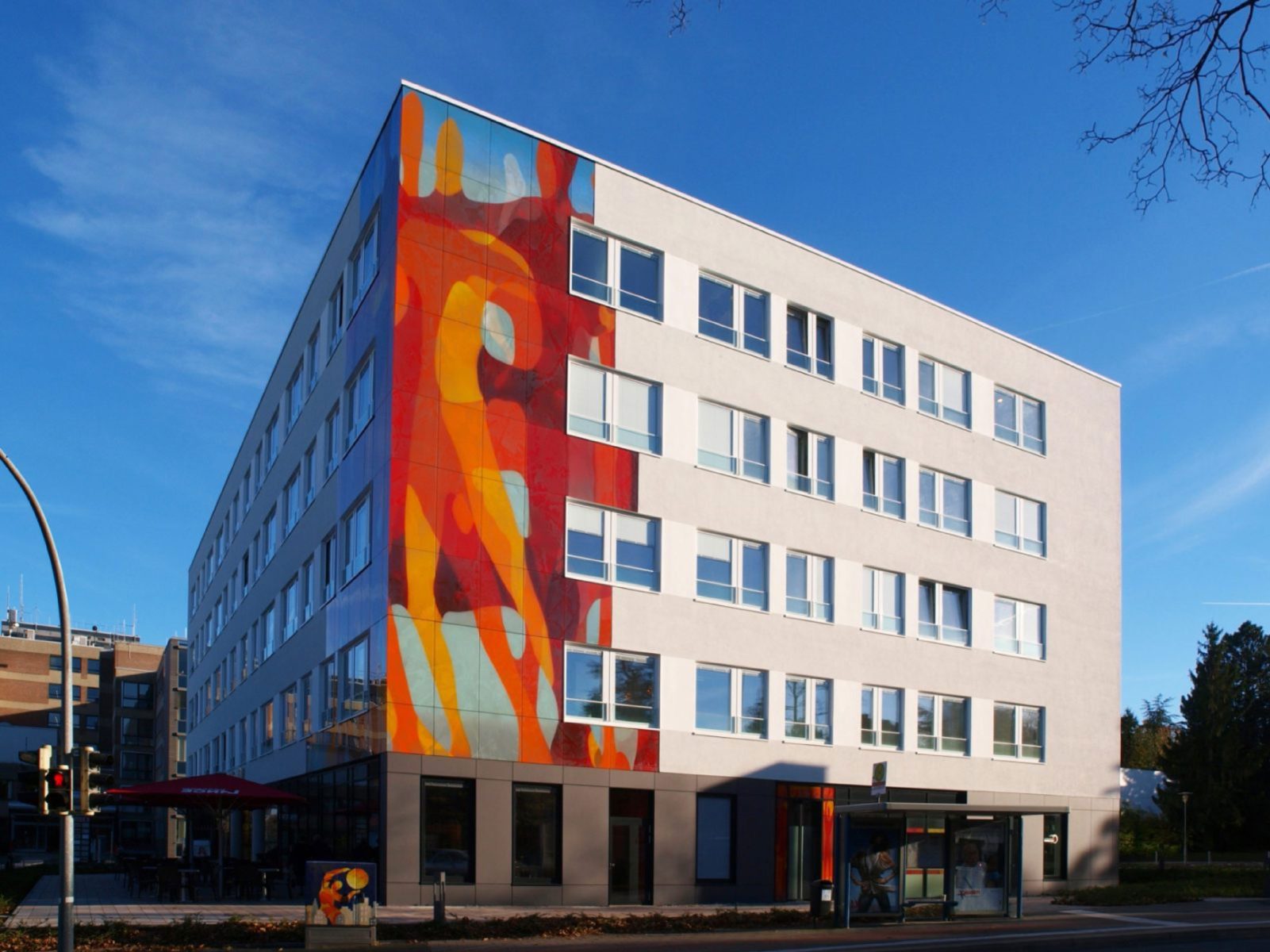

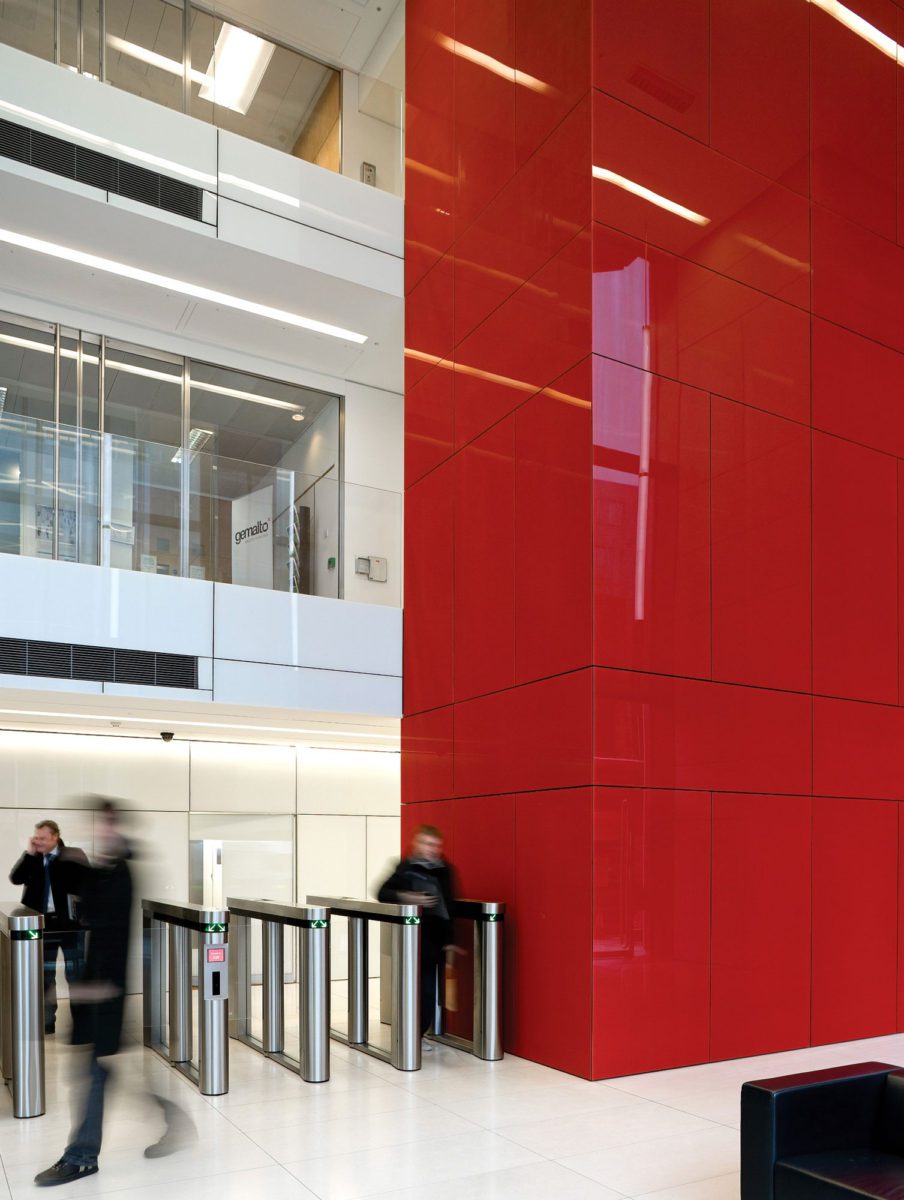

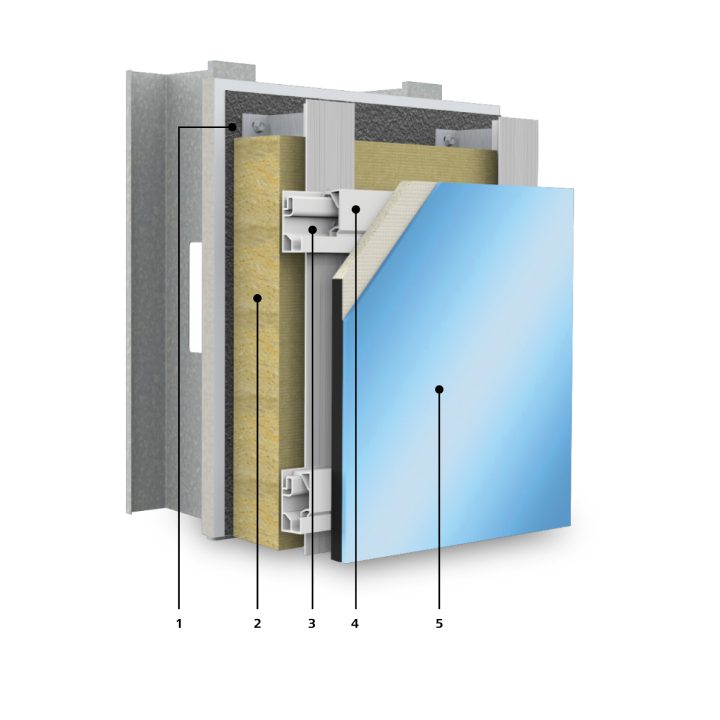

StoVentec®Glass: Smooth, reflective, brilliant

StoVentec Glass is a ventilated Rainscreen wall system consisting of durable, opaque glass-faced panels, thermal insulation, sub-construction, and a continuous air and water-resistive barrier. Cladding panels faced with back-painted or digitally-printed glass are available in a wide range of sizes and in 66 standard colors.

System Components:

  1. StoGuard® air and water-resistive barrier – Featuring Sto AirSeal® the StoGuard® system provides seamless and fully integrated air and moisture control.
  2. Thermal Insulation – Owens Corning Thermafiber® RainBarrier® 45 mineral wool made of non-combustible fiber. Variable thicknesses can accommodate for design thermal requirements.

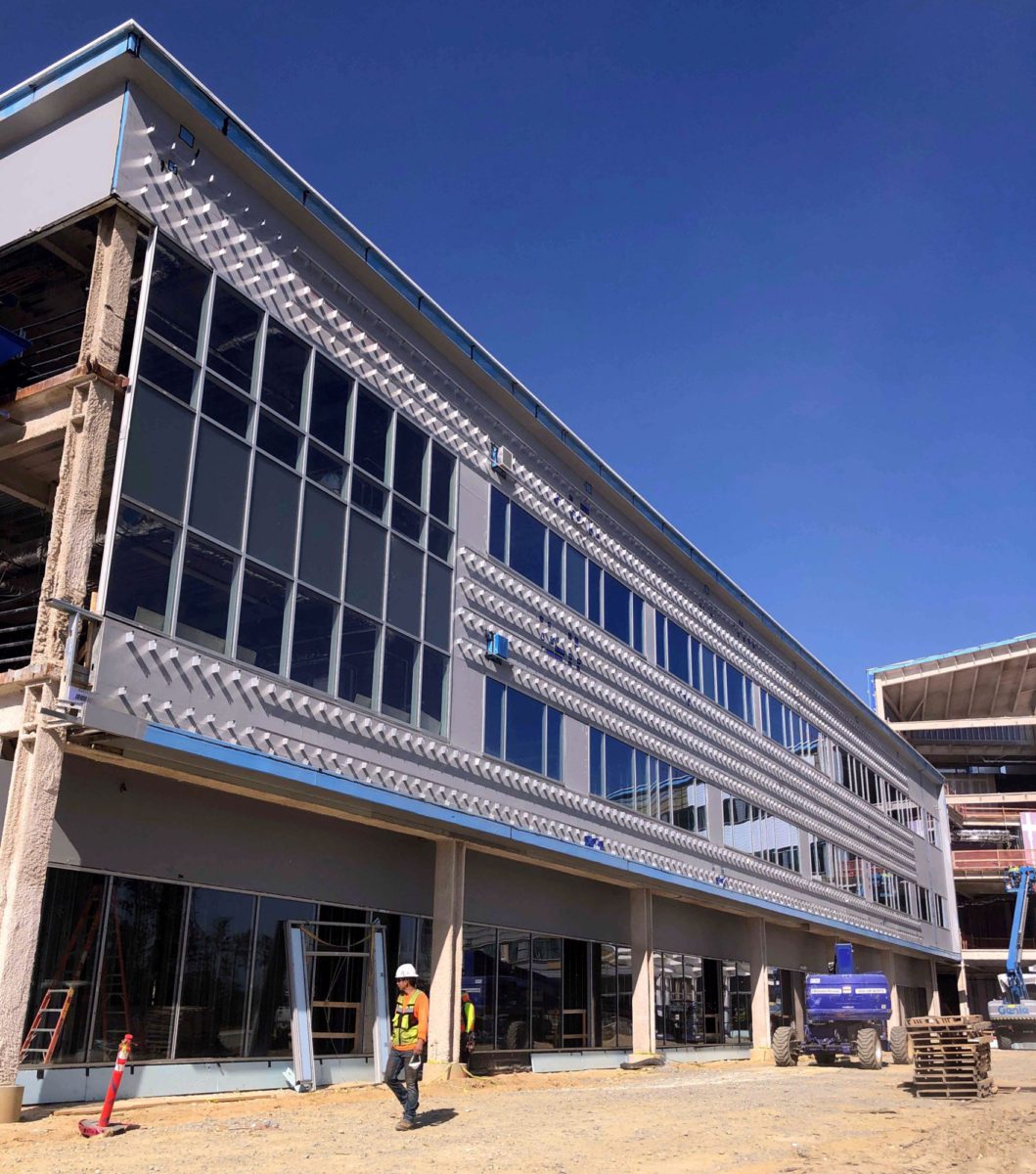

  3. StoVentro™ Sub-Construction – An engineered system consisting of StoVentro Brackets with vertical and horizontal StoVentro T-Profiles to provide the structural link between the facade and supporting wall construction.
  4. StoVentro™ Agraffe Profiles – Part of the StoVentro sub-construction system, StoVentro Agraffe Profiles allow for quick and simple onsite installation of glass panels.
  5. StoVentec® Glass Panel – A composite panel with opaque glass fully bonded to StoVentec Carrier Board A+; a backing board made of 96% recycled glass.

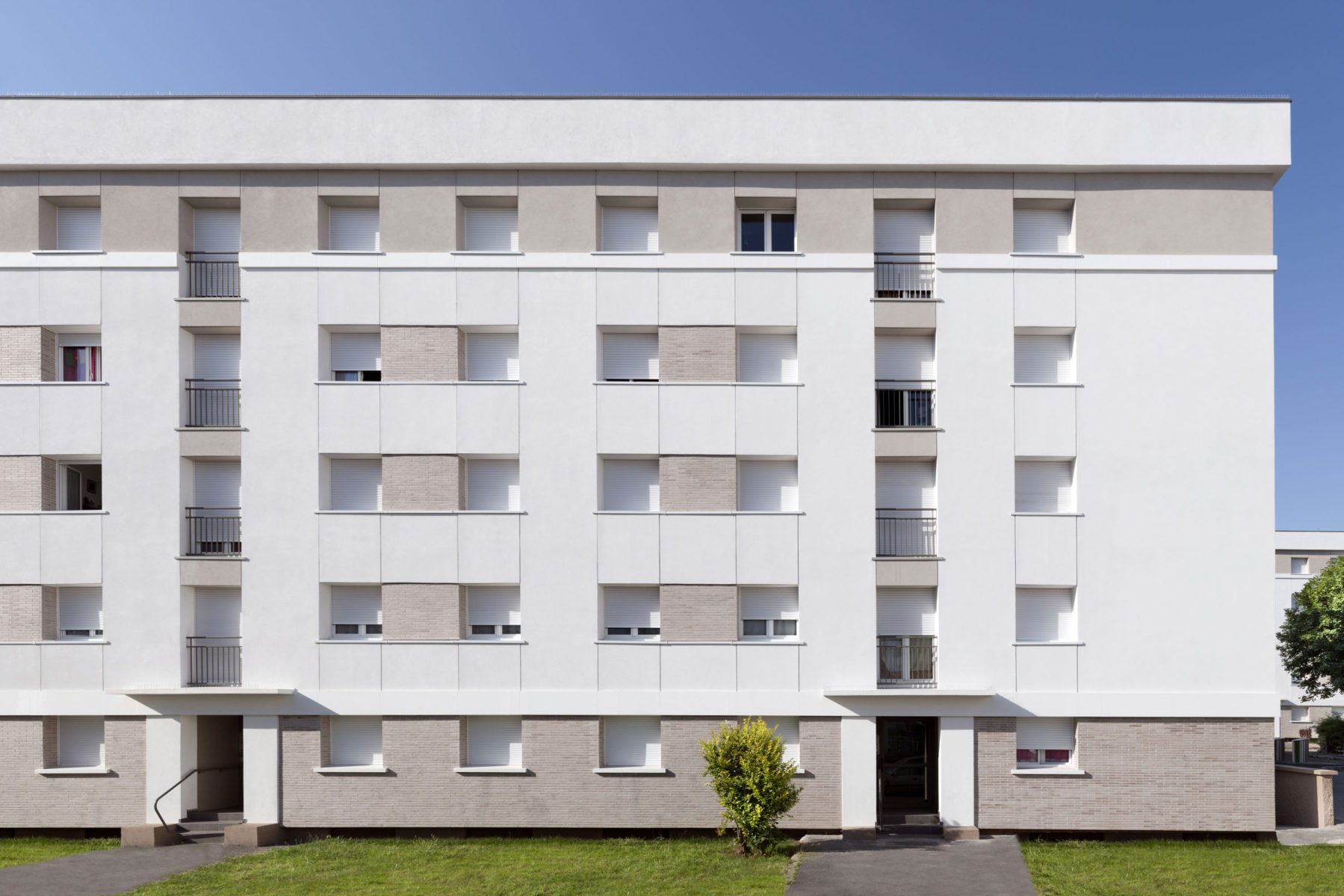

StoVentec for masonry veneer facades: Classic looks with advanced performance

With StoVentec for masonry veneer facades drained and back-ventilated Rainscreen wall system, you achieve the classic look of masonry far faster and easier; at just a fraction of the weight; and with the advanced air, thermal, and moisture control you expect from StoVentec wall systems. StoVentec for masonry veneer facades can be used with any thin brick in conformance with applicable building code requirements.

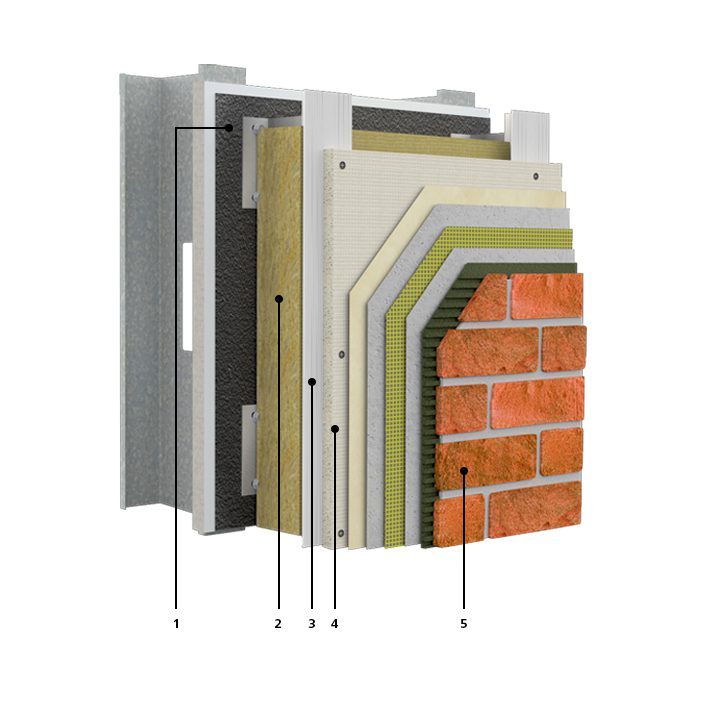

System Components:

  1. Sto AirSeal® air and water-resistive barrier – A fluid-applied, vapor-permeable AWRB designed for use on most substrates, Sto AirSeal features a 500% elongation capacity, meets requirements of ASTM C1305, and offers building code compliance confirmed by ICC-ESR 1233.
  2. Thermal Insulation – Owens Corning Thermafiber® Rainbarrier® 45 mineral wool provides continuous insulation with exceptional thermal performance, fire resistance, acoustical control, and water-resistive.
  3. StoVentro Sub-construction – A highly intuitive engineered system of adjustable wall brackets and T- and L-profiles, StoVentro Sub-construction installs easily and accommodates substrate imperfections.
  4. StoVentec Carrier Board A+ – The blank canvas on which a broad variety of masonry veneers find expression, remarkably strong, durable and resilient StoVentec Carrier Board A+ is made from 96% recycled glass.
  5. Masonry Veneer – Your choice of thin brick is in conformance with applicable building code requirements. StoColl polymer modified portland cement adhesive mortar, compliant with ANSI 118.4, is used for adhering the masonry veneer units over a reinforced basecoat.

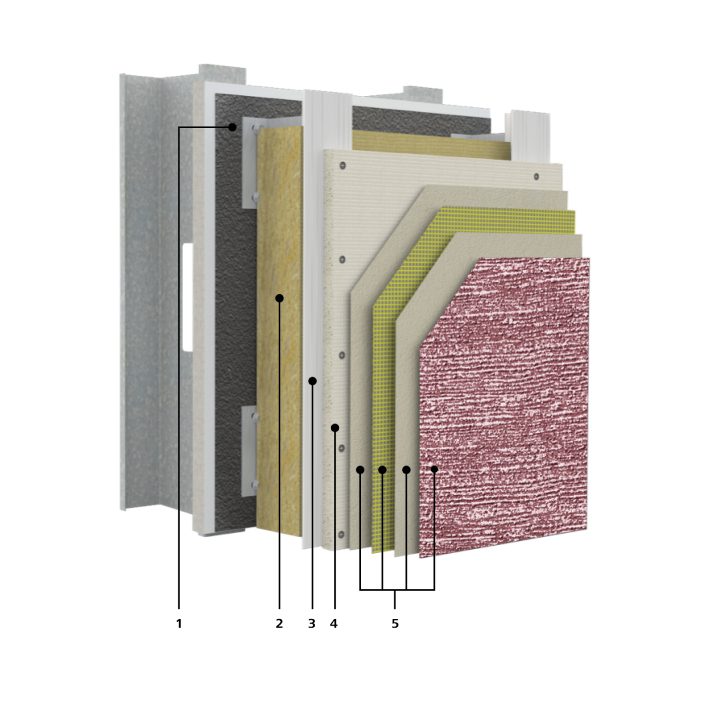

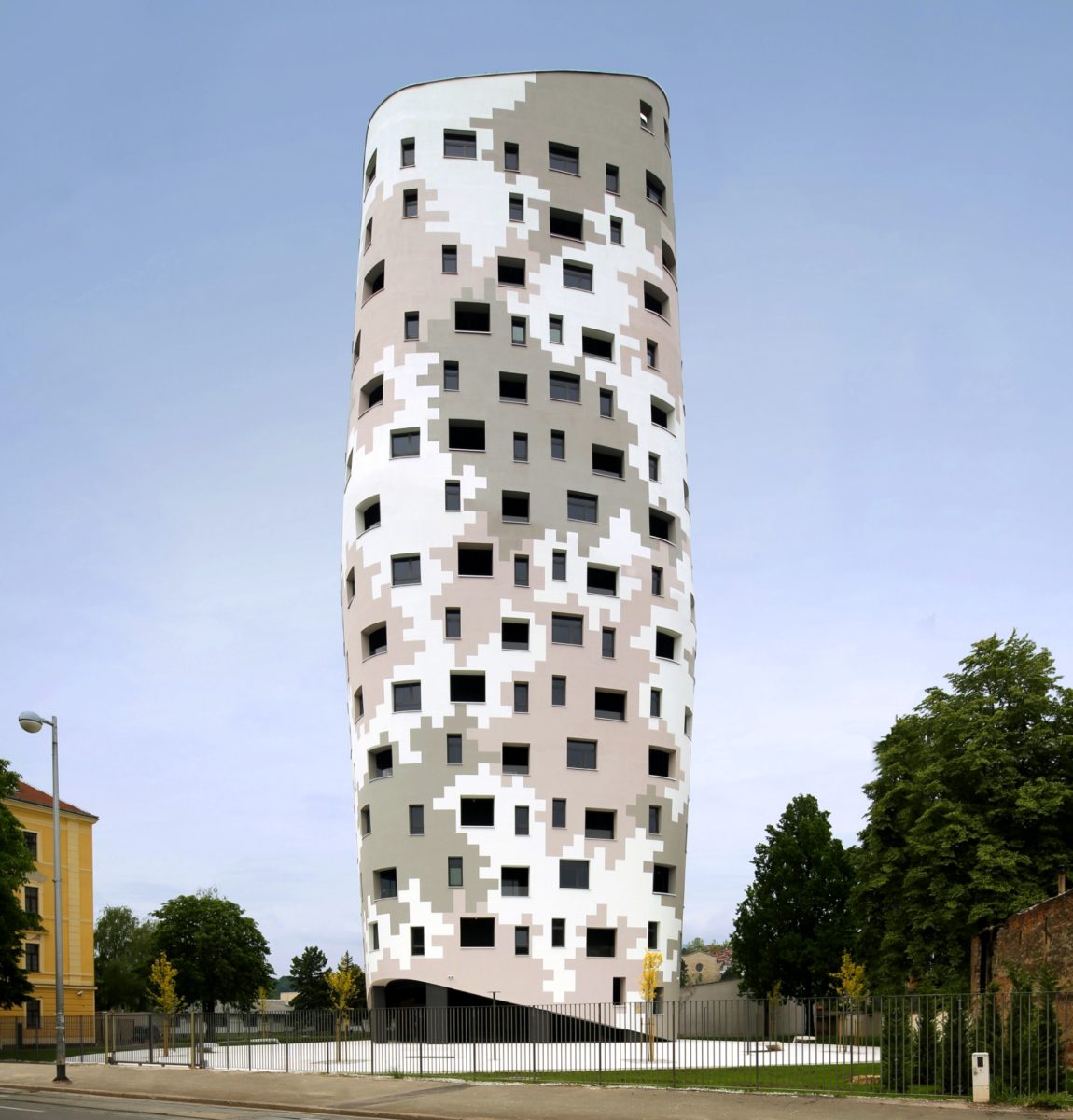

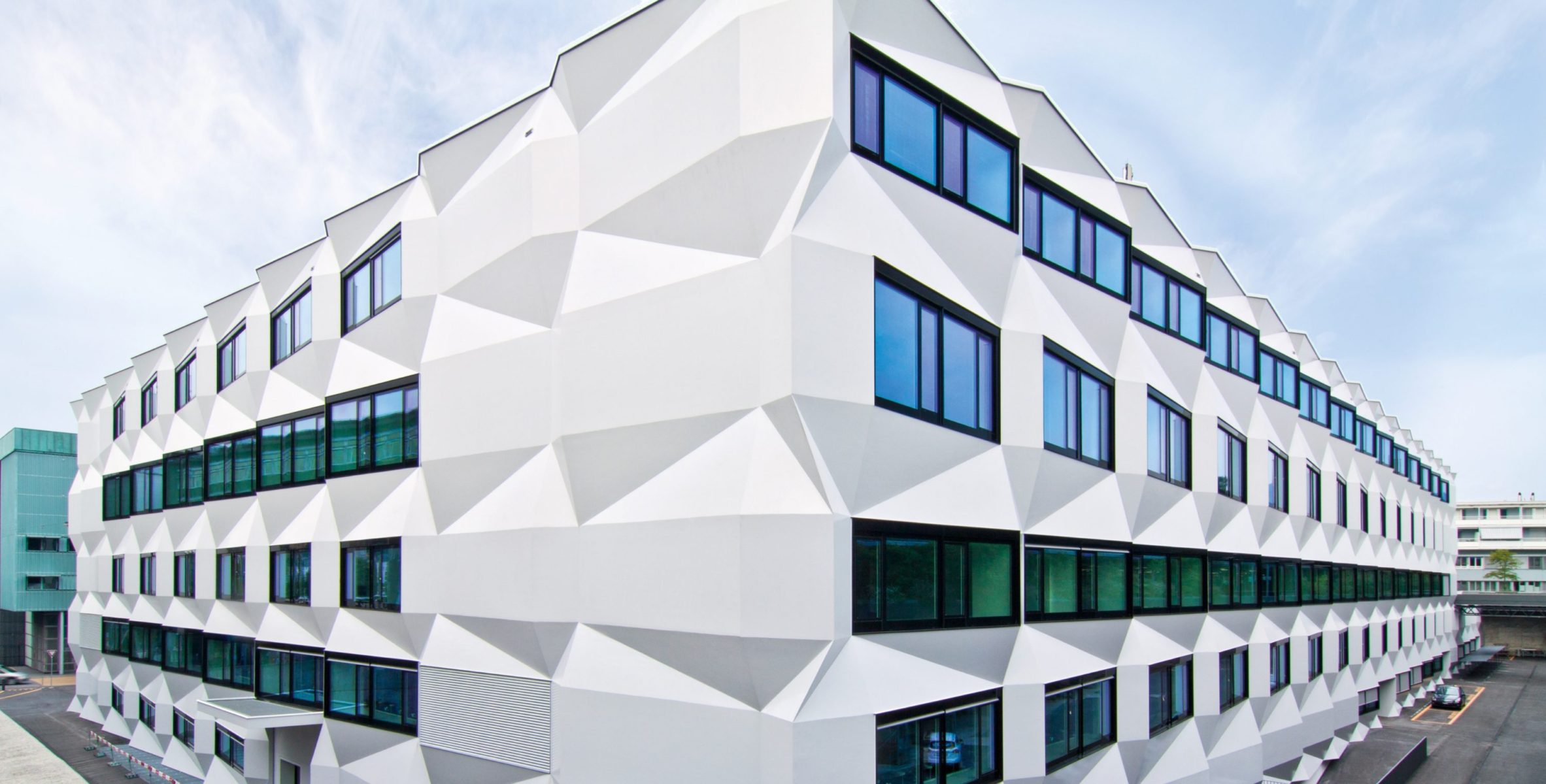

StoVentec Render: Blending art, economics, and performance

An ideal balance of economics, functionality and creative design is crucial to your choice of facade systems. StoVentec Render ventilated Rainscreen systems combine thermal insulation, sub-construction and air and water-resistive barrier to provide superior weather tightness, thermal performance and fire protection. Sto’s broad line of architectural finish options provide the widest range of textures, shapes, and colors.

System Components:

  1. StoGuard® air and water-resistive barrier – Featuring Sto AirSeal® the StoGuard® system provides seamless and fully integrated air and moisture control.
  2. Thermal Insulation – Owens Corning Thermafiber® RainBarrier® 45 mineral wool made of non-combustible fiber. Variable thicknesses can accommodate for design thermal requirements.
  3. StoVentro™ Sub-Construction – An engineered system consisting of StoVentro Brackets with vertical and horizontal StoVentro T-Profiles to provide the structural link between the facade and supporting wall construction.
  4. StoVentec® Carrier Board A+ – Seamless curves and unique architectural shapes are possible with this versatile carrier backing board that is double-sided mesh reinforced and consists of 96% recycled glass.
  5. Sto Architectural Finish system – a broad range of colors, textures and materials are available with Sto’s proven, durable, long lasting finish systems to suit any design and performance requirements.

StoVentec Color/Texture Options

StoVentec Glass Systems are available in 66 standard colors or custom digitally-printed imagery, while StoVentec Render Systems are available in virtually limitless textures, shapes, and colors; can accommodate complex curvilinear forms with ease; and enable designers to achieve a seamless and monolithic facade.

StoVentec Testing & Compliance

It all comes down to performance. Based on extensive fire and durability testing, StoVentec Systems conform with US and Canadian code requirements for use on noncombustible construction (Intertek Division 7 Design Listings), air leakage resistance, and water resistance (ICC ESR 1233).

Acceptable for use on noncombustible construction

StoVentec Glass: Maximum ultimate load capacity -288 lb/ft2 (-13.8 kN/m2)
StoVentec Render: Maximum ultimate load capacity -160 lb/ft2 (-7.66 kN/m2)

StoVentec Glass: V2 Ventilation Rating
StoVentec Render: V9 Ventilation Rating

StoVentec Glass: W1 Water Penetration Rating
StoVentec Render: W1 Water Penetration Rating

Code Compliance Reports

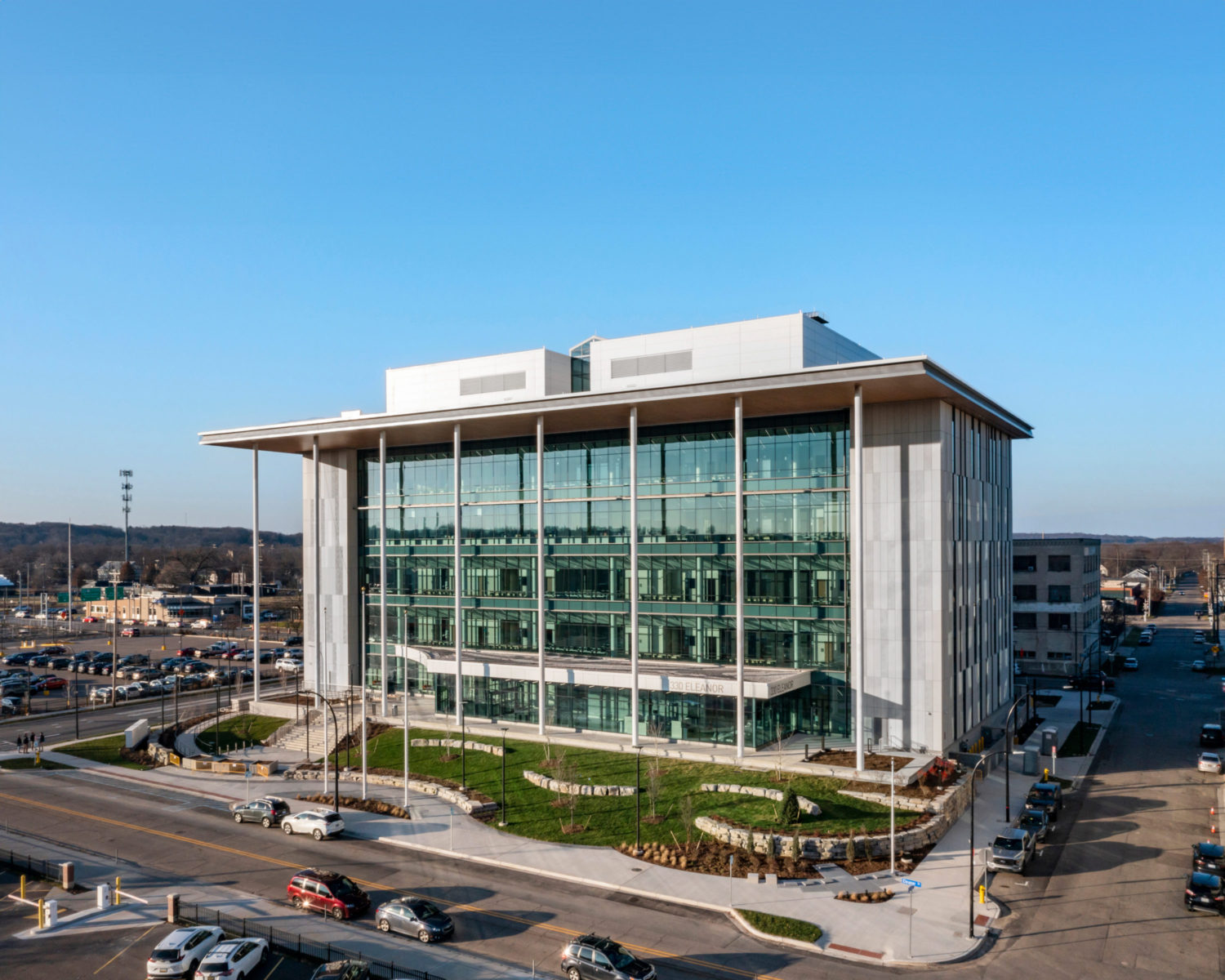

See a StoVentec Rainscreen System in Action

Finally, complete Rainscreen systems sourced from and backed by a single manufacturer.

Throughout Europe and the UK, our StoVentec® Rainscreen® systems have been used and known for nearly two decades for their superior performance, single-source manufacturing, and rich palette of design possibilities. Now, savvy architects, designers, cladding installers, and developers in the USA are discovering these versatile systems.

What they all appreciate is how StoVentec works out all of the details, rather than leaving them to sort through a hodge-podge of wall components like cladding, sub-framing, insulation, air and water barrier, etc. Instead, architects, owners, and contractors get an entire, fully-tested, and code-approved high-performance ventilated Rainscreen system. This includes a best-in-class air and water barrier, robust mineral wool continuous insulation, the most installer-friendly, adjustable sub-framing system available, and – of course – amazing StoVentec Rainscreen cladding.

Best of all, every system is backed with a 10-year warranty by Sto, manufacturer of StoVentec Original Rainscreen Systems. Our local technical specialists are ready to help you create a lasting, high-performance, work of art in cladding.
