StoQuik® Silver DrainScreen™ MVES

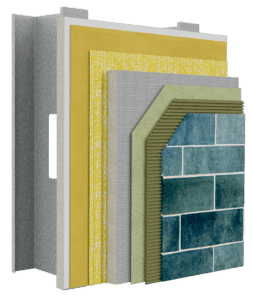

StoQuik® Silver DrainScreen MVES is a high-impact and weather-resistant cement board stucco system that combines the strength of cement board substrate with StoGuard® air and water-resistive barrier. It features Sto DrainScreen technology to promote superior drainage and drying of the wall assembly while achieving the aesthetic of masonry veneers such as thin brick, ceramic tile, natural stone, manufactured stone and cultured stone.
Downloads
System Bulletin
Code & Test Reports
Accessory Products
- StoSeal STPE Sealant*
*Refer to Product Bulletin for specific information on the proper use, handling, application and limitations of StoSeal STPE Sealant.

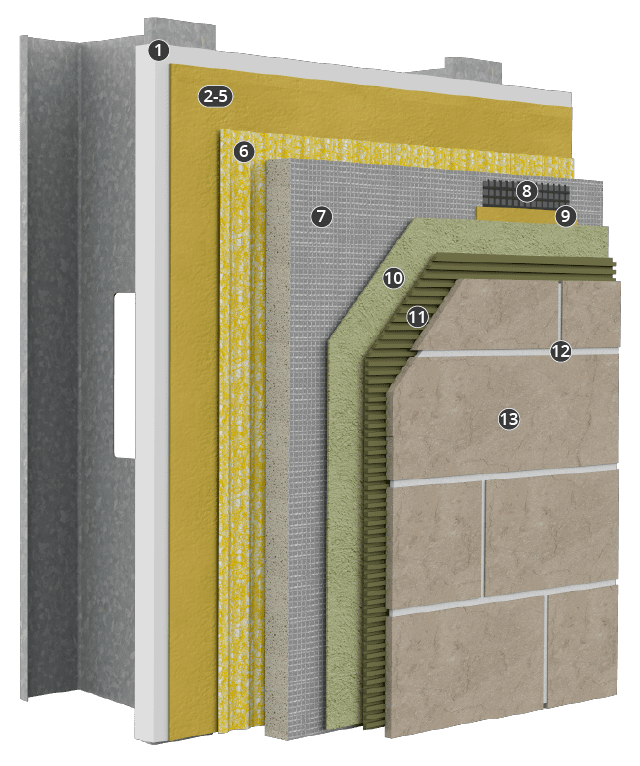

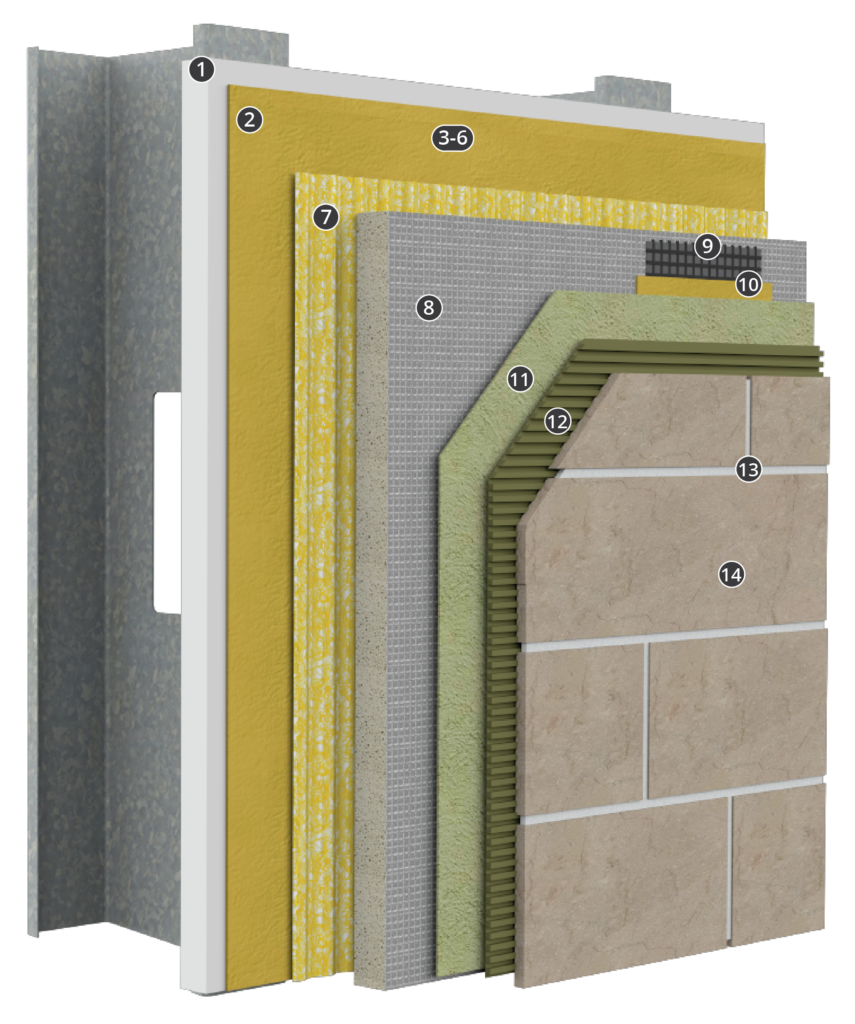

System information:
1
Structural Wall Assembly
2
Air and Water-Resistive Barrier - Wall Membrane: Sto Gold Coat – Substrate Driven
3
StoGuard Detail Component -
Sheathing Joints and Corners, Flashing and
Rough Opening Protection, Penetrations: Sto RapidGuard®
Sheathing Joints and Corners, Flashing and
Rough Opening Protection, Penetrations: Sto RapidGuard®
4
StoGuard Detail Component - Static Joints and Seams: Sto RapidGuard®
5
StoGuard Detail Component - Dynamic Joints: StoGuard Conformable Membrane
6
StoGuard Detail Component-Movement Joints and Substrate Transitions: Sto RapidGuard®
8
PermaBase™ Cement Board ASTM C 1325 (min. ½ inch or 13 mm)
10
Joint Reinforcement Air & Water-Resistive Barrier – Wall Membrane: Sto Gold Coat – Substrate Driven
13
Masonry Veneer Grout
14
Masonry Veneer
