StoQuik Silver – DrainScreen

StoQuik Silver – DrainScreen


StoQuik® Silver DrainScreen is a high-impact and weather-resistant cement board stucco system that combines the strength of cement board substrate with StoGuard® air and water-resistive barrier. It features Sto DrainScreen technology to promote superior drainage and drying of the wall assembly.

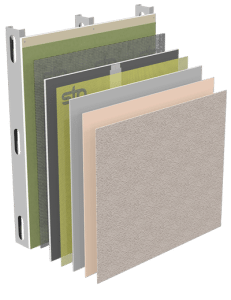

System information:

1 Structural Wall Assembly
3 StoGuard Detail Component -
Sheathing Joints and Corners, Flashing and
Rough Opening Protection, Penetrations: Sto RapidGuard®
4 StoGuard Detail Component - Static Joints and Seams: Sto RapidGuard®
5 StoGuard Detail Component - Dynamic Joints: StoGuard Conformable Membrane
6 StoGuard Detail Component-Movement Joints and Substrate Transitions: Sto RapidGuard®
8 PermaBase™ Cement Board ASTM C 1325 (min. ½ inch or 13 mm)
9 Reinforcement Mesh: StoGuard Mesh 4.25
10 Mesh: Sto Mesh
11 Base Coat: Sto Primer/Adhesive-B
12 Primer: StoPrime® Sand
13 Finish: Stolit Lotusan 1.0
StoQuik Silver<sup>®</sup> - DrainScreen

StoQuik Silver® - DrainScreen

Series 11.xx

This assembly incorporates a fluid applied air/moisture barrier, drainage mat, cement board, and Sto reinforcing meshes, base coats, primers and finishes. The assembly complies with IBC and IRC building code requirements for use on all Types (I, II, II, IV, and V) of construction.

Accessories for StoQuik Silver Cement Board Stucco Systems – 0307 S
File Ref.# 0307 S
Critical Detail Checklist for Wall Assemblies – 0403 BSc
File Ref.# 0403 BSc
Keys to Success: StoQuik Silver Cement Board Stucco – 0407 S
File Ref.# 0407 S
Life Cycle Assessment Summary – 0110 BSc
File Ref.# 0110 BSc
Moisture Control Principles of Wall Assemblies – 0603 BSc
File Ref.# 0603 BSc
Sto Cladding Systems Compatibility w Huber Zip Systems – 1110 BSc
File Ref.# 1110 BSc
StoQuik Silver – DrainScreen
File Ref.# 0416 BSc
Respirable Crystalline Silica Standard
File Ref.# 0518 BSc
Sto Drip Edge Profile – S886
File Ref.# S886
Sto Mesh Corner Bead – S885
File Ref.# S885
Sell Sheet – Sto DrainScreen
File Ref.# Sell Sheet - Sto Drainscreen
