StoTherm ci Mineral

StoTherm ci Mineral

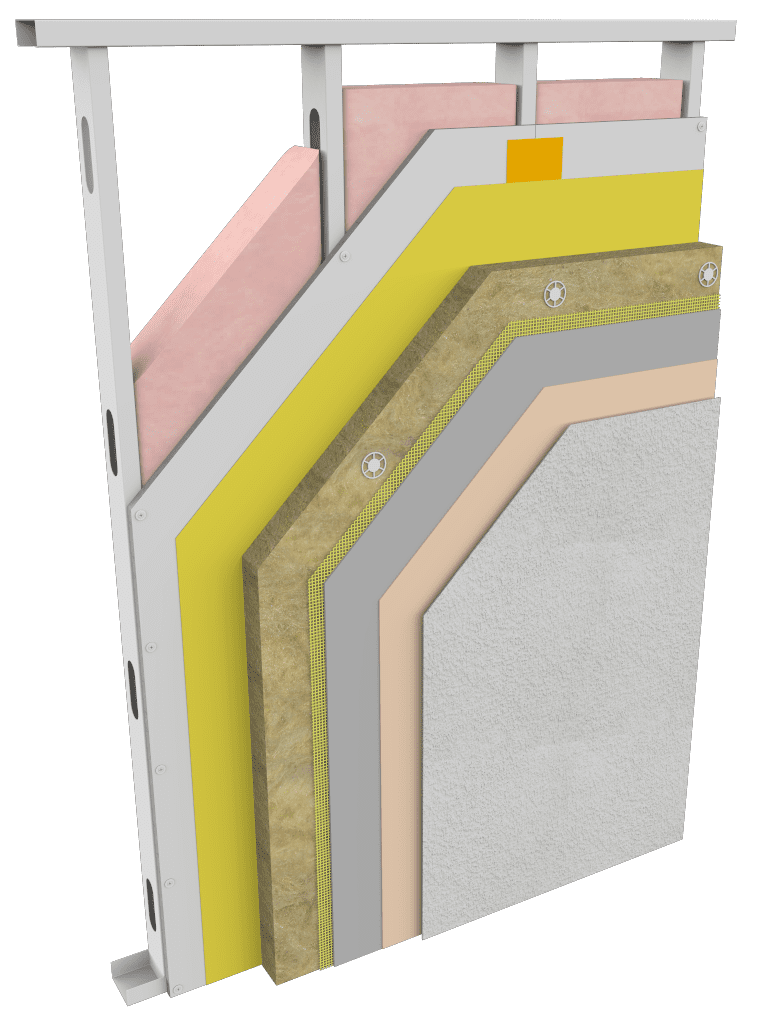

StoTherm® ci Mineral is an EIFS with Drainage continuous insulation wall system. It is a high-performance, energy efficient wall cladding that integrates  StoGuard®, air and water-resistive barrier, non-combustible mineral wool insulation, and drainage.  It can achieve a variety of aesthetic appearances using Sto textured finishes, Sto Specialty finishes, or StoCast surface components.

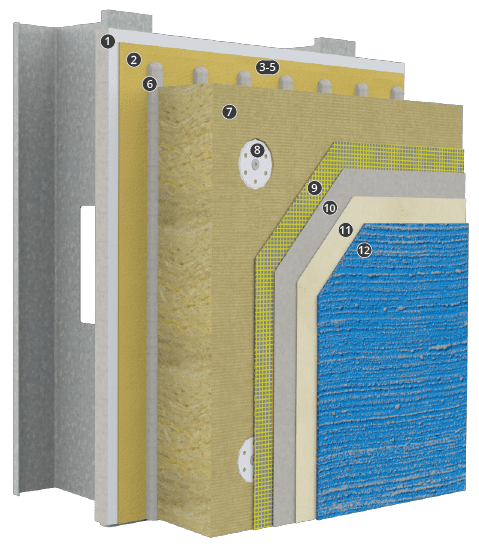

System information:

1 Structural Wall Assembly
2 Air and Water-Resistive Barrier - Wall Membrane: Sto Gold Coat
3 StoGuard Detail Component -
Sheathing Joints and Corners, Flashing and
Rough Opening Protection, Penetrations: Sto RapidGuard®
4 StoGuard Detail Component - Static Joints and Seams: Sto RapidGuard®
5 StoGuard Detail Component - Dynamic Joints: StoGuard Conformable Membrane 4”
Bulletin PDF
6 Adhesive: Sto BTS Plus
8 Thermal Dowel and Fastener: Sto Thermo Dowel
Bulletin PDF
9 Mesh: Sto Mesh
11 Primer: StoPrime® Sand
12 Finish: Stolit Lotusan 1.5
StoTherm<sup>®</sup>ci Mineral

StoTherm®ci Mineral

Series: 56s.xx

StoTherm®ci Mineral is a decorative and protective exterior wall system that combines superior air and weather tightness with excellent thermal performance and fire resistance. It incorporates noncombustible continuous exterior insulation and a continuous air and moisture barrier with Sto’s high performance finishes to produce an advanced high performance wall cladding assembly.

Critical Detail Checklist for Wall Assemblies – 0403 BSc
File Ref.# 0403
Critical Lighting of Wall Surfaces – 1006 E
File Ref.# 1006E
Fading in StoTherm ci and Coatings – 0893 EC
File Ref.# 893 EC
Moisture Control Principles of Wall Assemblies – 0603 BSc
File Ref.# 0603
Pecora Sealant Adhesion Evaluation / Sto Coatings and Flashing
File Ref.# 824097
Sealant Compatibility with StoGuard Air Barrier Materials – 0213 BSc
File Ref.# 0213
StoTherm ci Mineral
File Ref.# 0416
StoGuard Coverage over ASTM C 1177 Sheathing – 0614 BSc
File Ref.# 0614
Temporary Heating of EIFS Installations in Cold Weather – 1001 E
File Ref.# 1001 E
StoTherm ci Mineral Brochure – S912
File Ref.# S912
StoTherm ci – S881
File Ref.# S881
