Systems
StoTherm ci XPS

StoTherm ci XPS

StoTherm® ci XPS is an EIFS with Drainage continuous insulation wall system. It is a high-performance energy-efficient wall cladding that integrates  StoGuard® air and water-resistive barrier, XPS insulation, and drainage.  It can achieve a variety of aesthetic appearances using Sto textured finishes, Sto Specialty finishes, or StoCast surface components.

Downloads

System Bulletin

Specifications

Code & Test Reports

System Options

EPD Documents


  Standard Finishes    Specialty Finishes    StoColor 800

System information:

Download allZIP

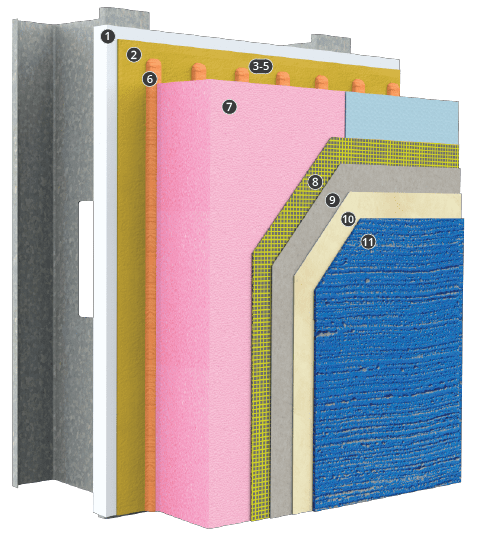

1 Structural Wall Assembly
2 Air and Water-Resistive Barrier - Wall Membrane: Sto Gold Coat
Bulletin SDS PDF
Alternatives
3 StoGuard Detail Component -
Sheathing Joints and Corners, Flashing and
Rough Opening Protection, Penetrations: Sto RapidGuard®
Bulletin SDS PDF
Alternatives
4 StoGuard Detail Component - Static Joints and Seams: Sto RapidGuard®
Bulletin SDS PDF
Alternatives
5 StoGuard Detail Component - Dynamic Joints: StoGuard Conformable Membrane 4”
Bulletin PDF
Alternatives
6 Adhesive: Sto TurboStick
Bulletin SDS PDF
Alternatives
7 Insulation: Owens Corning Foamular CI-C Insulation
Bulletin SDS PDF
Alternatives
8 Mesh: Sto Mesh
Bulletin SDS PDF
Alternatives
9 Basecoat: Sto BTS Xtra
Bulletin SDS PDF
Alternatives
10 Primer: StoPrime® Sand
Bulletin SDS PDF
Alternatives
11 Finish: Stolit Lotusan 1.0
Bulletin SDS PDF
Alternatives
StoTherm<sup>®</sup>ci XPS - Commercial

StoTherm®ci XPS - Commercial

Series: 53.xx

This sustainable, high-performance wall system helps lower energy costs and reduces the carbon footprint of buildings. In addition, StoTherm ci XPS offers unmatched aesthetic choices thanks to a wide range of decorative and protective finishes available in virtually unlimited colors. This system utilizes Owens Corning Foamular CI-C or Dow STYROFOAM™ Panel Core 20 insulation and is shown on a commercial steel wall frame.

Series Booklet Download All (.zip)
See detail series
Life Cycle Assessment Summary – 0110 BSc
File Ref.# 0110 BSc
pdf LINK
Adhesive vs Mechanical Fastening of StoTherm ci – 0409 E
File Ref.# 0409 E
pdf LINK
Application of StoTherm ci to Stoguard VaporSeal – 0709 E
File Ref.# 0709 E
pdf LINK
Temporary Heating of EIFS Installations in Cold Weather – 1001 E
File Ref.# 1001 E
pdf LINK
Critical Detail Checklist for Wall Assemblies – 0403 BSc
File Ref.# 0403 BSc
pdf LINK
Fading in StoTherm ci and Coatings – 0893 EC
File Ref.# 0893 EC
pdf LINK
Moisture Control Principles of Wall Assemblies – 0603 BSc
File Ref.# 0603 BSc
pdf LINK
Restrictions Dark Colors on ci (EIFS) Systems – 1294 E
File Ref.# 1294 E
pdf LINK
Sto Product and Compliance with NFPA 285 – 0514 E
File Ref.# 0514 E
pdf LINK
Wind Load and Adhesively Attached StoTherm Systems – 0894 E
File Ref.# 0894 E
pdf LINK
Sto Cladding Systems Compatibility w Huber Zip Systems – 1110 BSc
File Ref.# 1110 BSc
pdf LINK
Critical Lighting of Wall Surfaces – 1006 E
File Ref.# 1006 E
pdf LINK
Respirable Crystalline Silica Standard
File Ref.# 0518 BSc
pdf LINK
StoTherm ci XPS
File Ref.# 0319 BSc
LINK
StoTherm ci – S881
File Ref.# S881
pdf LINK
Sto TurboStick Brochure – S838
File Ref.# S838
pdf LINK
Sto Mesh Corner Bead – S885
File Ref.# S885
pdf LINK
Sto Drip Edge Profile – S886
File Ref.# S886
pdf LINK
StoTherm ci XPS – S871
File Ref.# S871
pdf LINK
StoGuard Products
See Video Series
Sto Adhesives
See Video Series
Sto Finishes & Coatings
See Video Series
