StoPowerwall®ci – Inbound Insulation is a premium integrated stucco wall system that combines protective and aesthetic elements. The system is made up of high-performance components including StoGuard® air and water-resistive barrier, Sto DrainScreen®, Owens Corning or Dow Type IV XPS insulation board, and Sto textured finishes.

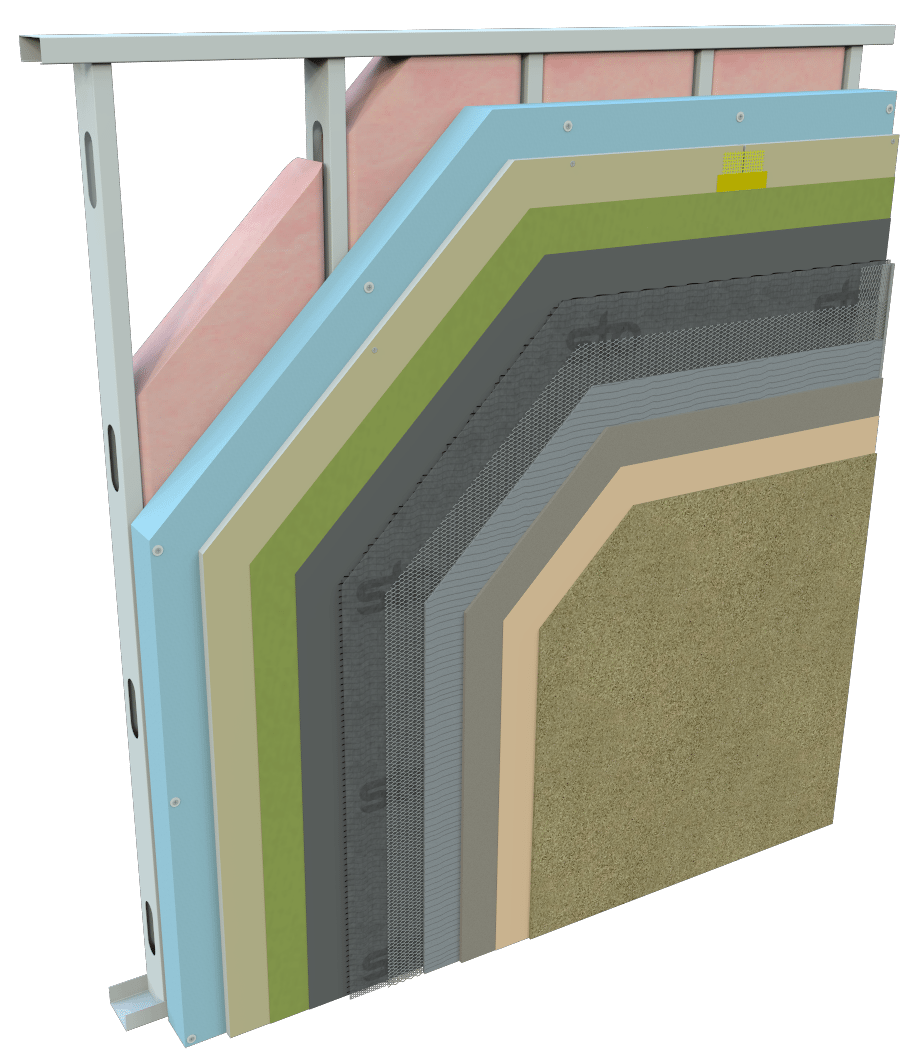

System information:

1 Insulation: Type IV XPS Insulation Board Manufactured by Owens Corning or Dow
2 Glass Mat Gypsum Sheathing - ASTM C 1177 Compliant
3 Air and Water-Resistive Barrier - Wall Membrane: Sto Gold Coat
4 StoGuard Detail Component -
Sheathing Joints and Corners, Flashing and
Rough Opening Protection, Penetrations: Sto RapidGuard®
5 StoGuard Detail Component - Dynamic Joints: StoGuard Conformable Membrane 4”
Bulletin PDF
6 StoGuard Detail Component - Penetrations : Sto RapidGuard®
7 StoGuard Detail Component - Movement Joints and Substrate Transitions: StoGuard Transition Membrane
Bulletin PDF
8 Code Compliant WRB Paper or Felt
9 Drainage: Sto DrainScreen 6mm
10 Metal Lath
13 Crack Defense Mesh (optional): Sto Mesh
14 Crack Defense Basecoat (optional): Sto BTS Plus
15 Primer: StoPrime® Hot
16 StoPowerwall Stucco Finish Options: Stolit Lotusan 1.0
StoPowerwall<sup>®</sup> ci - Inbound

StoPowerwall® ci - Inbound

Series 62s.xx

This stucco assembly incorporates a fluid applied air/moisture barrier, continuous insulation, code compliant paper or felt water-resistive barrier (WRB), drainage mat, code compliant metal plaster base and portland cement stucco, and Sto primers and finishes. The assembly complies with IBC and IRC building code requirements for use on on all Types (I-V) of construction. It has been tested in accordance with NFPA 285 and meets criteria for use on noncombustible construction (Types I-IV). It has also been tested in accordance with ASTM E 119 as a one hour non load bearing fire resistive rated wall assembly.
