StoPowerwall<sup>®</sup> ci – Inbound

StoPowerwall® ci – Inbound


StoPowerwall®ci – Inbound Insulation is a premium integrated stucco wall system that combines protective and aesthetic elements. The system is made-up of high-performance components including StoGuard® waterproof air barrier, Sto DrainScreen®, Dow (Type IV) XPS insulation board, and Sto textured finishes. The result is a durable, energy-efficient wall cladding that offers superior air and moisture control and thermal performance.

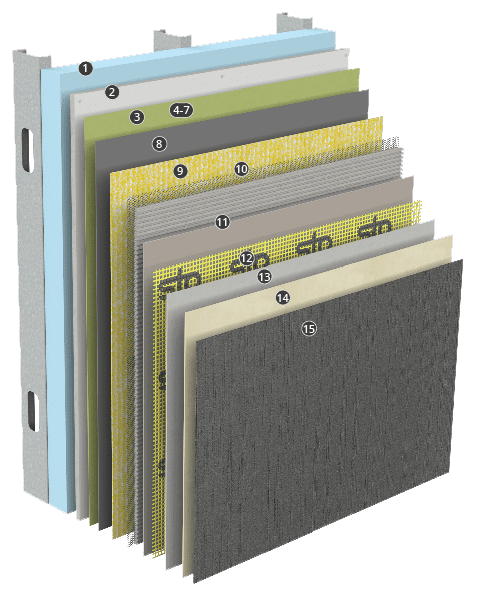

System information:

1 Type IV XPS Insulation Board
2 Glass Mat Gypsum Sheathing - ASTM C 1177 Compliant
3 Air & Moisture Barrier: Sto EmeraldCoat
4 Code Compliant WRB Paper or Felt
5 Drainage: Sto DrainScreen
6 Metal Lath

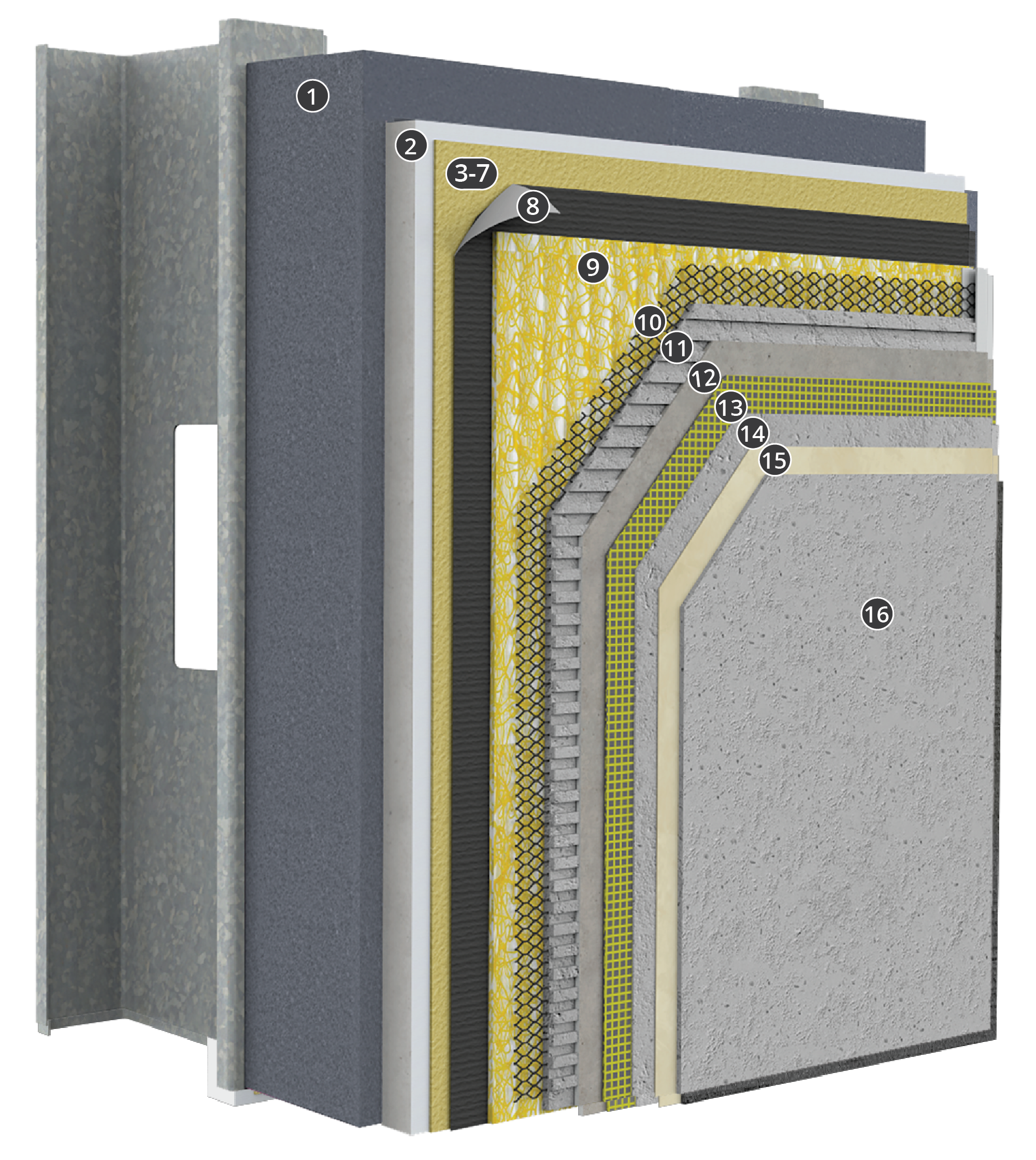

StoPowerwall<sup>®</sup> ci - Inbound

StoPowerwall® ci - Inbound

Series 62s.xx

This stucco assembly incorporates a fluid applied air/moisture barrier, continuous insulation, code compliant paper or felt water-resistive barrier (WRB), drainage mat, code compliant metal plaster base and portland cement stucco, and Sto primers and finishes. The assembly complies with IBC and IRC building code requirements for use on on all Types (I-V) of construction. It has been tested in accordance with NFPA 285 and meets criteria for use on noncombustible construction (Types I-IV). It has also been tested in accordance with ASTM E 119 as a one hour non load bearing fire resistive rated wall assembly.

Alkaline Substrates And Polymeric Finishes – 1202 CF
File Ref.# 1202CF
All Sands Are Not Created Equal – 0603 S
File Ref.# 0603S
Critical Detail Checklist for Wall Assemblies – 0403 BSc
File Ref.# 0403 BSc
Life Cycle Assessment Summary – 0110 BSc
File Ref.# 0110 BSc
Moisture Control Principles of Wall Assemblies – 0603 BSc
File Ref.# 0603 BSc
Sto Cladding Systems Compatibility w Huber Zip Systems – 1110 BSc
File Ref.# 1110 BSc
Stucco Wind Load Resistance of Assemblies (ESR-2323) – 0906 S
File Ref.# ICC-ES ESR-2323
Sto Powerwall – S883
File Ref.# S883
