Direct-applied Finish System for Soffits and Ceilings
Direct-applied Exterior Finish System (DEFS) for use on weather protected walls and un-insulated exterior soffit and ceiling applications.
[ read more ]

Direct-applied Finish System

Sto Interior Finish System for Pool Rooms
Decorative and protective finish system for interior walls and ceilings of a residential or commercial indoor swimming pool rooms.
[ read more ]

Interior Finish System for Pool Rooms

Sto Insulated Concrete Form (ICF) Finish Systems
A system of formwork for concrete that stays in place as permanent building insulation for energy-efficient, cast-in-place, reinforced concrete walls, floors and roofs.
[ read more ]

Insulated Concrete Form (ICF)

Sto Aerated Autoclave Concrete (AAC) Finish System
Decorative and protective finish system for above grade exterior AAC wall construction.
[ read more ]

Aerated Autoclave Concrete (AAC)

StoTherm® Hurricane Impact Systems
StoTherm® Hurricane Impact (HI) Systems provide a full range of exterior cladding options to protect against hurricane and tropical storm winds, water intrusion and wind-borne debris.
[ read more ]

Hurricane Impact Systems

Sto Specialty Systems

Our system portfolio includes a series of special wall assemblies engineered to meet very particular design requirements of the building enclosure (Hurricane resistance for example) and to accommodate different types of building substrates such as Aerated Autoclave Concrete or Insulated Concrete Forms.

triangle_NO_9_2_better_shadow_upside

Direct-applied Finish Systems for Soffits and Ceilings

Direct-applied Exterior Finish System (DEFS) for use on weather protected walls and un-insulated exterior soffit and ceiling applications.

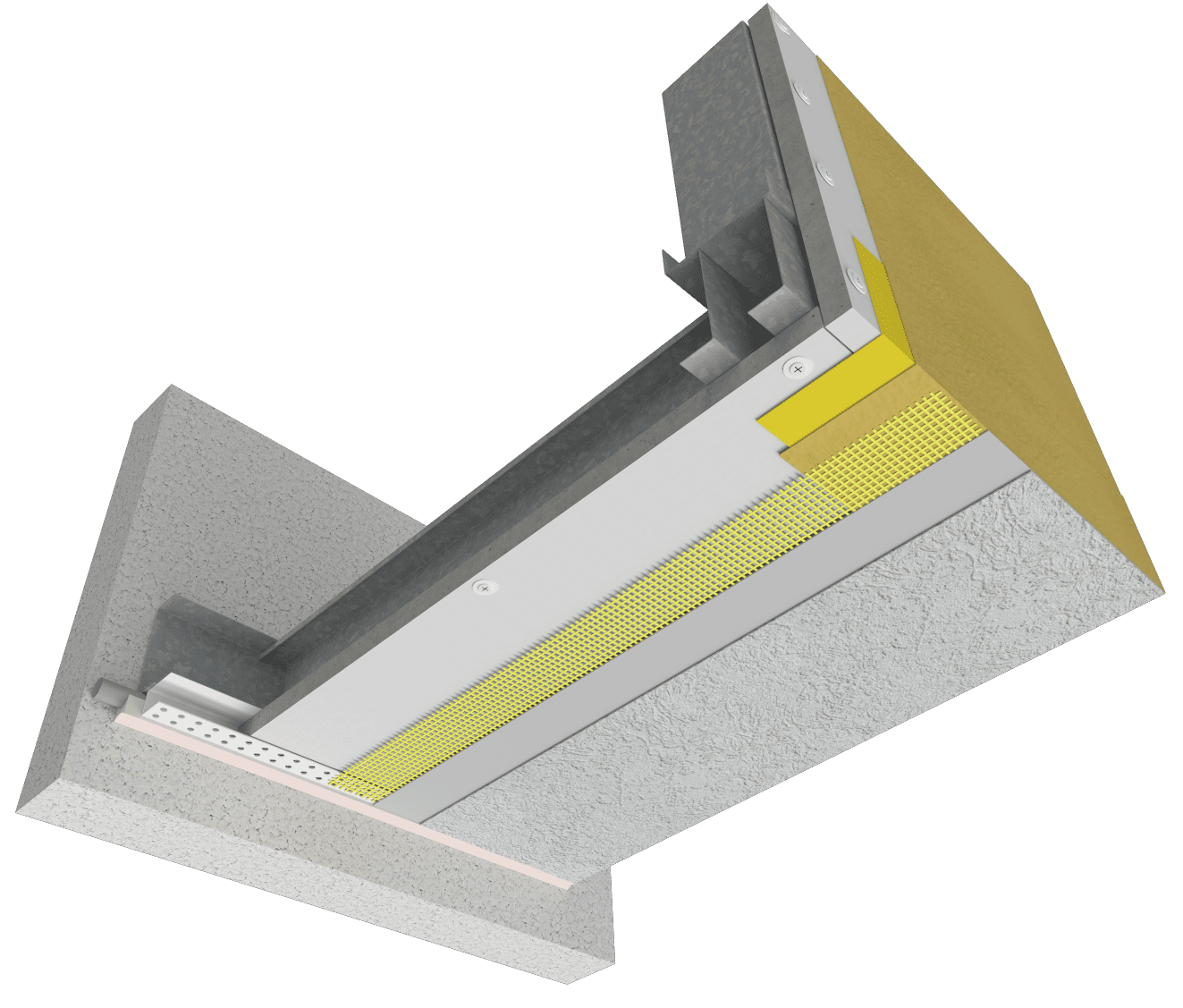

StoQuik® Gold Soffit
Direct-applied exterior finish system over glass mat faced gypsum board for use on weather-protected ceilings, soffits and walls.

Project Type: New Construction
Substrate Type: The Dens-Glass® Gold sheathing or ASTM C1177 compliant glass mat faced gypsum board is directly applied onto the frame.
Type of Application: On weather-protected ceilings, soffits and ceilings.
Drainage: None; Exclusively for weather protected ceilings, soffits and walls.
Air/Moisture Protection: None

Sto Interior Finish System for Pool Rooms

Our Pool Room Finish System provides a decorative and resistant interior enclosure for indoor pools and similar enclosed spaces subject to high humidity, chlorine and other chemicals.

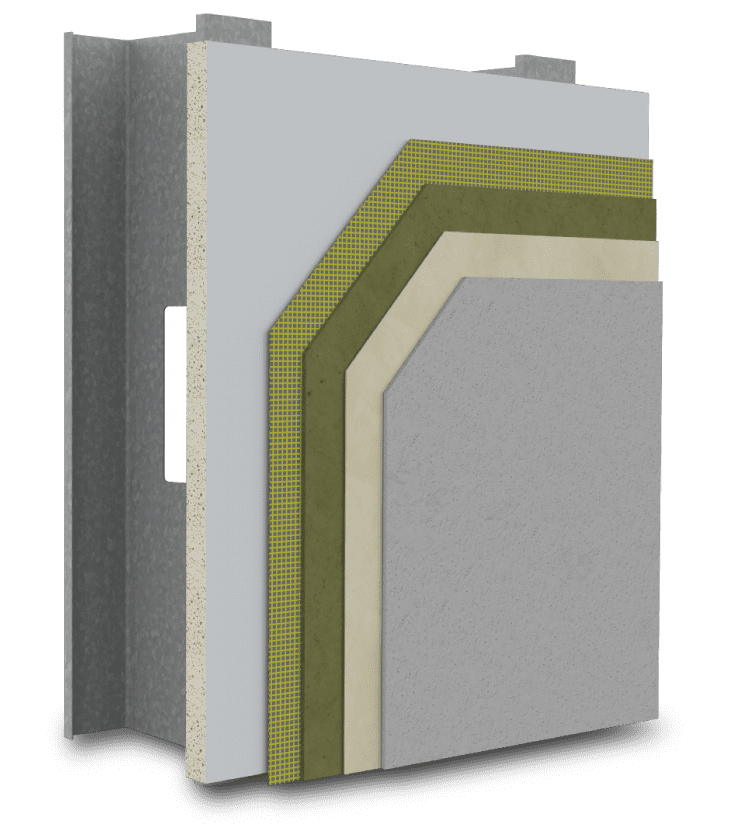

Sto Interior Finish System for Pool Rooms
Decorative and protective finish system for interior walls and ceilings of residential or commercial indoor swimming pool rooms.

Project Type: New Construction / Restoration
Substrate Type: Georgia-Pacific Dens Shield® glass mat faced gypsum board and PermaBase cement board by National Gypsum or e2xp Tile Backer by National Gypsum.
Type of Application: On interior vertical above grade walls and ceilings of an indoor pool room.
Drainage: Non applicable. Interior application.
Air/Moisture Protection: The moisture protection is provided by Sto premium finishes and coatings along with the increased durability of the backer boards.

Sto Insulated Concrete Form (ICF) Finish Systems

Insulating Concrete Form (ICF) is a system of formwork for concrete that stays in place as permanent building insulation for energy-efficient, cast-in-place, reinforced concrete walls, floors, and roofs.

The forms are interlocking modular units, somewhat like Lego bricks, that are dry-stacked and filled with concrete, serving to create a form for the structural walls or floors of a building. ICF construction is becoming increasingly commonplace for both low rise commercial and residential construction as more stringent energy efficiency and natural disaster resistant building codes are adopted.

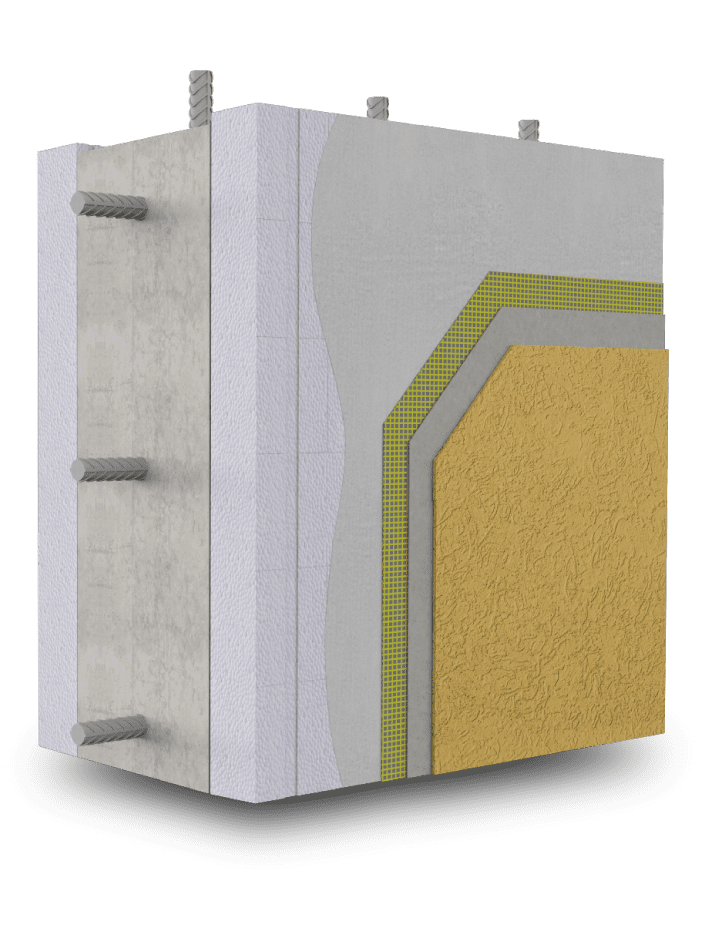

Sto ICF Coating System
Decorative and protective finish system for Insulated Concrete Form (ICF) construction.

Project Type: New Construction / Restoration
Substrate Type: Insulated Concrete Form (ICF) construction.
Type of Application: Direct-applied on exterior above grade ICF wall construction.
Drainage: Barrier wall construction.
Continuous Insulation: High due to ICF continuous insulation.
Air/Moisture Protection: ICF Barrier wall construction with Sto Lamina.
Impact Resistance: Standard-impact resistance is provided by the reinforcing mesh embedded in base coat.

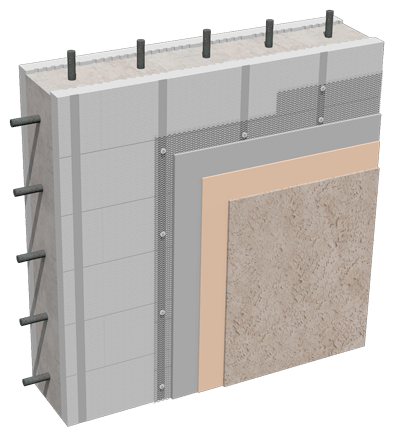

Sto ICF Stucco System
Decorative and protective stucco finish system for Insulated Concrete Form (ICF) construction.

Project Type: New Construction
Substrate Type: Insulated Concrete Form (ICF) construction.
Type of Application: Direct-applied on exterior above grade ICF wall construction with metal lath and paper backing anchored into concrete or ICF web ties.
Drainage: Limited drainage when properly integrated with flashing.
Continuous Insulation: High due to ICF continuous insulation.
Air/Moisture Protection: ICF back-up wall construction and code compliant WRB with Sto Powerwall® Stucco Finish System.
Impact Resistance: High-impact resistance is provided by the metal lath reinforced stucco.

Sto ICF Insulated Finish System
Decorative, protective and insulated finish system for Insulated Concrete Form (ICF) construction.

Project Type: New Construction
Substrate Type: Insulated Concrete Form (ICF) construction.
Type of Application: Direct-applied on exterior above grade ICF wall construction.
Drainage: Drainage wall construction when properly integrated with flashing.
Continuous Insulation: Premium with the addition of exterior continuous insulation to the ICF.
Air/Moisture Protection: ICF back-up wall construction with Sto continuous insulation system.
Impact Resistance: Standard-impact resistance is provided by the reinforcing mesh embedded in base coat.

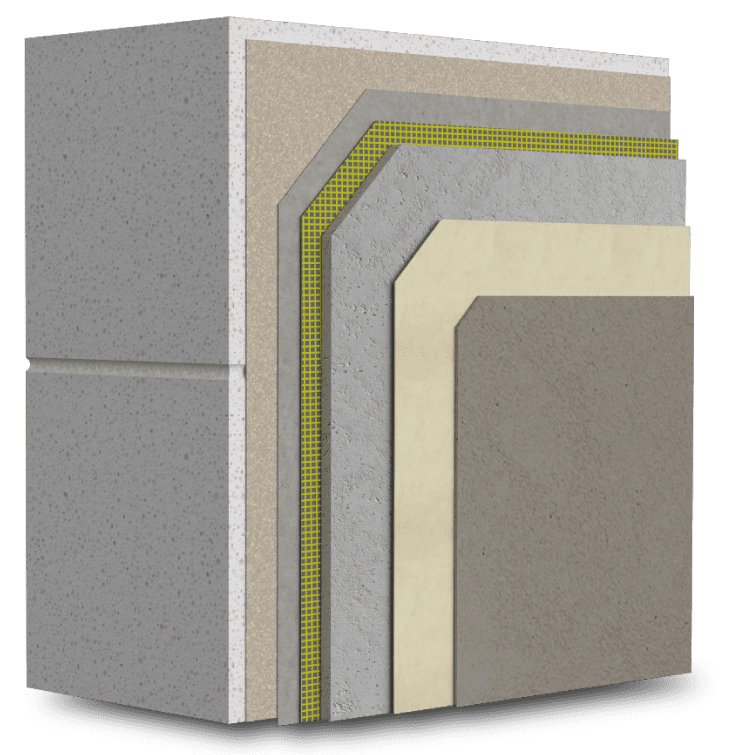

Sto Aerated Autoclave Concrete (AAC) Finish System

Our ACC Finish System is perfect to provide a decorative and resistant cladding over this quick and easy-to-install, highly insulating concrete based material.

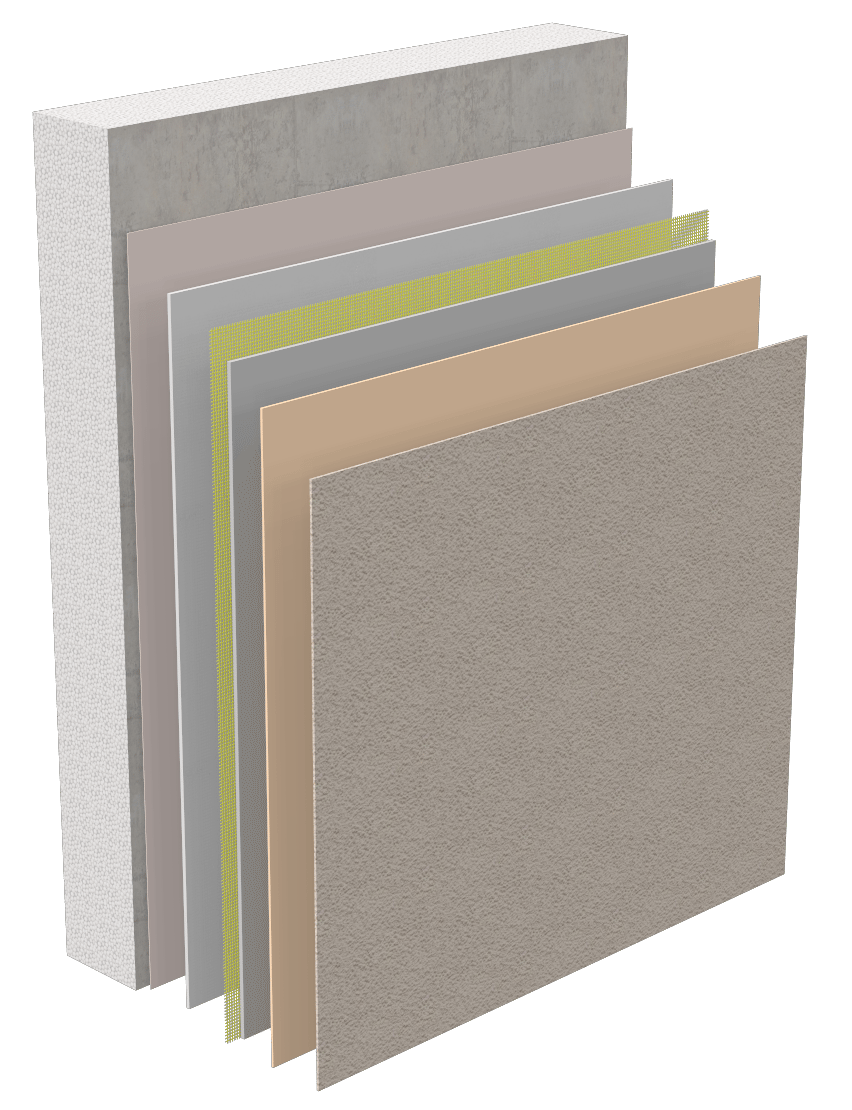

Sto Aerated Autoclave Concrete Finish System
Decorative and protective finish system for above grade exterior AAC wall construction.

Project Type: New Construction
Substrate Type: Exterior AAC masonry units (block or panels) compliant with ASTM C-1452 and ASTM C-1555.
Type of Application: On exterior above grade AAC wall assemblies.
Drainage: Barrier wall construction.
Air/Moisture Protection: Barrier wall construction. The use of an optional surface conditioner, can reduce surface absorption.
Impact Resistance: Barrier wall construction. The use of an optional mesh reinforcement can aid with crack bridging.

StoTherm® Hurricane Impact Systems

Protection for Coastal Construction.

Every year, Hurricanes threaten the coastlines of North America, striking coastal areas in 82 of the last 100 years. From Hurricane Dennis to Katrina, Rita to Wilma, the new millennium has brought 27 major Hurricanes and along with it more than $56.8 billion in property insurance losses for homes and businesses.

Sto Hurricane Impact (HI) Systems provide a full range of exterior cladding options to protect against hurricane and tropical storm winds, water intrusion, and wind-borne debris which is a leading cause of building envelope failure. All of Sto’s Hurricane Systems meet the stringent Miami-Dade County, Florida NOA criteria for impact resistance, air and water infiltration, and wind load resistance.





All Hurricane Systems can be installed economically on a variety of construction types, including: metal frame with gypsum sheathing, wood or steel frame with plywood sheathing, or concrete masonry. Sto also provides a wide variety of decorative and protective wall finishes, affording outstanding appearance and superior wall protection against some of the most severe weather conditions in North America.

Other key features of the Hurricane Systems include:

•  Competitively priced with other cladding systems.
•  Fire-resistance for up to two hours.
•  Lightweight and easy to install.
•  Backed by Sto’s Limited Labor and Materials Warranty.
•  Technical Support available in person, phone and online.


Sto Hurricane Impact Systems Detail Booklet

StoTherm® ci 1177-LM -150 EIFS System over 5/8″ ASTM C 1177 Sheathing

5_7_1_StoTherm_ci_1177-LM-150_web
Maximum Design Pressure, psf: ± 150 – National Gypsum eXP
± 150 – USG Securock
± 120 – Continental Weather Defense
Substrate Type: ASTM C-1177 gypsum-based sheathing.
System Components Drawing: 10H.14
Miami-Dade County NOA File: 16-0418.07  (PDF)
Expiration Date: 08/11/2021


StoTherm® ci 1177-SM EIFS System over 5/8″ ASTM C 1177 Sheathing

5_7_1_StoTherm_ci_1177-SM-150_web
Maximum Design Pressure, psf: ± 150 – National Gypsum eXP
± 140 – USG Securock
± 120 – Continental Weather Defense
Substrate Type: ASTM C-1177 gypsum-based sheathing.
System Components Drawing: 10H.15
Miami-Dade County NOA File: 16-0418.08  (PDF)
Expiration Date: 08/11/2021


Sto Class PB Exterior Insulation and Finish System – S.M.I.

Maximum Design Pressure, psf: ± 125
Substrate Type: ASTM C-1177 gypsum-based sheathing.
System Components Drawing: 10H.02
Miami-Dade County NOA File: 12-0917.04  (PDF)
Expiration Date: 08/15/2017

StoTherm ci – LM180

10H.13_Sto HI-CM-180_EIFS
Maximum Design Pressure, psf: ± 180
Substrate Type: Minimum 8 inch CMU.
System Components Drawing: 10H.13
Miami-Dade County NOA File: 15-0226.03  (PDF)
Expiration Date: 05/21/2020

StoPowerwall® HI Wall Panel System

Maximum Design Pressure, psf: ± 90
Substrate Type: ASTM C-1177 gypsum-based sheathing.
System Components Drawing: 6H.01
Miami-Dade County NOA File: 15.0603.06  (PDF)
Expiration Date: 08/02/2017

Miami-Dade County Hurricane Impact Resistant Approved Systems
January 2014
Notes:

•  Maximum Design Pressure as defined by Florida Building Code testing protocols for HVHZ systems.
•  All systems listed above comply with the 2010 Florida Building Code.
